ED-2000 - Echo Engine Drill (Type 1) Engine, Crankcase, Cover Parts Diagram

Engine Drill (Type 1)

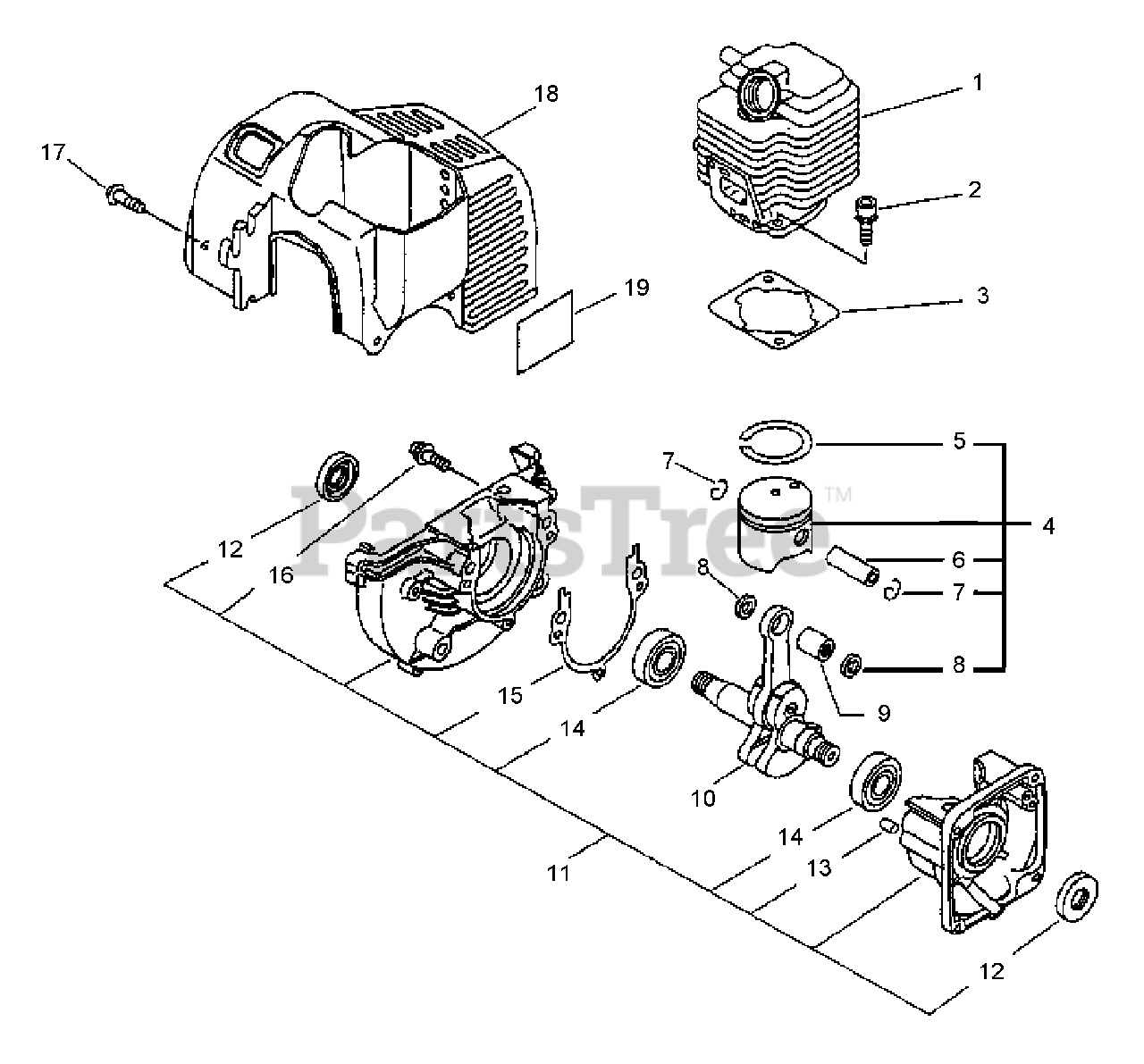

Engine, Crankcase, Cover Parts Diagram

  • Title

1

Echo 101011-45230

CYLINDER

$153.99

$

Usually ships in 2-4 days

0

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

3

Echo 101010-44332

GASKET, CYLINDER

Note: USE KIT P/N 88900044333

$4.99

$

Usually ships in 2-4 days

0

4

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: INCLUDES ITEMS 5 - 8

$78.99

$

Usually ships in 2-4 days

0

5

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

6

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

7

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

9

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

10

Echo 10010044331

CRANKSHAFT

$283.99

$

Usually ships in 2-4 days

0

11

Echo 10020451030

CRANKCASE KIT
(Superseded to 10020451031)

Note: Includes ITEMS 12-16

$157.99

$

Usually ships in 2-4 days

0

12

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, only 4 left!

0

13

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

14

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

15

GASKET, CRANKCASE

Note: USE KIT P/N 88900044333

$

$

Not available

16

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

17

Echo 900242-04016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

18

Echo 10151405560

COVER, ENGINE - ORANGE
(Superseded to 10151405561)

Note: S/N 001001 - 017940

$65.99

$

Usually ships in 2-4 days

0

18

Echo 10151409060

COVER, ENGINE - GRAY
(Superseded to 10151409061)

Note: S/N 017941 & UP

$43.99

$

Usually ships in 2-4 days

0

19

Echo 89011405560

LABEL, MODEL

$4.99

$

Usually ships in 2-4 days

0

Echo SB1000

SHORT BLOCK - SB1000
(Superseded to Discontinued)

$

$

Not available

Echo 88900044333

GASKET KIT

Note: RePower OPTION

$44.99

$

Usually ships in 2-4 days

0

Echo 101010-44332

GASKET, CYLINDER

Note: RePower OPTION

$4.99

$

Usually ships in 2-4 days

0

GASKET, CRANKCASE

Note: RePower OPTION

$

$

Not available

Echo 13001044431

GASKET, INTAKE

Note: RePower OPTION

$2.99

$

In Stock, Qty 8

0

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: RePower OPTION

$2.99

$

In Stock, Qty 12

0

Echo 145866-42031

GASKET, EXHAUST

Note: RePower OPTION

$2.99

$

In Stock, only 2 left!

0

Echo V104000160

GASKET, EXHAUST

Note: RePower OPTION

$2.49

$

In Stock, Qty 20+

0

Echo 14563142030

HEAT SHIELD, EXHAUST
(Superseded to A320000250)

Note: RePower OPTION

$5.99

$

In Stock, only 2 left!

0

Echo 90072000015

O-RING 15

Note: RePower OPTION

$2.49

$

In Stock, Qty 11

0
