ED-2000 - Echo Engine Drill (Type 1E) Intake, Air Filter, Exhaust, Handle, Stop Switch Parts Diagram

Engine Drill (Type 1E)

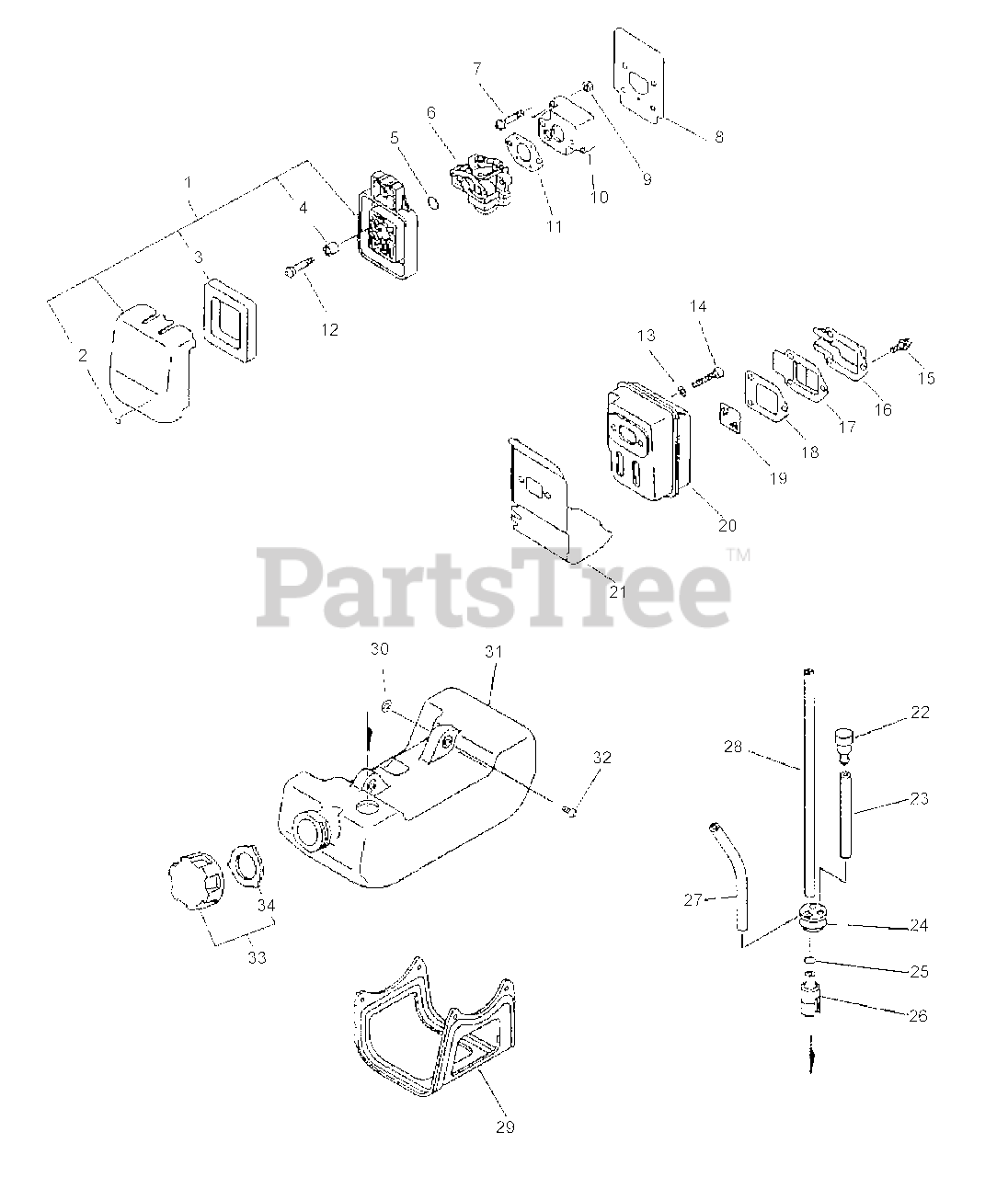

Intake, Air Filter, Exhaust, Handle, Stop Switch Parts Diagram

  • Title

1

Echo 13030020960

AIR CLEANER ASSY

Note: INCLUDES ITEMS 2 - 4

$32.99

$

In Stock, only 2 left!

0

2

Echo 89099120960

LABEL

$1.99

$

Usually ships in 2-4 days

0

3

Echo 13031044330

FILTER, AIR

$4.99

$

In Stock, Qty 10

0

4

Echo 13032744330

SLEEVE
(Superseded to Discontinued)

$

$

Not available

5

Echo 90072000015

O-RING - 15

$1.99

$

In Stock, Qty 20+

0

6

Echo 12300020960

CARBURETOR WYL-53
(Superseded to 12300020961)

$98.99

$

Usually ships in 2-4 days

0

7

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 17

0

8

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: INCLUDED IN KIT P/N 88900044432

$2.49

$

In Stock, Qty 20+

0

9

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 13001744330

INSULATOR, INTAKE
(Superseded to P021015350)

$4.49

$

In Stock, Qty 20+

0

11

Echo 13001044431

GASKET, INTAKE

Note: INCLUDED IN KIT P/N 88900044432

$2.49

$

In Stock, Qty 13

0

12

Echo 90024205064

SCREW - 5X64

$1.49

$

In Stock, Qty 10

0

13

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 20+

0

15

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

16

Echo 14586342030

GUIDE, EXHAUST
(Superseded to A313000041)

Note: S/N 001001 - 501000

$3.99

$

Usually ships in 2-4 days

0

16

Echo A313000040

GUIDE, EXHAUST - OUTER

Note: S/N 501001 & UP

$

$

Currently unavailable

17

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 9

0

18

Echo 14586642031

GASKET, EXHAUST

Note: S/N 001001 - 501000. INCLUDED IN KIT P/N 88900044432

$2.49

$

In Stock, Qty 20+

0

18

Echo V104000003

GASKET, EXHAUST

Note: S/N 501001 & UP. INCLUDED IN KIT P/N 88900044432

$2.99

$

In Stock, Qty 17

0

19

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

20

Echo 14585805560

MUFFLER
(Superseded to Discontinued)

$

$

Not available

21

Echo 14551044331

GASKET, EXHAUST

$9.99

$

Usually ships in 2-4 days

0

22

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

23

Echo 13131205560

PIPE - 3X5X30 -- BLACK

Note: RePower BULK OPTION: 90015

$2.99

$

In Stock, only 1 left!

0

24

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

25

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

26

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

27

Echo 13201256030

PIPE - 3X6X80 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

28

Echo 13201005560

PIPE - 3X5X160 -- BLACK

Note: RePower BULK OPTION: 90014

$8.49

$

Usually ships in 2-4 days

0

29

Echo 30511042030

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

30

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

31

Echo 13100546831

FUEL TANK ASSY

$15.99

$

In Stock, Qty 19

0

32

Echo 90024305016

SCREW - 5X16

$0.99

$

Usually ships in 2-4 days

0

33

Echo 13100455830

CAP ASSY
(Superseded to P200000830)

Note: Includes ITEM 34

$4.49

$

In Stock, Qty 5

0

34

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

Note: USE CAP/VENT KIT P/N 90010

$1.49

$

In Stock, Qty 20+

0

Echo 88900044432

GASKET KIT
(Superseded to 88900044434)

$29.99

$

Usually ships in 2-4 days

0

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

$

$

Not available
