ED1000 A (G200) - Honda Generator, Made in Japan (SN: G200-1000001 - G200-9999999) CARBURETOR Parts Diagram

Generator, Made in Japan

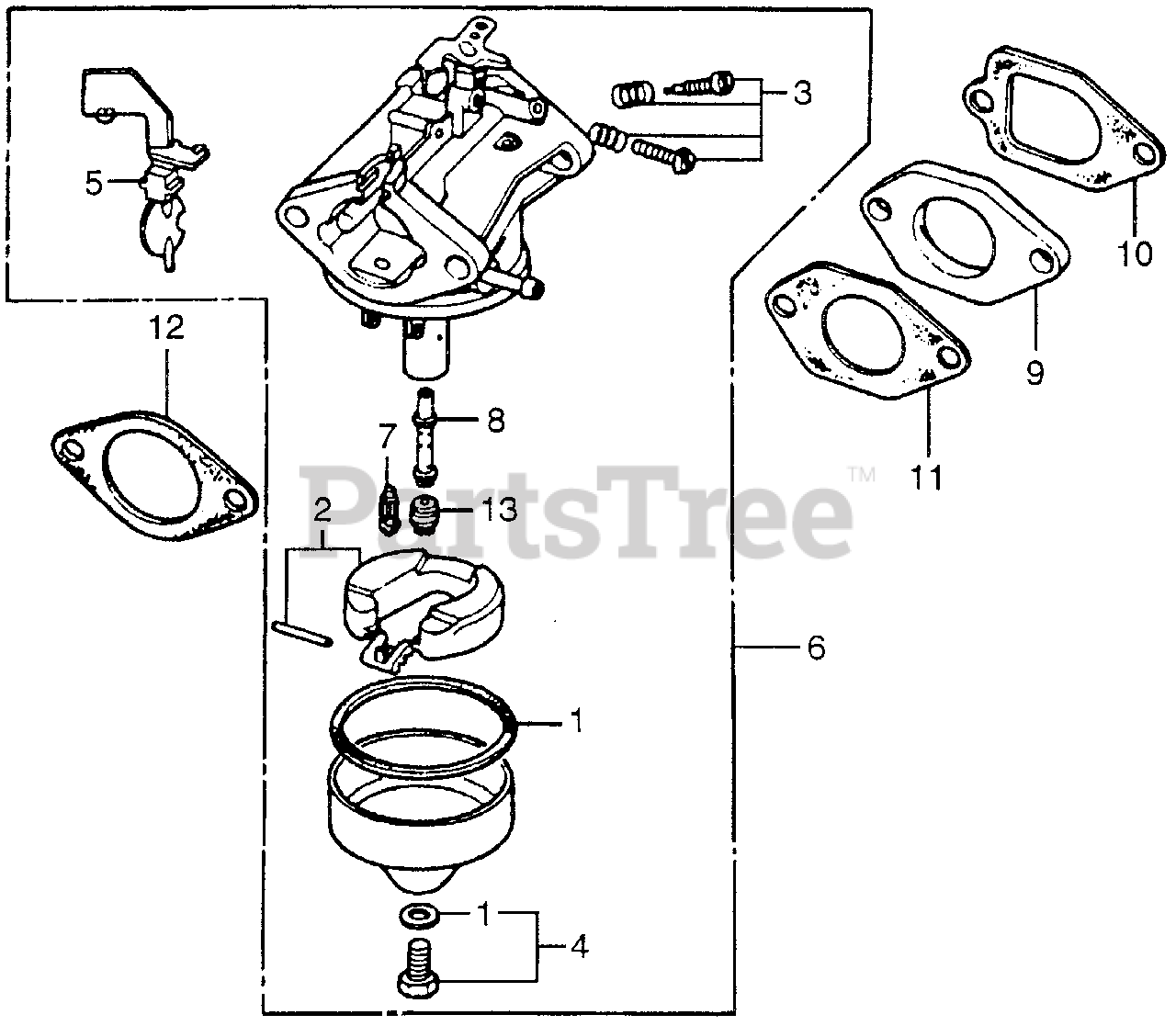

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

SEE PART DETAILS - PRI; GASKET SET

$14.99

$

In Stock, Qty 8

0

2

Honda 16013-883-005

FLOAT SET

$42.99

$

In Stock, only 2 left!

0

3

Honda 16016-148-610

SCREW SET A

$24.99

$

Usually ships in 3-6 days

0

4

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET B
(Superseded to 16028-ZK7-S91)

$14.99

$

In Stock, only 2 left!

0

5

Honda 16044-883-005

CHOKE SET

$

$

Not available

6

Honda 16100-883-095

SEE PART DETAILS - SUP; CARBURETOR ASSY.

$

$

Not available

7

Honda 16155-883-005

SEE PART DETAILS - PRI; VALVE, FLOAT

$29.99

$

In Stock, only 2 left!

0

8

Honda 16166-883-005

SEE PART DETAILS - PRI; NOZZLE, MAIN

$14.99

$

Usually ships in 3-6 days

0

9

Honda 16211-883-000

INSULATOR, CARBURETOR

$18.99

$

Usually ships in 3-6 days

0

10

Honda 16212-883-306

SEE PART DETAILS - SUP; GASKET, INSULATOR

$

$

Currently unavailable

10

Honda 16212-883-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

$2.99

$

In Stock, only 2 left!

0

11

Honda 16221-883-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-887-800)

$3.99

$

In Stock, Qty 20+

0

11

Honda 16221-887-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$3.99

$

In Stock, Qty 20+

0

12

Honda 16269-883-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER

$1.99

$

In Stock, only 4 left!

0

13

Honda 99101-124-0650

JET, MAIN (#65)

$14.99

$

Usually ships in 3-6 days

0

13

Honda 99101-124-0680

JET, MAIN (#68)

$12.99

$

In Stock, only 2 left!

0

13

Honda 99101-124-0700

JET, MAIN (#70)

$12.99

$

In Stock, only 2 left!

0

13

Honda 99101-124-0720

JET, MAIN (#72)

$12.99

$

Usually ships in 3-6 days

0
