ED1000 A (G200) - Honda Generator, Made in Japan (SN: G200-1000001 - G200-9999999) CONTROL BOX Parts Diagram

Generator, Made in Japan

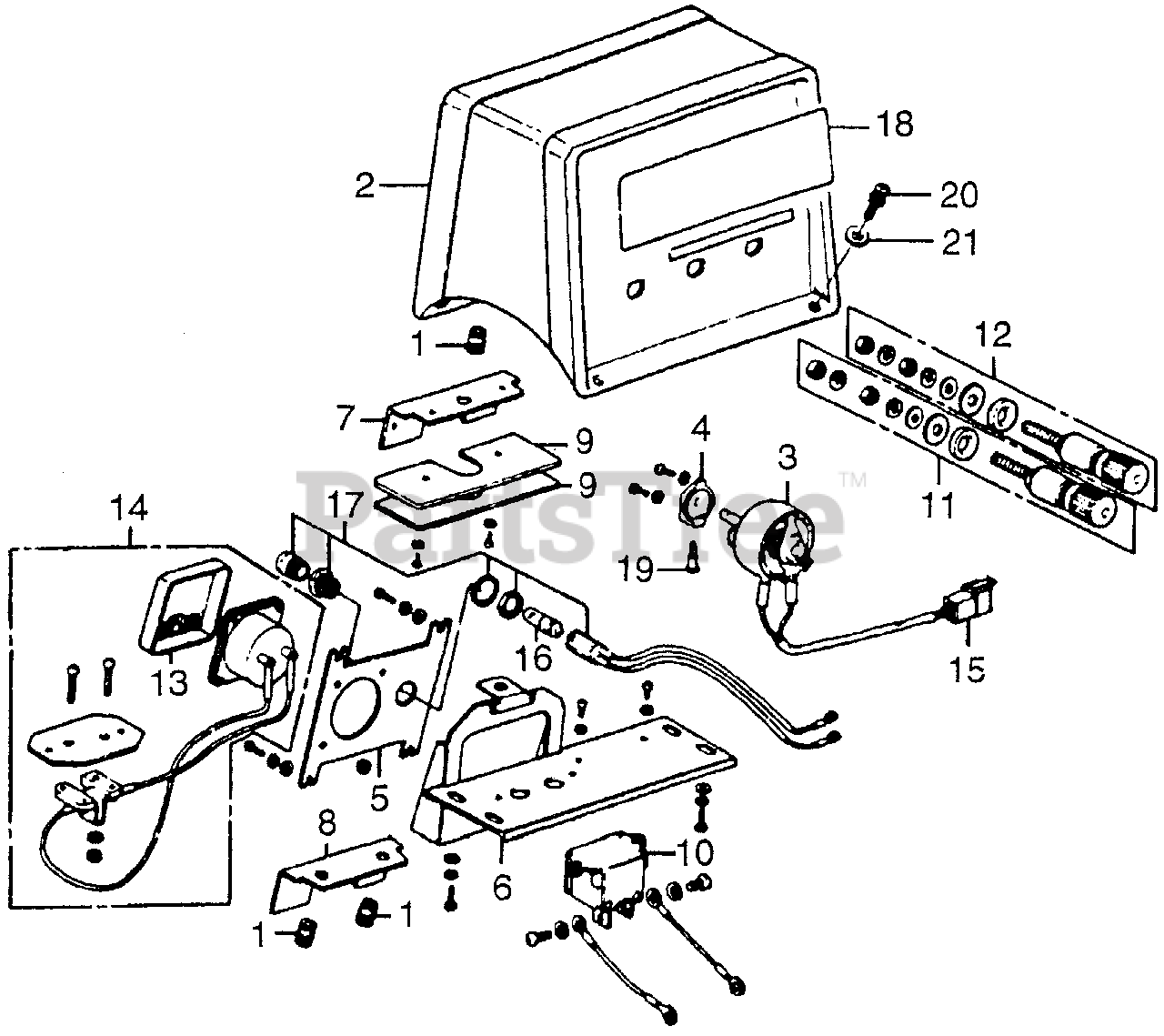

CONTROL BOX Parts Diagram

  • Title

1

Honda 31107-830-168

RUBBER, FRICTION (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 31402-872-761H

BOX, CONTROL *R8* (BRIGHT RED)

$

$

Not available

3

Honda 31406-872-761

RESISTOR, VARIABLE (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 31407-815-158

SEE PART DETAILS - PRI; KNOB, ADJUSTING

$

$

Not available

5

Honda 31420-842-158

PANEL, METER

$

$

Not available

6

Honda 31421-872-761

BASE ASSY., SETTING

$

$

Not available

7

Honda 31422-872-158

STAY A, RUBBER SETTING

$

$

Not available

8

Honda 31423-872-158

STAY B, RUBBER SETTING

$

$

Not available

9

Honda 31424-872-158

WEIGHT, RUBBER SETTING

$

$

Not available

10

Honda 31445-872-761

CONTROLLER, CURRENT

$

$

Not available

11

Honda 31468-842-158

TERMINAL A, D.C. (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 31469-842-158

TERMINAL B, D.C. (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 31499-846-158

LENS, METER

$

$

Not available

14

Honda 31511-852-158

VOLTMETER (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 32130-611-000

CONNECTOR, MALE (2 POLE)

$

$

Not available

16

Honda 34909-880-000

SEE PART DETAILS - PRI; BULB (24V2W)

$7.99

$

Usually ships in 3-6 days

0

17

Honda 37561-868-158

SOCKET ASSY., PILOT LAMP (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 87551-872-760

PLATE, CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 90191-815-168

BOLT, KNOB (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 93892-05016-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X16)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0
