ED1000 A (G200) - Honda Generator, Made in Japan (SN: G200-1000001 - G200-9999999) FUEL TANK Parts Diagram

Generator, Made in Japan

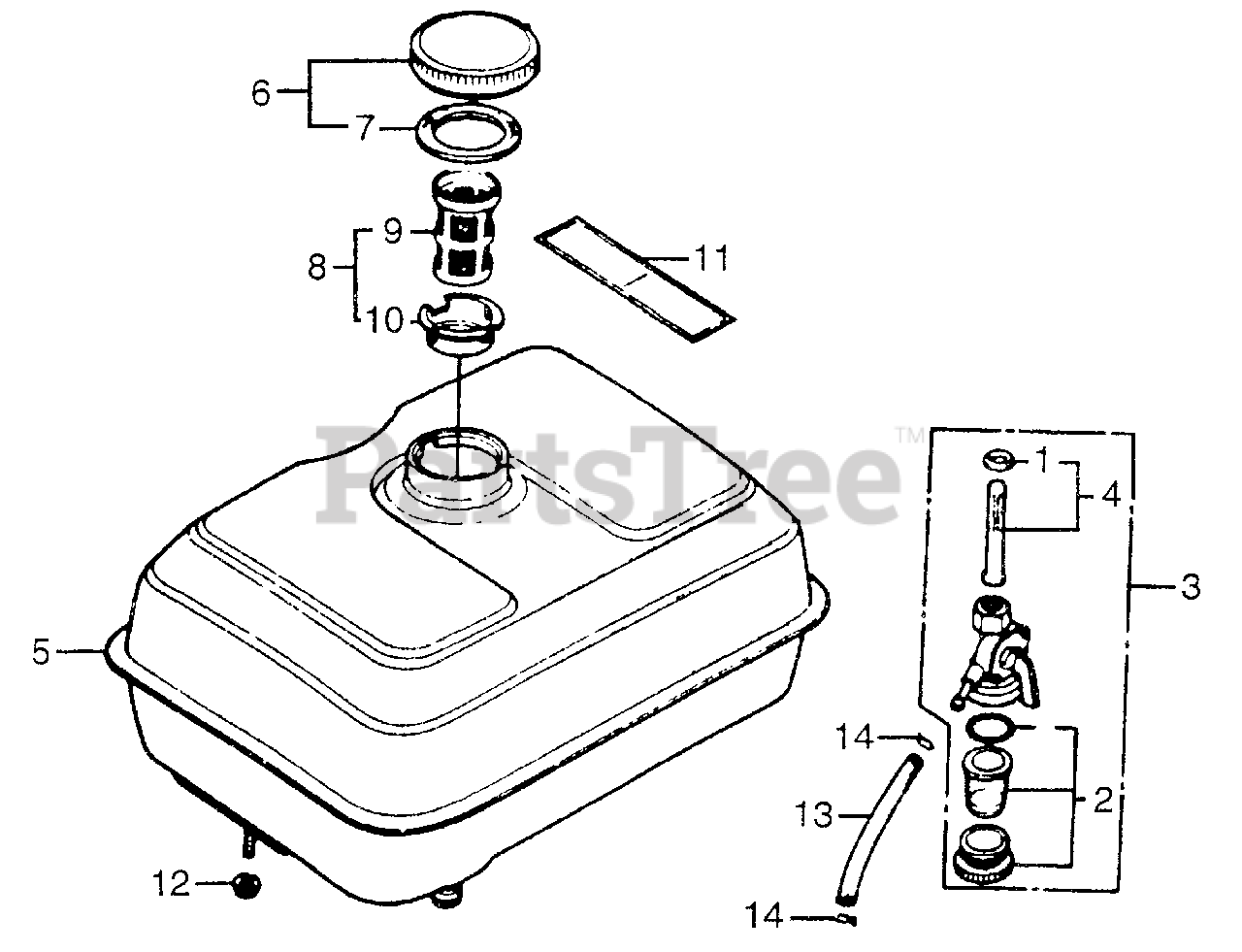

FUEL TANK Parts Diagram

  • Title

1

Honda 16080-883-005

GASKET SET, VALVE

$15.99

$

In Stock, only 2 left!

0

2

Honda 16081-883-015

SEE PART DETAILS - SUP; CUP SET, FUEL STRAINER
(Superseded to 16081-471-831)

$34.99

$

In Stock, only 2 left!

0

3

Honda 16950-883-035

SEE PART DETAILS - SUP; PETCOCK ASSY.

$

$

Currently unavailable

3

Honda 16950-883-045

SEE PART DETAILS - SUP; PETCOCK ASSY.
(Superseded to 16950-898-633)

$66.99

$

In Stock, only 1 left!

0

4

Honda 16952-883-005

SCREEN SET

$22.99

$

Usually ships in 3-6 days

0

5

Honda 06172-883-305XC

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE)

$

$

Not available

6

Honda 17620-102-730

SEE PART DETAILS - PRI; CAP, FUEL FILLER

$

$

Not available

7

Honda 17631-096-701

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-096-702)

$3.99

$

In Stock, only 1 left!

0

8

Honda 17670-883-000

FILTER, FUEL

$

$

Not available

9

Honda 17672-883-300

FILTER, FUEL

$

$

Not available

10

Honda 17673-883-300

SEE PART DETAILS - PRI; HOLDER, FUEL FILTER

$11.99

$

In Stock, only 4 left!

0

10

Honda 17673-883-310

SEE PART DETAILS - SUP; HOLDER, FUEL FILTER
(Superseded to 17673-883-300)

$11.99

$

In Stock, only 4 left!

0

11

Honda 87522-883-660

SEE PART DETAILS - PRI; MARK, CAUTION (ENGLISH/FRENCH)(SPANISH)

$5.99

$

In Stock, Qty 8

0

12

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 9

0

13

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X65)

$60.99

$

In Stock, only 4 left!

0

14

Honda 95002-02080

CLIP, TUBE (B8)

$2.99

$

In Stock, Qty 20+

0
