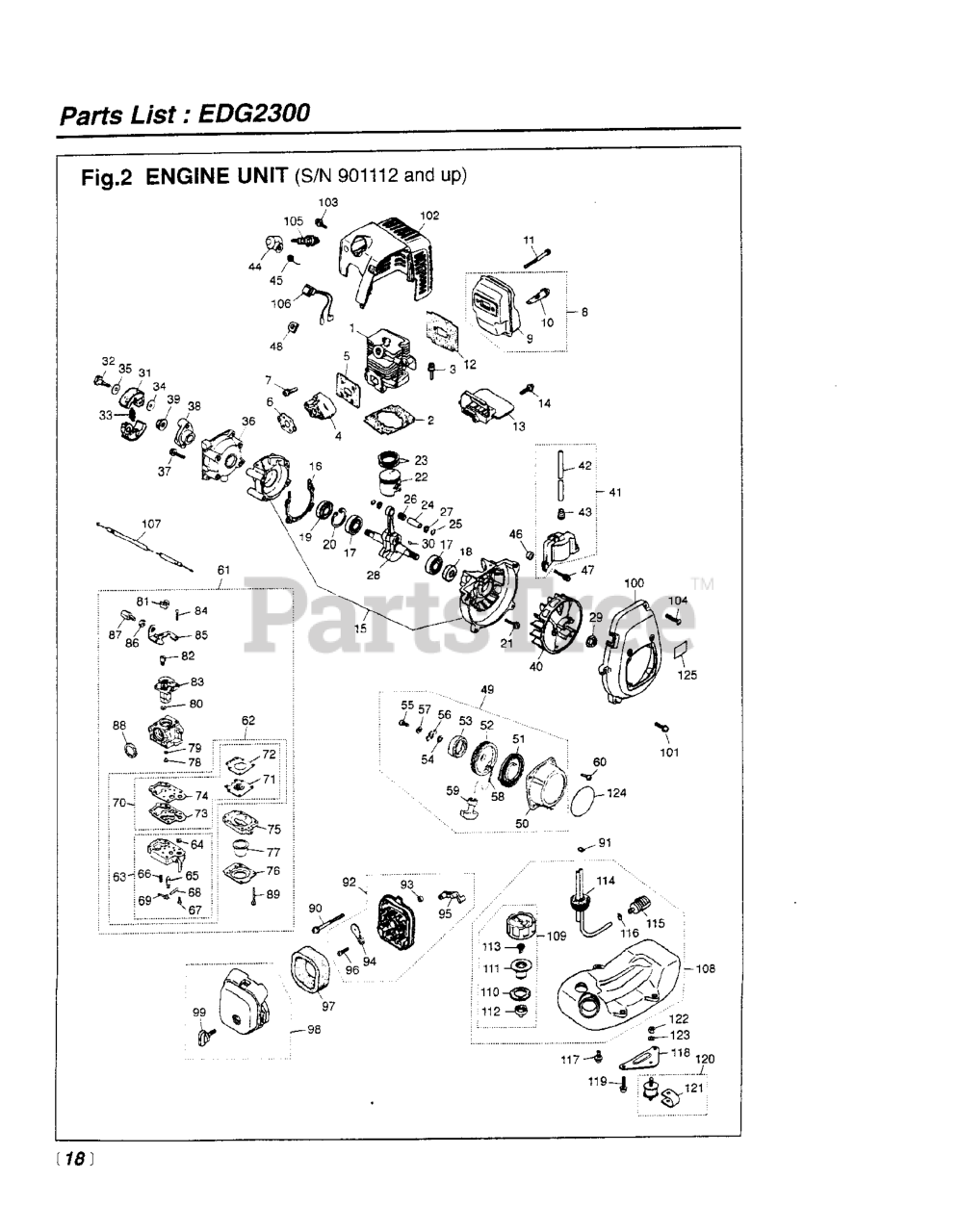

EDG 2300 - RedMax Engine Drill (SN: 901112 & Above) ENGINE Parts Diagram

Engine Drill

ENGINE Parts Diagram

  • Title

1

RedMax 515448301

CYLINDER

$34.99

$

Usually ships in 3-10 days

0

2

RedMax 515408801

GASKET

$3.99

$

Usually ships in 3-10 days

0

3

RedMax 513412501

BOLT

$3.99

$

Usually ships in 3-10 days

0

4

RedMax 515410201

INSULATOR

$

$

Not available

5

RedMax 515408901

$

$

Not available

6

RedMax 515409901

GASKET

$4.99

$

In Stock, only 2 left!

0

7

RedMax 510482301

SCREW

$3.99

$

Usually ships in 3-10 days

0

8

RedMax 521377601

MUFFLER ASSEMBLY

Note: . 9 10

$66.99

$

Usually ships in 3-10 days

0

9

RedMax 521377701

MUFFLER

$

$

Not available

10

RedMax 513351501

ARRESTER

$10.99

$

Usually ships in 3-10 days

0

11

RedMax 516071401

BOLT, M5 x 50 (RPLS 125230550)

$3.99

$

Usually ships in 3-10 days

0

12

RedMax 515411401

GASKET

$

$

Not available

13

RedMax 515443701

PLATE

$

$

Not available

14

RedMax 510481601

SCREW

$4.99

$

Usually ships in 3-10 days

0

15

RedMax 515443801

CRANKCASE-C

$145.99

$

Usually ships in 3-10 days

0

16

RedMax 515412401

GASKET

$3.99

$

Usually ships in 3-10 days

0

17

RedMax 506610301

BEARING

$12.99

$

In Stock, Qty 8

0

18

RedMax 513488701

SEAL

$4.99

$

Usually ships in 3-10 days

0

19

RedMax 506612901

SEAL
(Superseded to 516539201)

$6.49

$

In Stock, only 2 left!

0

20

RedMax 506609901

RING

$4.99

$

In Stock, only 1 left!

0

21

RedMax 506609401

BOLT

$3.99

$

Usually ships in 3-10 days

0

22

RedMax 515444401

PISTON

$27.99

$

Usually ships in 3-10 days

0

23

RedMax 513175201

RING
(Superseded to 510917501)

$6.49

$

In Stock, Qty 18

0

24

RedMax 513179501

PIN.PISTON

$6.49

$

Usually ships in 3-10 days

0

25

RedMax 505045201

RING

$4.99

$

In Stock, Qty 20+

0

26

RedMax 505040901

BEARING

$9.99

$

In Stock, only 2 left!

0

27

RedMax 505041001

WASHER

$4.99

$

In Stock, only 3 left!

0

28

RedMax 521373801

CRANKSHAFT (RPLS 560042000)

$

$

Not available

29

RedMax 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

30

RedMax 506689401

KEY
(Superseded to 516147801)

$4.99

$

In Stock, Qty 9

0

31

RedMax 513189401

SHOE

$

$

Not available

32

RedMax 513189601

SCREW

$4.99

$

In Stock, Qty 10

0

33

RedMax 513452601

SPRING

$3.99

$

Usually ships in 3-10 days

0

34

RedMax 505054401

WASHER

$4.99

$

In Stock, only 2 left!

0

35

RedMax 506613801

WASHER

$6.49

$

Usually ships in 3-10 days

0

36

RedMax 513187701

$

$

Not available

37

RedMax 510482201

SCREW

$3.99

$

Usually ships in 3-10 days

0

38

RedMax 515444801

PLATE

$12.99

$

Usually ships in 3-10 days

0

39

RedMax 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

40

RedMax 515447001

ROTOR

$

$

Not available

41

RedMax 515445001

COIL-A

Note: . 42 43

$78.99

$

Usually ships in 3-10 days

0

42

RedMax 515445201

CORD

$2.49

$

Usually ships in 3-10 days

0

43

RedMax 505042801

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

44

RedMax 505298801

CAP

$7.49

$

In Stock, Qty 5

0

45

RedMax 505298901

SPRING

$4.99

$

In Stock, only 4 left!

0

46

RedMax 504118601

SPACER
(Superseded to 516258101)

$4.99

$

In Stock, only 2 left!

0

47

RedMax 514186801

BOLT

$3.99

$

Usually ships in 3-10 days

0

48

RedMax 515415301

GROMMET
(Superseded to 521358801)

$3.99

$

Usually ships in 3-10 days

0

49

RedMax 515506501

RECOIL-A

Note: . 50 51 52 53-59

$53.99

$

In Stock, only 2 left!

0

50

RedMax 521400001

CASE, RECOIL
(Superseded to 515506601)

$

$

Not available

51

RedMax 515506701

SPRING.SPIRAL

$14.99

$

Usually ships in 3-10 days

0

52

RedMax 515506901

REEL

$

$

Not available

53

RedMax 515507101

RATCHET

$

$

Not available

54

RedMax 515507201

OBSOLETE - SPRING.BREAK

$1.11

$

Usually ships in 3-10 days

0

55

RedMax 515507701

$

$

Not available

56

RedMax 515507301

OBSOLETE - RETAINER

$2.23

$

Usually ships in 3-10 days

0

57

RedMax 515507401

OBSOLETE - WASHER

$1.11

$

Usually ships in 3-10 days

0

58

RedMax 513424801

$

$

Not available

59

RedMax 513295701

OBSOLETE - KNOB

$

$

Not available

60

RedMax 510481401

SCREW

$3.49

$

Usually ships in 3-10 days

0

61

RedMax 515421101

CARBURETOR WYJ-113-1
(Superseded to 521364801)

Note: . 62 63 64 65-75 76-89

$121.99

$

Usually ships in 3-10 days

0

62

RedMax 515448201

REBUILD KIT

$102.85

$

Usually ships in 3-10 days

0

63

RedMax 502238401

CARBURETOR BODY

Note: . 64 65 66 67-69

$53.99

$

In Stock, Qty 5

0

64

RedMax TBD

$

$

Not available

65

RedMax TBD

$

$

Not available

67

RedMax TBD

$

$

Not available

68

RedMax TBD

$

$

Not available

69

RedMax TBD

$

$

Not available

70

RedMax 515448101

GASKET KIT

Note: . 71 72 73 74

$30.99

$

Usually ships in 3-10 days

0

71

RedMax TBD

$

$

Not available

72

RedMax TBD

$

$

Not available

73

RedMax TBD

$

$

Not available

74

RedMax TBD

$

$

Not available

75

RedMax 506740901

BODY

$34.99

$

In Stock, only 1 left!

0

76

RedMax 506741001

1OVER
(Superseded to 516543901)

$6.49

$

In Stock, Qty 12

0

77

RedMax 505306701

PUMP

$8.99

$

In Stock, Qty 20+

0

78

RedMax 515416701

JET

$

$

Not available

79

RedMax 505307501

O-RING

$6.49

$

In Stock, only 4 left!

0

80

RedMax 506738601

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

81

RedMax 506746101

WASHER
(Superseded to 521360401)

$0.99

$

Usually ships in 3-10 days

0

82

RedMax 506741201

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

83

RedMax TBD

Note: 550181153

$

$

Not available

84

RedMax 505307901

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

85

RedMax 506746001

BRACKET
(Superseded to 521359901)

$12.99

$

Usually ships in 3-10 days

0

86

RedMax 506612601

NUT
(Superseded to 510487401)

$4.99

$

In Stock, only 4 left!

0

87

RedMax 506741301

ADJUSTER
(Superseded to 521756001)

$7.49

$

Usually ships in 3-10 days

0

88

RedMax 505308401

RING PACKING

$4.99

$

Usually ships in 3-10 days

0

89

RedMax 506741101

SCREW

$4.99

$

In Stock, only 3 left!

0

90

RedMax 510483101

SCREW

$3.99

$

Usually ships in 3-10 days

0

91

RedMax 506741501

CLIP
(Superseded to 513178901)

$4.99

$

In Stock, only 1 left!

0

92

RedMax 515416901

BODY-A

Note: . 93 94 95 96

$24.99

$

In Stock, only 1 left!

0

93

RedMax 513454901

SLEEVE

$4.99

$

Usually ships in 3-10 days

0

94

RedMax 515417101

PLATE.CHOKE

$

$

Not available

95

RedMax 515417201

LEVER

$

$

Not available

96

RedMax 506614001

SCREW
(Superseded to 516771801)

$3.99

$

In Stock, only 4 left!

0

97

RedMax 515417301

ELEMENT

$4.99

$

In Stock, Qty 20+

0

98

RedMax 515446301

COVER-A

Note: . 99

$9.99

$

In Stock, only 1 left!

0

99

RedMax 504115101

KNOB

$4.99

$

In Stock, Qty 9

0

100

RedMax 515444001

COVER.FAN

$

$

Not available

101

RedMax 510482301

SCREW

$3.99

$

Usually ships in 3-10 days

0

102

RedMax 515444301

COVER-A

$

$

Not available

103

RedMax 513415101

SCREW

$

$

Not available

104

RedMax 513442301

OBSOLETE - SCREW

$1.11

$

Usually ships in 3-10 days

0

105

RedMax 521231201

OBSOLETE - SPARK PLUG
(Superseded to 514441301)

$18.99

$

Usually ships in 3-10 days

0

106

RedMax 515445401

$

$

Not available

107

RedMax 515441401

$

$

Not available

108

RedMax 515452801

TANK-A

Note: . 109 110 111 112-116

$

$

Not available

109

RedMax 515452901

CAP-A

$18.99

$

Usually ships in 3-10 days

0

110

RedMax 515418301

PACKING

$3.99

$

In Stock, only 1 left!

0

111

RedMax 515447801

HOLDER-A

$11.99

$

Usually ships in 3-10 days

0

112

RedMax 506746801

FILTER

$6.49

$

In Stock, only 2 left!

0

113

RedMax 506745801

STOPPER

$4.99

$

In Stock, Qty 5

0

114

RedMax 515418401

PIPE COMPLETE
(Superseded to 579138309)

$27.99

$

Usually ships in 3-10 days

0

115

RedMax 515418501

FILTER

$9.99

$

In Stock, Qty 6

0

116

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, Qty 12

0

117

RedMax 515418701

SCREW

$6.49

$

In Stock, only 1 left!

0

118

RedMax 515461901

PLATE

$

$

Not available

119

RedMax 510482301

SCREW

$3.99

$

Usually ships in 3-10 days

0

120

RedMax 574004501

JOINT COMP

Note: . 121

$

$

Not available

121

RedMax 513405801

BAND

$4.99

$

Usually ships in 3-10 days

0

122

RedMax 505172301

NUT

$4.99

$

In Stock, only 2 left!

0

123

RedMax 516076301

WASHER, SPRING M4 x 1.3

$3.99

$

Usually ships in 3-10 days

0

124

RedMax 515462301

$

$

Not available

125

RedMax 515421601

$

$

Not available
