EDR-210 - Echo Reversible Engine Drill (SN: 07001001 - 07999999) Carburetor -- WYL-180A Parts Diagram

Reversible Engine Drill

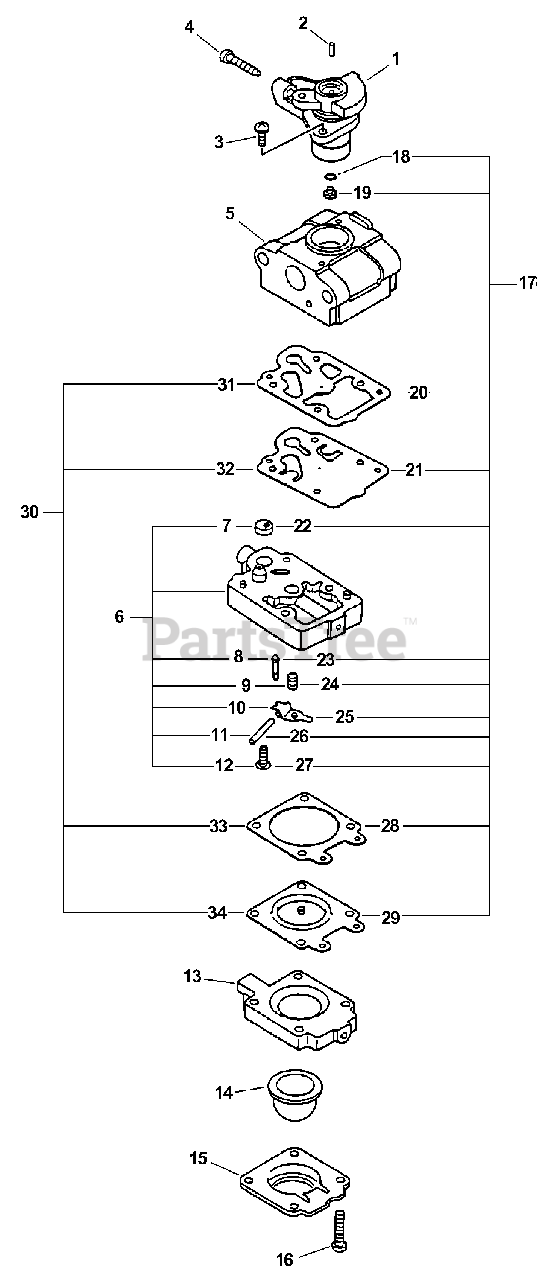

Carburetor -- WYL-180A Parts Diagram

  • Title

Echo A021000541

CARBURETOR WYL-180A

$117.99

$

In Stock, only 2 left!

0

1

------------------

THROTTLE VALVE ASSY

$

$

Not available

2

Echo A259000000

CAP, LIMITER

$0.99

$

Usually ships in 2-4 days

0

3

Echo 12311444330

SCREW

$0.99

$

Usually ships in 2-4 days

0

4

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

5

------------------

BODY, CARBURETOR

$

$

Not available

6

Echo 12317905560

BASE, PURGE

Note: INCLUDES ITEMS 7-12

$20.99

$

In Stock, only 1 left!

0

7

------------------

STRAINER

$

$

Not available

8

------------------

VALVE, INLET NEEDLE

$

$

Not available

9

------------------

SPRING, METERING LEVER

$

$

Not available

10

------------------

LEVER, METERING

$

$

Not available

11

------------------

PIN, METERING LEVER

$

$

Not available

12

------------------

SCREW, METERING LEVER PIN

$

$

Not available

13

Echo 12318005560

PURGE BASE ASSY

$8.99

$

In Stock, Qty 6

0

14

Echo 12318140630

BULB, PURGE

$6.49

$

In Stock, Qty 20+

0

15

Echo 12314205560

RETAINER, PURGE BULB

$5.49

$

In Stock, only 3 left!

0

16

Echo 12311005560

SCREW, PUMP COVER

$2.99

$

In Stock, Qty 20+

0

17

Echo P003001320

REPAIR KIT

Note: INCLUDES ITEMS 18-29

$19.99

$

Usually ships in 2-4 days

0

18

------------------

O-RING

$

$

Not available

19

------------------

JET

$

$

Not available

20

------------------

GASKET, PUMP

$

$

Not available

21

------------------

DIAPHRAGM, PUMP

$

$

Not available

22

------------------

STRAINER

$

$

Not available

23

------------------

VALVE, INLET NEEDLE

$

$

Not available

24

------------------

SPRING, METERING LEVER

$

$

Not available

25

------------------

LEVER, METERING

$

$

Not available

26

------------------

PIN, METERING LEVER

$

$

Not available

27

------------------

SCREW, METERING LEVER PIN

$

$

Not available

28

------------------

GASKET, DIAPHRAGM

$

$

Not available

29

------------------

DIAPHRAGM, METERING

$

$

Not available

30

Echo P003001310

DIAPHRAGM/GASKET KIT

Note: INCLUDES ITEMS 31-34

$8.49

$

In Stock, only 1 left!

0

31

------------------

GASKET, PUMP

$

$

Not available

32

------------------

DIAPHRAGM, PUMP

$

$

Not available

33

------------------

GASKET, DIAPHRAGM

$

$

Not available

34

------------------

DIAPHRAGM, METERING

$

$

Not available
