EDR-210 - Echo Reversible Engine Drill (SN: 07001001 - 07999999) Chuck, Gear Case, Handle, Tools Parts Diagram

Reversible Engine Drill

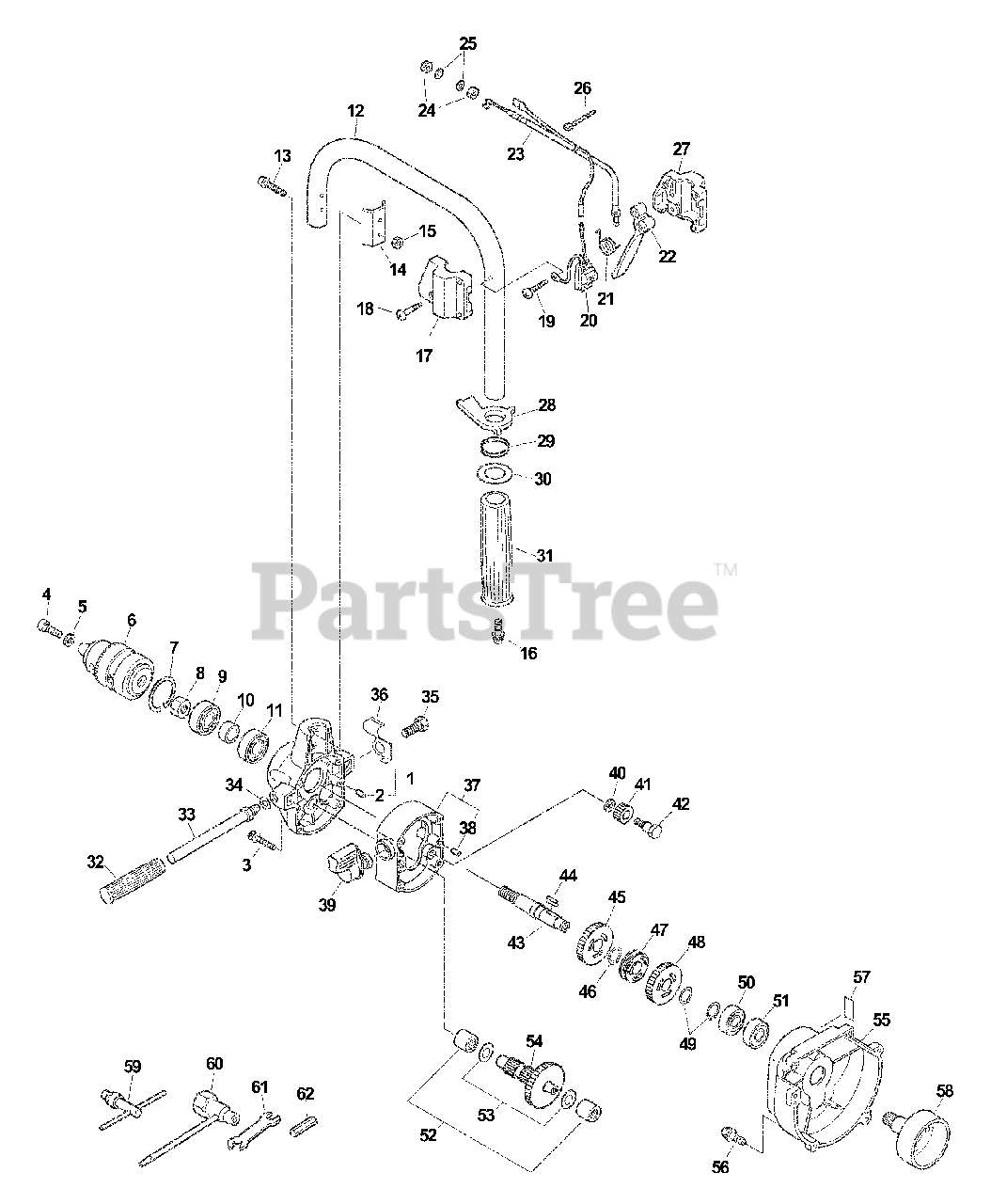

Chuck, Gear Case, Handle, Tools Parts Diagram

  • Title

1

Echo 60430520960

HOUSING, GEAR CASE

Note: Includes ITEM 2

$101.99

$

Usually ships in 2-4 days

0

2

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

3

Echo 90016205050

BOLT 5×50

$2.49

$

In Stock, Qty 7

0

4

Echo 90010506020

BOLT 6×20

$1.49

$

In Stock, Qty 20+

0

5

Echo 17501404630

WASHER 6

$2.49

$

In Stock, Qty 20+

0

6

Echo 60405105560

CHUCK, KEYED

$164.99

$

In Stock, Qty 6

0

7

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

8

Echo 22431920960

NUT, 12

$17.99

$

Usually ships in 2-4 days

0

9

Echo 90080206002

BEARING, BALL 6002 DDU

$19.99

$

In Stock, only 2 left!

0

10

Echo 60404405560

COLLAR

$4.99

$

Usually ships in 2-4 days

0

11

Echo 90080036002

BEARING, BALL 6002

$17.99

$

Usually ships in 2-4 days

0

12

Echo 35130520960

HANDLE

$100.99

$

In Stock, only 2 left!

0

13

Echo 90016205035

BOLT M5×35

$1.99

$

In Stock, Qty 16

0

14

Echo 35164105560

PLATE

$6.99

$

Usually ships in 2-4 days

0

15

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

16

Echo 900242-05016

SCREW 5×16

$0.99

$

In Stock, only 4 left!

0

17

Echo 17805201260

BRACKET, THROTTLE CONTROL - LEFT
(Superseded to 17805201261)

$4.99

$

In Stock, only 2 left!

0

18

Echo 90024504025

SCREW 4×25

$0.99

$

Usually ships in 2-4 days

0

19

Echo 90024504030

SCREW 4×30

$0.99

$

In Stock, only 4 left!

0

20

Echo 16340004460

SWITCH, ON-OFF

$12.99

$

In Stock, only 2 left!

0

21

Echo 17804301260

SPRING, THROTTLE RETURN

$1.49

$

In Stock, only 3 left!

0

22

Echo 17801007660

CONTROL, THROTTLE

$5.49

$

In Stock, only 2 left!

0

23

Echo 17810009060

CONTROL CABLE ASSY
(Superseded to 17810009061)

$16.99

$

In Stock, Qty 7

0

24

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

25

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

26

Echo 17812156030

TIE, CABLE

$2.99

$

Usually ships in 2-4 days

0

27

Echo 17802401260

BRACKET, THROTTLE CONTROL - RIGHT
(Superseded to 17802401261)

$4.99

$

In Stock, only 2 left!

0

28

Echo 17801202061

LOCKOUT, THROTTLE

$6.49

$

Usually ships in 2-4 days

0

29

Echo 17801302060

SPRING, THROTTLE LOCKOUT

$2.99

$

Usually ships in 2-4 days

0

30

Echo 17807002061

SPACER

$1.99

$

In Stock, only 3 left!

0

31

Echo 35131527931

GRIP, HANDLE

$6.49

$

In Stock, only 2 left!

0

32

Echo 35151522330

GRIP
(Superseded to 35131128330)

$7.99

$

In Stock, Qty 9

0

33

Echo 35121005560

HANDLE, LEFT

$25.99

$

In Stock, only 4 left!

0

34

Echo 900600-00010

WASHER 10.5×18×1.6

$0.99

$

In Stock, Qty 9

0

35

Echo 90010010015

BOLT 10×1.5×15

$1.49

$

In Stock, only 2 left!

0

36

Echo 89757505560

HOLDER, CHUCK KEY

$8.49

$

In Stock, only 2 left!

0

37

Echo 60430620960

CASE, GEAR

Note: Includes ITEM 38

$76.99

$

Usually ships in 2-4 days

0

38

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

39

Echo 70300520960

LEVER, CLUTCH

$57.99

$

In Stock, only 2 left!

0

40

Echo 17501404630

WASHER 6

$2.49

$

In Stock, Qty 20+

0

41

Echo 60531120960

GEAR, SPUR

$30.99

$

Usually ships in 2-4 days

0

42

Echo 17504622332

BOLT, CLUTCH

$3.99

$

Usually ships in 2-4 days

0

43

Echo 60602120960

SHAFT, AXLE

$91.99

$

In Stock, only 2 left!

0

44

Echo 90032504016

KEY, WOODRUFF 4×16

$3.49

$

In Stock, Qty 9

0

45

Echo 60421320960

GEAR, SPUR

$59.99

$

In Stock, only 4 left!

0

46

Echo 90070100015

RING, RETAINING 15

$1.49

$

In Stock, only 2 left!

0

47

Echo 60423520960

NAIL, CLUTCH

$54.99

$

In Stock, only 1 left!

0

48

Echo 60422420960

GEAR, SPUR

$59.99

$

In Stock, only 2 left!

0

49

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

50

Echo 90080006001

BEARING, BALL 6001
(Superseded to 90080036001)

$11.99

$

In Stock, Qty 9

0

51

Echo 90080106001

BEARING, BALL 6001
(Superseded to 90080206001)

$11.99

$

In Stock, only 2 left!

0

52

Echo 60422105560

BEARING, NEEDLE

$11.99

$

In Stock, only 2 left!

0

53

Echo 60422305560

WASHER

$3.99

$

Usually ships in 2-4 days

0

54

Echo 60420620961

GEAR, SHAFT

$83.99

$

In Stock, only 3 left!

0

55

Echo 10151120960

COVER, FAN

$79.99

$

Usually ships in 2-4 days

0

56

Echo 900242-04016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

57

Echo 89019405560

LABEL, CAUTION
(Superseded to 89016006361)

$2.49

$

In Stock, only 1 left!

0

58

Echo 17500505560

DRUM, CLUTCH

$71.99

$

Usually ships in 2-4 days

0

59

Echo 89757005560

KEY, CHUCK

$22.99

$

In Stock, only 3 left!

0

60

Echo 89541039131

T-WRENCH 10×19 MM
(Superseded to 89541039132)

$4.49

$

In Stock, only 4 left!

0

61

Echo 89512220960

SPANNER 17×19

$21.99

$

Usually ships in 2-4 days

0

62

Echo 89541220960

BAR, HEX

$18.99

$

Usually ships in 2-4 days

0
