EDR-210 - Echo Reversible Engine Drill (SN: E52313001001 - E52313999999) Fuel System Parts Diagram

Reversible Engine Drill

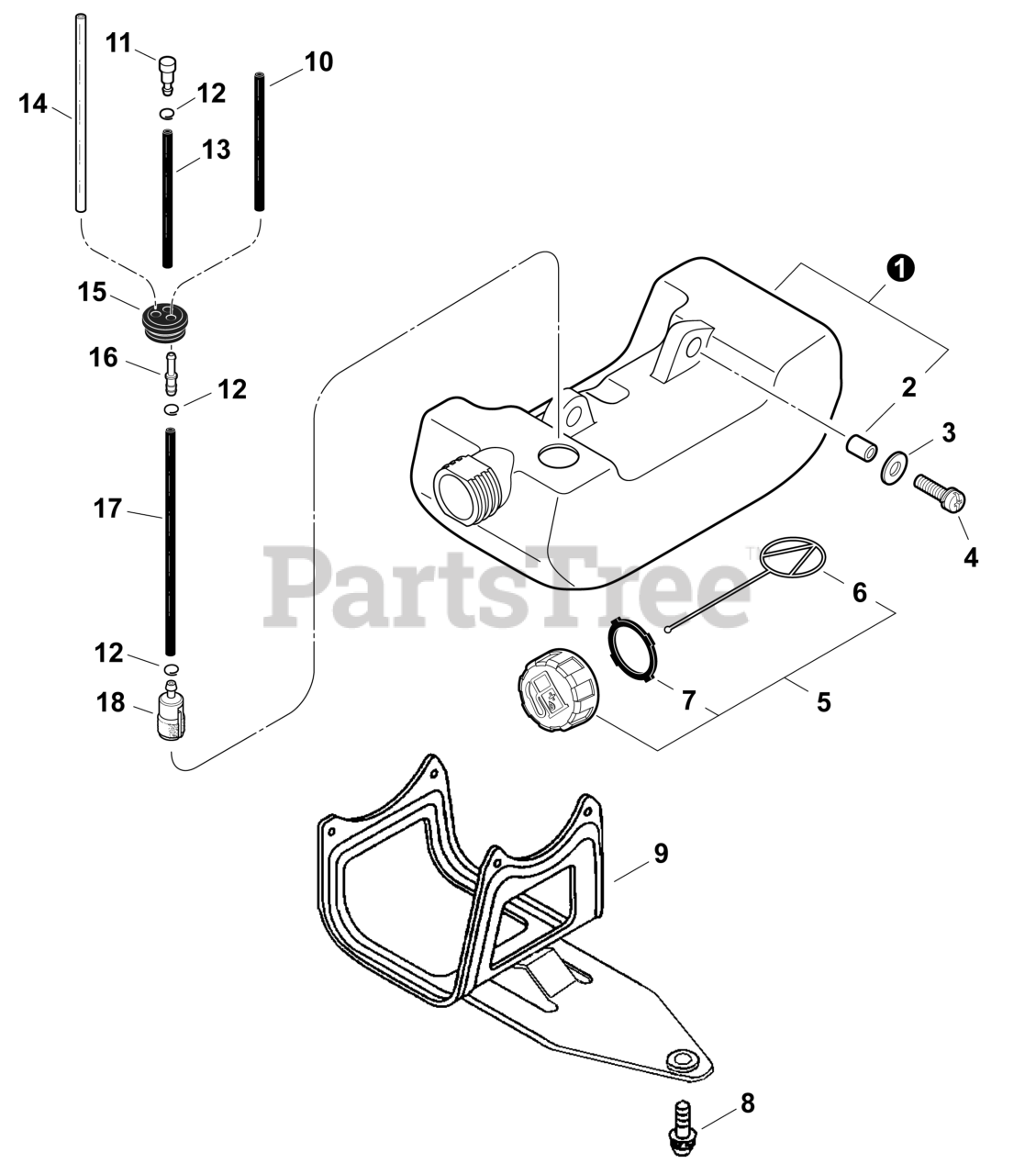

Fuel System Parts Diagram

  • Title

1

Echo A350002080

TANK, FUEL

Note: Includes Item 2

$18.99

$

Usually ships in 2-4 days

0

2

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

3

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo 90024305016

SCREW 5×16

$0.99

$

Usually ships in 2-4 days

0

5

Echo 13100408960

CAP ASSY, FUEL
(Superseded to P100006620)

Note: Includes Items 6-7

$8.99

$

Usually ships in 2-4 days

0

6

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

7

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, only 2 left!

0

8

Echo 90024205016

SCREW 5×16

$0.99

$

In Stock, only 4 left!

0

9

Echo A175000000

STAND

$44.99

$

Usually ships in 2-4 days

0

10

Echo V471003710

PIPE, FUEL - 3×5×67 - BLACK
(Superseded to V471005600)

$3.49

$

In Stock, only 2 left!

0

11

Echo 13130056431

VENT ASSY

$8.99

$

In Stock, Qty 7

0

12

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, only 3 left!

0

13

Echo 13131205560

PIPE, VENT

$3.49

$

In Stock, only 2 left!

0

14

Echo 13201256030

PIPE, FUEL 3×6×80 YELLOW

$3.49

$

In Stock, Qty 20+

0

15

Echo 13211546730

GROMMET, FUEL Ø5

$2.49

$

In Stock, Qty 20+

0

16

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

17

Echo 13201052830

PIPE 3×5×110
(Superseded to Discontinued)

$

$

Not available

18

Echo A369000480

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0
