EDR-210 - Echo Reversible Engine Drill (SN: E52313001001 - E52313999999) Fuel System Parts Diagram

Reversible Engine Drill

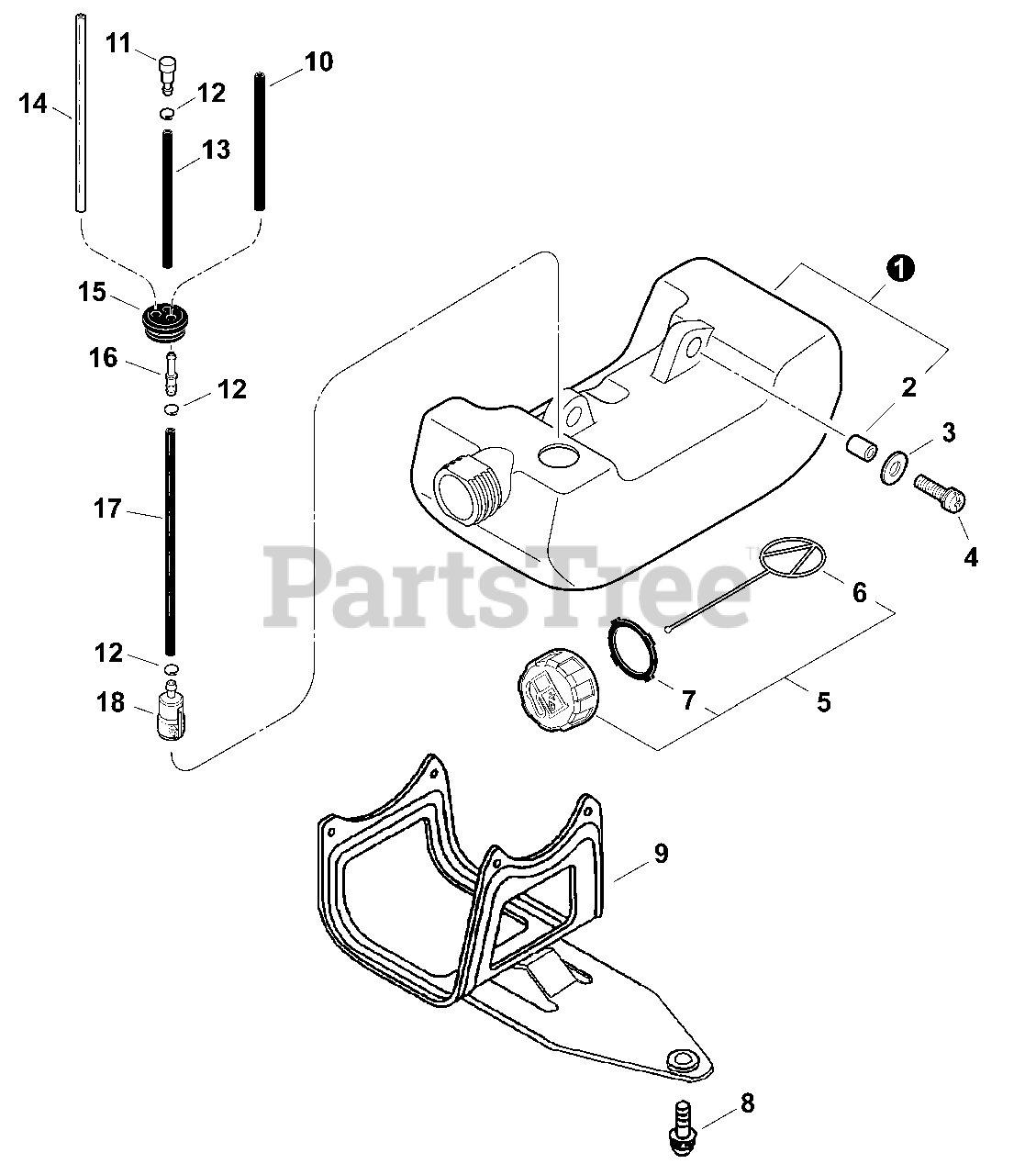

Fuel System Parts Diagram

  • Title

1

Echo A350002080

TANK, FUEL

Note: Includes Item 2

$18.99

$

Usually ships in 2-4 days

0

2

Echo 13104528230

SLEEVE

$1.99

$

In Stock, Qty 20+

0

3

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 90024305016

SCREW - 5×16

$0.99

$

Usually ships in 2-4 days

0

5

Echo 13100408960

CAP ASY
(Superseded to P100006620)

Note: Includes Items 6-7

$8.99

$

Usually ships in 2-4 days

0

6

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, only 4 left!

0

7

Echo V107000150

GASKET

$4.99

$

In Stock, Qty 20+

0

8

Echo 90024205016

SCREW - 5×16

$0.99

$

In Stock, Qty 13

0

9

Echo A175000000

STAND

$44.99

$

Usually ships in 2-4 days

0

10

Echo V471003710

PIPE - 3×5×67
(Superseded to V471005600)

$3.49

$

In Stock, only 3 left!

0

11

Echo 13130056431

VENT ASY

$8.99

$

In Stock, Qty 20+

0

12

Echo V490001240

CLIP

$0.99

$

In Stock, Qty 20+

0

13

Echo 13131205560

PIPE, VENT - 3×5×30

$3.49

$

In Stock, only 2 left!

0

14

Echo 13201256030

PIPE, RETURN - 3×6×80

$3.49

$

In Stock, Qty 9

0

15

Echo 13211546730

GROMMET, FUEL

$2.49

$

In Stock, Qty 20+

0

16

Echo V186000520

CONNECTOR, FUEL PIPE

$0.99

$

In Stock, Qty 20+

0

17

Echo 13201052830

PIPE - 3×5×110 -- BLACK
(Superseded to Discontinued)

$

$

Not available

18

Echo A369000480

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0
