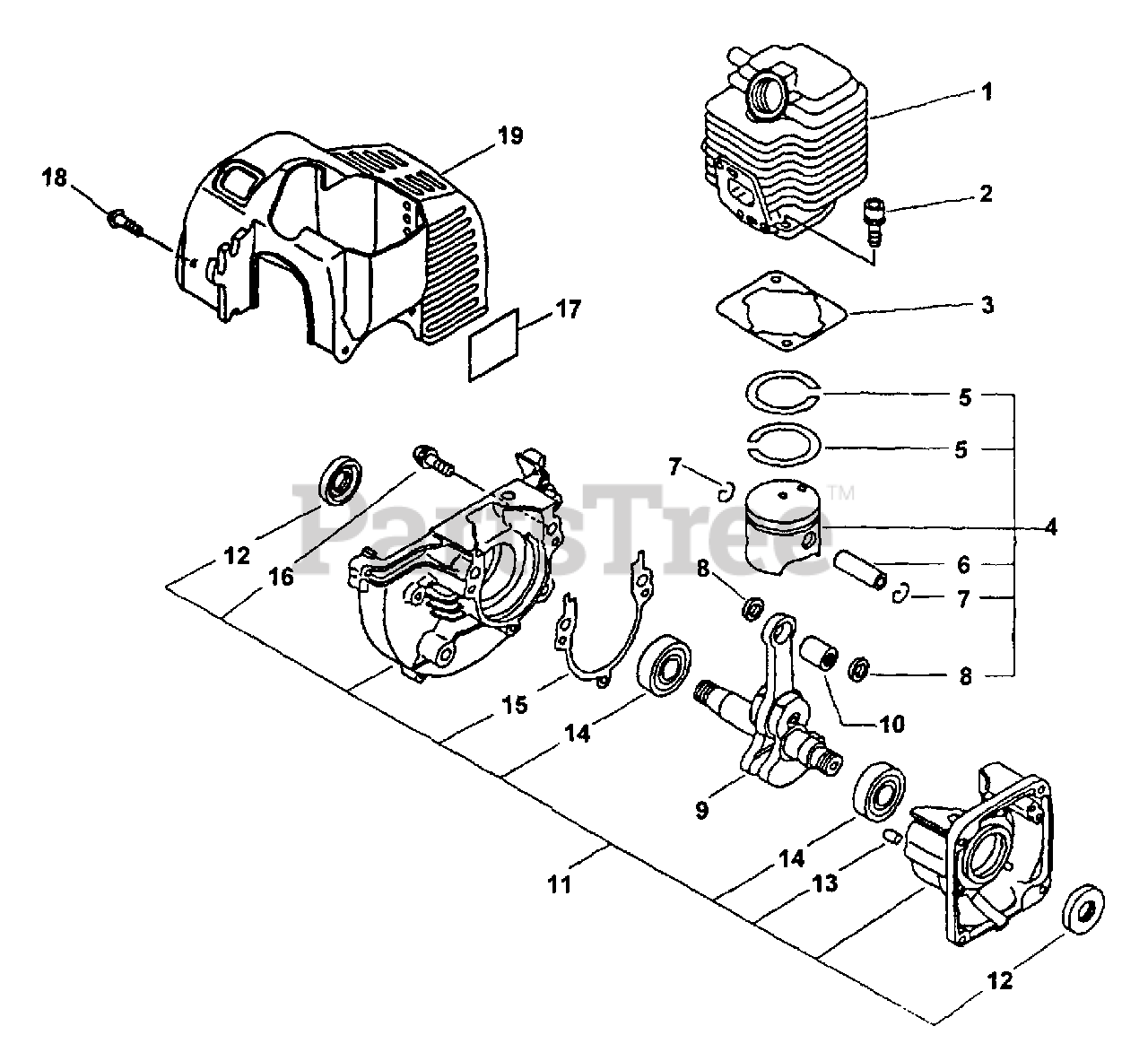

EDR-2100 - Echo Reversible Engine Drill (Type 1) Engine, Crankcase, Cover Parts Diagram

Reversible Engine Drill (Type 1)

Engine, Crankcase, Cover Parts Diagram

  • Title

1

Echo 10101106562

CYLINDER

$109.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101044332

GASKET, CYLINDER

Note: USE KIT 88900044431

$3.99

$

In Stock, Qty 20+

0

4

Echo 10000048732

PISTON KIT

Note: INCLUDES ITEMS 5 - 8

$77.99

$

In Stock, only 1 left!

0

5

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, Qty 20+

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 2 left!

0

9

Echo 10010054130

CRANKSHAFT ASSY
(Superseded to 10010044732)

Note: Includes ITEM 10

$155.99

$

In Stock, only 1 left!

0

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

11

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes ITEMS 12-16

$140.99

$

Usually ships in 2-4 days

0

12

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 20+

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 9

0

14

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 12

0

15

------------------

GASKET, CRANKCASE

Note: USE KIT 88900044431

$

$

Not available

16

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

17

Echo 89011420960

LABEL - MODEL EDR-2100

$3.99

$

Usually ships in 2-4 days

0

18

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

19

Echo 10151409061

COVER, ENGINE - GRAY
(Superseded to 10151421360)

$36.99

$

Usually ships in 2-4 days

0

Echo SB1026

SHORT BLOCK -- SB1026
(Superseded to Discontinued)

$

$

Not available

Echo 88900044431

GASKET KIT
(Superseded to 88900044432)

Note: OPTIONAL

$29.99

$

Usually ships in 2-4 days

0

Echo 10101044332

GASKET, CYLINDER

Note: OPTIONAL

$3.99

$

In Stock, Qty 20+

0

------------------

GASKET, CRANKCASE

Note: OPTIONAL

$

$

Not available

Echo 13001044431

GASKET, INTAKE

Note: OPTIONAL

$2.49

$

In Stock, Qty 13

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: OPTIONAL

$2.49

$

In Stock, Qty 20+

0

Echo 14586642031

GASKET, EXHAUST

Note: OPTIONAL

$2.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

Note: OPTIONAL

$0.99

$

In Stock, Qty 20+

0

Echo 14551044331

GASKET, EXHAUST

Note: OPTIONAL

$9.99

$

Usually ships in 2-4 days

0

Echo 90072000015

O-RING - 15

Note: OPTIONAL

$1.99

$

In Stock, Qty 20+

0
