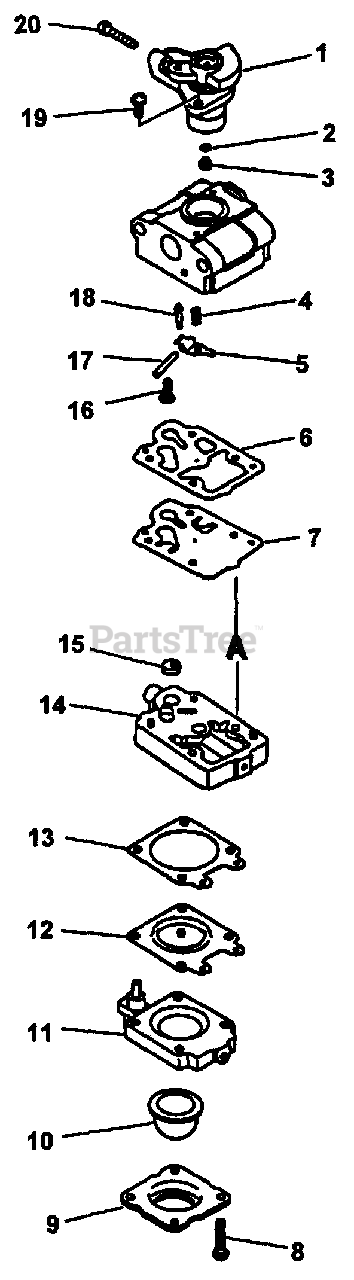

EDR-2400 - Echo Reversible Engine Drill (Type 1E) Carburetor Parts Diagram

Reversible Engine Drill (Type 1E)

Carburetor Parts Diagram

  • Title

Echo 12300021360

CARBURETOR - WYL-56
(Superseded to 12300021361)

Note: Includes ITEMS 1-20

$89.99

$

Usually ships in 2-4 days

0

1

Echo 12311605560

VALVE, THROTTLE

$21.99

$

Usually ships in 2-4 days

0

2

O-RING

Note: INCLUDED IN REBUILD KIT P/N 12310021360

$

$

Not available

------------------

JET - 38

Note: INCLUDED IN REBUILD KIT P/N 12310021360

$

$

Not available

4

SPRING, METERING LEVER

Note: INCLUDED IN REBUILD KIT P/N 12310021360

$

$

Not available

5

LEVER, METERING

Note: INCLUDED IN REBUILD KIT P/N 12310021360

$

$

Not available

------------------

GASKET, PUMP

Note: INCLUDED IN REBUILD KIT P/N 12310021360 AND GASKET/DIAPHRAGM KIT P/N 12310105560

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: INCLUDED IN REBUILD KIT P/N 12310021360 AND GASKET/DIAPHRAGM KIT P/N 12310105560

$

$

Not available

8

Echo 12311005560

SCREW

$2.99

$

In Stock, Qty 20+

0

9

Echo 12314205560

RETAINER, PURGE BULB

$5.49

$

In Stock, only 2 left!

0

10

Echo 12318140630

BULB, PURGE

$6.49

$

In Stock, Qty 20+

0

11

Echo 12318005560

BODY ASSY, PURGE

$8.99

$

In Stock, only 2 left!

0

12

DIAPHRAGM, METERING

Note: INCLUDED IN REBUILD KIT P/N 12310021360 AND GASKET/DIAPHRAGM KIT P/N 12310105560

$

$

Not available

13

GASKET, METERING

Note: INCLUDED IN REBUILD KIT P/N 12310021360 AND GASKET/DIAPHRAGM KIT P/N 12310105560

$

$

Not available

14

BASE, PURGE

Note: INCLUDED IN REBUILD KIT P/N 12310021360

$

$

Not available

15

STRAINER

Note: INCLUDED IN REBUILD KIT P/N 12310021360

$

$

Not available

16

SCREW, METERING LEVER PIN

Note: INCLUDED IN REBUILD KIT P/N 12310021360

$

$

Not available

17

PIN, METERING LEVER

Note: INCLUDED IN REBUILD KIT P/N 12310021360

$

$

Not available

------------------

VALVE, INLET NEEDLE

Note: INCLUDED IN REBUILD KIT P/N 12310021360

$

$

Not available

19

Echo 12311444330

SCREW, THROTTLE COLLAR

$0.99

$

Usually ships in 2-4 days

0

20

Echo 12313440030

SCREW

$1.49

$

Usually ships in 2-4 days

0

Echo 12310021360

REBUILD KIT
(Superseded to 12310005560)

$36.99

$

Usually ships in 2-4 days

0

Echo 12310105560

GASKET / DIAPHRAGM KIT

$6.99

$

Usually ships in 2-4 days

0
