EDR-2400 - Echo Reversible Engine Drill (Type 1E) Ignition, Starter, Clutch, Fuel System Parts Diagram

Reversible Engine Drill (Type 1E)

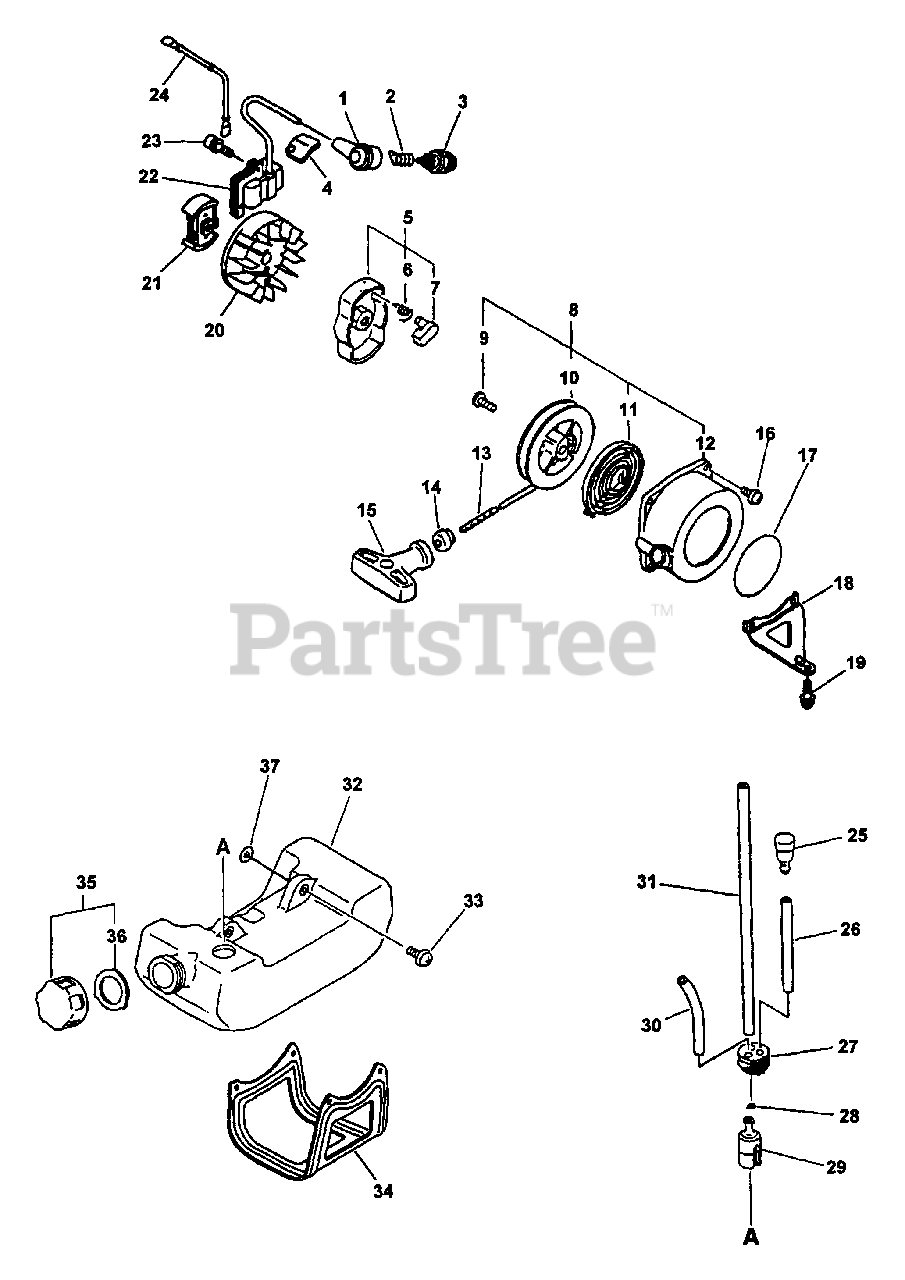

Ignition, Starter, Clutch, Fuel System Parts Diagram

  • Title

1

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, only 2 left!

0

2

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

3

Echo 99944500071

SPARK PLUG - BPM-7Y

$

$

Not available

4

Echo 150112-42030

GROMMET

$3.49

$

Usually ships in 2-4 days

0

5

Echo 177202-44330

PAWL ASSY, STARTER

Note: Includes ITEMS 6 & 7

$11.99

$

In Stock, Qty 9

0

6

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

7

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

8

Echo 177200-42033

STARTER ASSY, RECOIL

Note: INCLUDES ITEMS 9-15

$58.99

$

In Stock, Qty 10

0

9

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

10

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 7

0

11

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, only 4 left!

0

12

Echo 17723242032

CASE, RECOIL STARTER

$24.99

$

In Stock, only 2 left!

0

13

ROPE, STARTER

Note: RePower BULK OPTION: 99944440000

$

$

Not available

14

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

15

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

16

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

17

Echo 89011844330

LABEL - ECHO
(Superseded to 89011848830)

$0.99

$

In Stock, Qty 5

0

18

Echo 35101105560

SUPPORT, HANDLE

$12.99

$

In Stock, only 2 left!

0

19

Echo 900242-05016

SCREW 5×16

$0.99

$

In Stock, only 4 left!

0

20

Echo 156801-44731

FLYWHEEL

$126.99

$

Usually ships in 2-4 days

0

21

Echo 17500049030

CLUTCH ASSY
(Superseded to 17500056830)

$32.99

$

In Stock, only 2 left!

0

22

Echo 156601-52130

COIL, IGNITION
(Superseded to 15660152131)

$143.99

$

In Stock, only 1 left!

0

23

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

24

Echo 16202152830

LEAD
(Superseded to V485001080)

$4.49

$

In Stock, only 2 left!

0

25

Echo A356000031

VENT ASSY

Note: INCLUDED IN KIT 90010

$9.49

$

In Stock, Qty 20+

0

26

Echo 13131205560

PIPE, VENT

Note: RePower BULK OPTION: 90015

$3.49

$

In Stock, only 2 left!

0

27

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

28

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

29

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

30

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

31

Echo 13201005560

PIPE, FUEL

Note: RePower BULK OPTION: 90014

$10.99

$

In Stock, only 2 left!

0

32

Echo 131005-44331

TANK, FUEL
(Superseded to 13100544332)

$21.99

$

In Stock, Qty 6

0

33

Echo 900243-05016

SCREW 5×16

$0.99

$

Usually ships in 2-4 days

0

34

Echo 305110-42030

GUARD, FUEL TANK

$

$

Not available

35

Echo 13100455830

CAP ASSY, FUEL
(Superseded to P200000830)

Note: INCLUDES ITEM 36 (INCLUDED IN KIT 90010)

$5.49

$

In Stock, only 2 left!

0

36

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

37

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

Echo 99944400040

BULK ROPE - 3×1000
(Superseded to 99944440000)

$35.99

$

In Stock, only 2 left!

0

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

$

$

Not available
