EDR-260 - Echo Reversible Engine Drill (SN: E01705001001 - E01705999999) Fuel System S/N: E01705001001 - E01705008966 Parts Diagram

Reversible Engine Drill

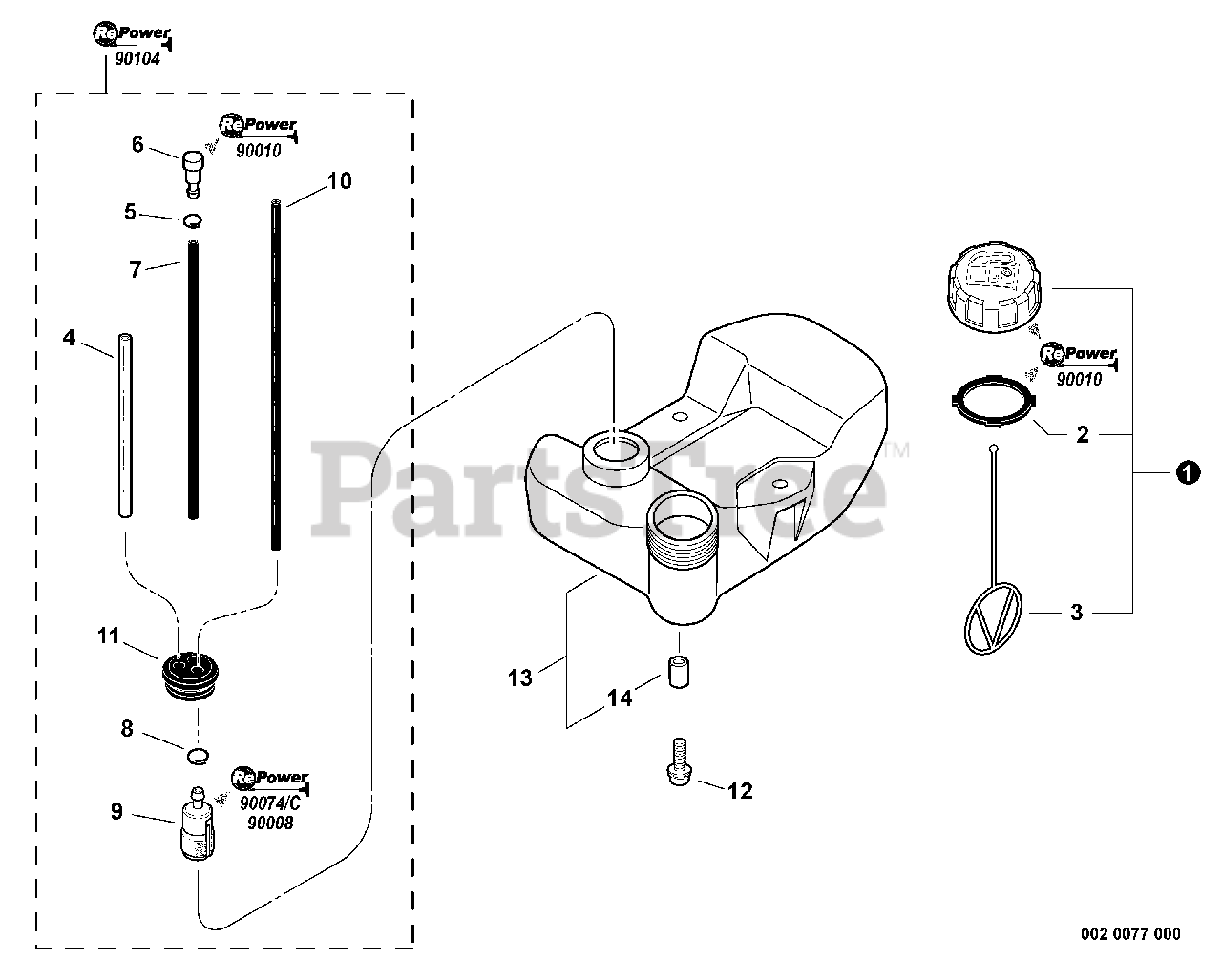

Fuel System S/N: E01705001001 - E01705008966 Parts Diagram

  • Title

1

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes ITEM 2-3 Included In RePower KIT

$7.49

$

In Stock, Qty 9

0

2

Echo 131016-55830

GASKET, FUEL CAP

Note: Included In RePower KIT

$

$

Not available

3

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

4

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

5

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

6

Echo A356000031

VENT ASSY

Note: Included In RePower KIT

$9.49

$

In Stock, Qty 20+

0

7

Echo V471000110

PIPE 3×6×115 BLACK
(Superseded to V471000111)

Note: RePower BULK OPTION: 90015

$2.99

$

In Stock, only 4 left!

0

8

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

9

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

Note: Included In RePower KIT

$9.99

$

In Stock, Qty 20+

0

10

Echo 13201052030

PIPE, FUEL 3×6×170
(Superseded to 13201052031)

Note: RePower BULK OPTION: 90015

$3.49

$

In Stock, Qty 11

0

11

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

Usually ships in 2-4 days

0

12

Echo 90023905016

SCREW 5×16
(Superseded to Discontinued)

$

$

Not available

13

Echo 13100555932

TANK ASSY, FUEL

Note: Includes ITEM 14

$46.99

$

Usually ships in 2-4 days

0

14

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

15

Echo 90104

FUEL SYSTEM KIT
(Superseded to 90104Y)

$24.99

$

In Stock, only 2 left!

0

16

Echo 90074

TUNE-UP KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

16

Echo 90074C

TUNE-UP KIT - REPOWER
(Superseded to 90152)

Note: CANADA MODELS

$21.99

$

In Stock, Qty 20+

0

17

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

18

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

$

$

Not available
