EDR-260 - Echo Reversible Engine Drill (SN: E01705001001 - E01705999999) Handles, Throttle Control Parts Diagram

Reversible Engine Drill

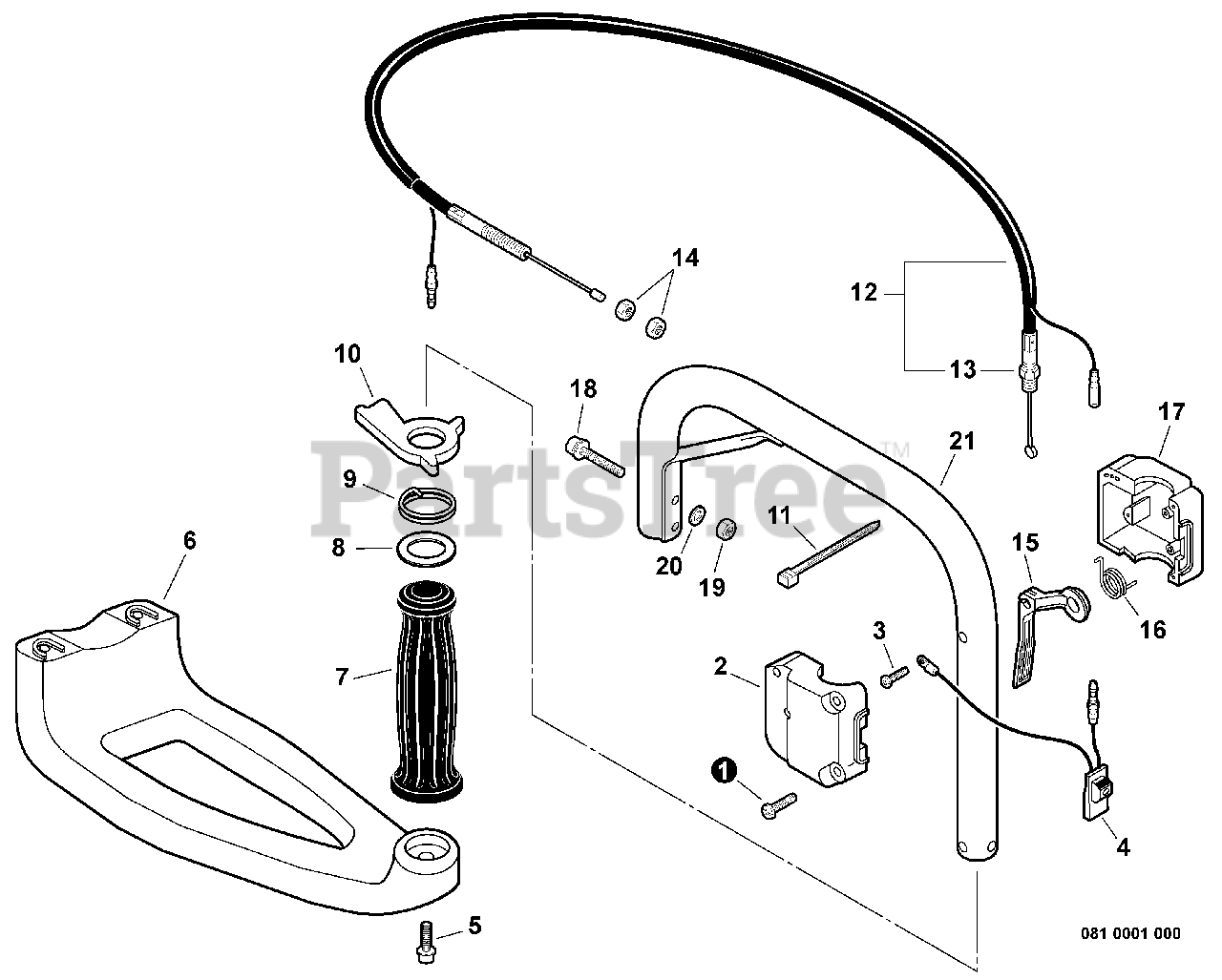

Handles, Throttle Control Parts Diagram

  • Title

1

Echo 90024504025

SCREW 4×25

$0.99

$

Usually ships in 2-4 days

0

2

Echo 17805201261

BRACKET, LEFT CONTROL

$4.99

$

In Stock, only 2 left!

0

3

Echo 90024504030

SCREW 4×30

$0.99

$

In Stock, only 4 left!

0

4

Echo 16340004460

SWITCH, ON-OFF

$12.99

$

In Stock, only 2 left!

0

5

Echo 90010605016

BOLT 5×16

$1.49

$

Usually ships in 2-4 days

0

6

Echo A175000021

STAND

$27.99

$

In Stock, only 2 left!

0

7

Echo 35131527931

GRIP, HANDLE

$6.49

$

In Stock, only 2 left!

0

8

Echo 17807002061

SPACER

$1.99

$

In Stock, only 3 left!

0

9

Echo 17801302060

SPRING, THROTTLE LOCKOUT

$2.99

$

Usually ships in 2-4 days

0

10

Echo 17801202061

LOCKOUT, THROTTLE

$6.49

$

Usually ships in 2-4 days

0

11

Echo 17812156030

TIE, CABLE

$2.99

$

Usually ships in 2-4 days

0

12

Echo V043000010

CABLE ASSY, CONTROL

Note: Includes ITEM 14

$23.99

$

In Stock, only 4 left!

0

13

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

14

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

15

Echo C450000150

TRIGGER, THROTTLE

$6.49

$

Usually ships in 2-4 days

0

16

Echo 17804301260

SPRING, THROTTLE RETURN

$1.49

$

In Stock, only 3 left!

0

17

Echo 17802401261

BRACKET, RIGHT CONTROL

$4.99

$

In Stock, only 2 left!

0

18

Echo 90016205035

BOLT M5×35

$1.99

$

In Stock, Qty 16

0

19

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

20

Echo 90060200005

WASHER 5.3×10×1
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

21

Echo C410000160

HANDLE, REAR

$108.99

$

In Stock, Qty 10

0
