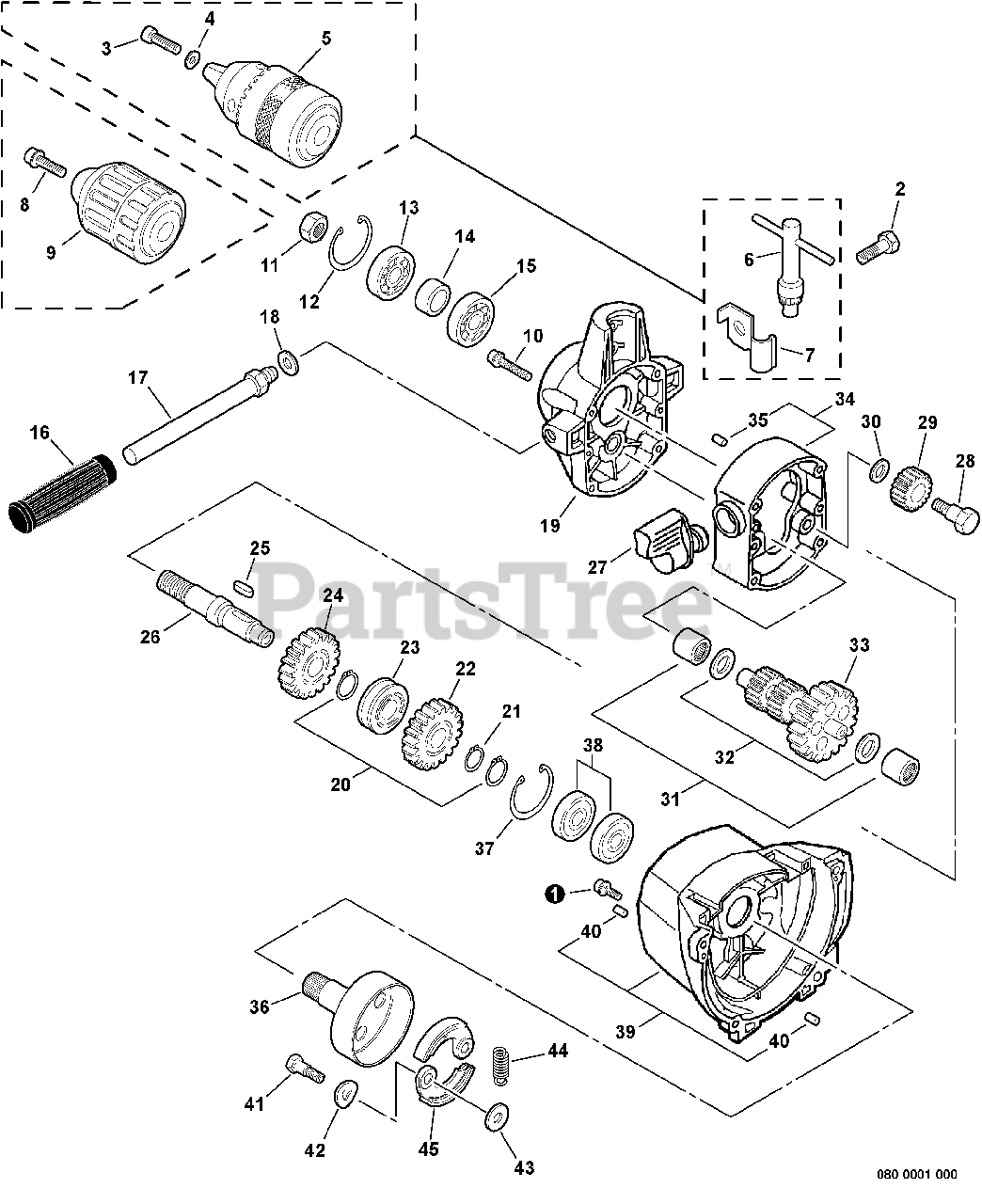

EDR-260 - Echo Reversible Engine Drill (SN: E01807001001 - E01807999999) Chuck, Clutch, Gear Case Parts Diagram

Reversible Engine Drill

Chuck, Clutch, Gear Case Parts Diagram

  • Title

1

Echo 90016205018

SCREW - 5X18

$0.99

$

In Stock, Qty 8

0

2

Echo 90010010015

BOLT - 10X15

$1.49

$

In Stock, only 2 left!

0

3

Echo 90010506020

SCREW - 6X20

Note: KEYED CHUCK MODELS

$1.49

$

In Stock, Qty 20+

0

4

Echo 17501404630

WASHER - 6

Note: KEYED CHUCK MODELS

$2.49

$

In Stock, Qty 20+

0

5

Echo 60405105560

CHUCK - KEYED

$164.99

$

In Stock, Qty 6

0

6

Echo 89757005560

KEY, CHUCK

$22.99

$

In Stock, only 3 left!

0

7

Echo 89757505560

CLAMP, CHUCK KEY

$8.49

$

In Stock, only 2 left!

0

8

Echo 9110306020

BOLT - 6X20

Note: KEYLESS CHUCK MODELS

$1.99

$

In Stock, only 1 left!

0

9

Echo X460000000

CHUCK - KEYLESS

Note: KEYLESS CHUCK MODELS

$90.99

$

Usually ships in 2-4 days

0

10

Echo 90016205050

SCREW - 5X50

$2.49

$

In Stock, Qty 7

0

11

Echo 22431920960

NUT - 12

$17.99

$

Usually ships in 2-4 days

0

12

Echo 90070200032

RING, RETAINING - 32

$2.49

$

In Stock, only 2 left!

0

13

Echo 90080206002

BEARING, BALL - 6002

$19.99

$

In Stock, only 2 left!

0

14

Echo 60404405560

COLLAR

$4.99

$

Usually ships in 2-4 days

0

15

Echo 90080036002

BEARING, BALL - 6002

$17.99

$

Usually ships in 2-4 days

0

16

Echo 35151522330

GRIP, HANDLE
(Superseded to 35131128330)

$7.99

$

In Stock, Qty 12

0

17

Echo C400000090

HANDLE - LEFT

$54.99

$

In Stock, Qty 12

0

18

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 9

0

19

Echo C531000182

CASE, GEAR

$84.99

$

In Stock, only 2 left!

0

20

Echo 90070100015

RING, RETAINING - 15

$1.49

$

In Stock, only 2 left!

0

21

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

22

Echo V650000140

GEAR - SPUR

$53.99

$

In Stock, only 2 left!

0

23

Echo P021005840

CAM, CLUTCH ADJUSTER

$56.99

$

Usually ships in 2-4 days

0

24

Echo V650000130

GEAR - SPUR

$53.99

$

Usually ships in 2-4 days

0

25

Echo 90032504016

KEY - 4X16

$3.49

$

In Stock, Qty 12

0

26

Echo 60602120960

GEAR - SHAFT

$91.99

$

In Stock, only 2 left!

0

27

Echo 70300520960

LEVER, CLUTCH

$57.99

$

Usually ships in 2-4 days

0

28

Echo V204000070

BOLT

$18.99

$

In Stock, only 1 left!

0

29

Echo V650000150

GEAR - SPUR

$27.99

$

In Stock, only 1 left!

0

30

Echo V305000020

WASHER

$7.99

$

In Stock, only 1 left!

0

31

Echo 60422105560

BEARING, NEEDLE

$11.99

$

In Stock, only 2 left!

0

32

Echo 60422305560

WASHER

$3.99

$

Usually ships in 2-4 days

0

33

Echo P021005820

GEAR ASSY

$78.99

$

Usually ships in 2-4 days

0

34

Echo P021005801

GEAR CASE ASSY

Note: Includes ITEM 35

$82.99

$

Usually ships in 2-4 days

0

35

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

36

Echo A556000250

DRUM, CLUTCH

$55.99

$

Usually ships in 2-4 days

0

37

Echo 90070200032

RING, RETAINING - 32

$2.49

$

In Stock, only 2 left!

0

38

Echo 90080106002

BEARING, BALL - 6002D

$18.99

$

Usually ships in 2-4 days

0

39

Echo P021005831

FAN CASE ASSY

Note: Includes ITEM 40

$72.99

$

Usually ships in 2-4 days

0

40

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

41

Echo 17504656030

BOLT, CLUTCH

$5.99

$

In Stock, Qty 20+

0

42

Echo 17504956030

WASHER - SPRING

$1.99

$

In Stock, Qty 20+

0

43

Echo 17504805530

WASHER - 6

$1.99

$

In Stock, Qty 20+

0

44

Echo V451000090

SPRING, CLUTCH

$2.49

$

In Stock, Qty 12

0

45

Echo A553000010

SHOE, CLUTCH
(Superseded to A553000200)

$18.99

$

In Stock, Qty 5

0
