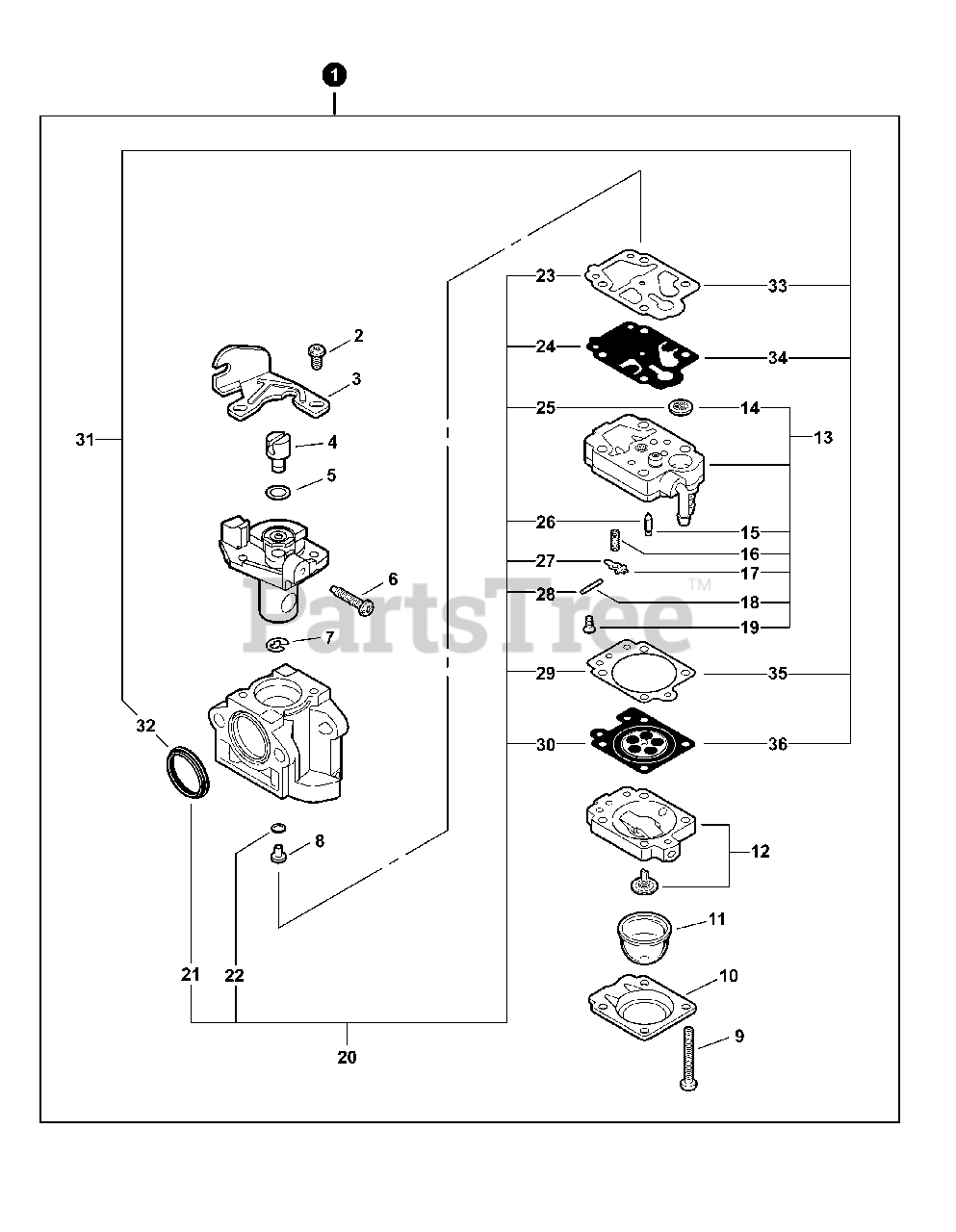

EDR-260 - Echo Reversible Engine Drill (SN: E52412001001 - E52412999999) Carburetor Parts Diagram

Reversible Engine Drill

Carburetor Parts Diagram

  • Title

1

Echo A021000672

CARBURETOR -- WYJ-330A

Note: Includes Items 2-36

$79.99

$

In Stock, Qty 5

0

2

Echo 12311440630

SCREW

$2.49

$

In Stock, only 3 left!

0

3

Echo P003000180

BRACKET, CABLE

$1.99

$

Usually ships in 2-4 days

0

4

Echo 12317245130

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

5

Echo 12314954230

WASHER

$0.99

$

In Stock, only 1 left!

0

6

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

7

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

8

Echo P003001050

JET, MAIN
(Superseded to Discontinued)

$

$

Not available

9

Echo 12311005560

SCREW, PUMP COVER

$2.99

$

In Stock, Qty 20+

0

10

Echo 12314205560

RETAINER, PURGE BULB

$4.49

$

In Stock, Qty 20+

0

11

Echo 12318140630

BULB, PURGE

$5.49

$

In Stock, Qty 20+

0

12

Echo 12318005560

PURGE BASE ASY

$7.49

$

In Stock, Qty 20+

0

13

Echo P003000870

PUMP BODY ASY

Note: Includes Items 14-19

$14.99

$

Usually ships in 2-4 days

0

14

------------------

STRAINER

$

$

Not available

15

------------------

VALVE, INLET NEEDLE

$

$

Not available

16

------------------

SPRING, METERING LEVER

$

$

Not available

17

------------------

LEVER, METERING

$

$

Not available

18

------------------

PIN, METERING LEVER

$

$

Not available

19

Echo 12313905560

SCREW, METERING LEVER PIN

$0.99

$

Usually ships in 2-4 days

0

20

Echo P003000190

REPAIR KIT

Note: Includes Items 21-30

$14.99

$

In Stock, Qty 11

0

21

------------------

RING, PACKING

$

$

Not available

22

------------------

O-RING

$

$

Not available

23

------------------

GASKET, PUMP

$

$

Not available

24

------------------

DIAPHRAGM, PUMP

$

$

Not available

25

------------------

STRAINER

$

$

Not available

26

------------------

VALVE, INLET NEEDLE

$

$

Not available

27

------------------

LEVER, METERING

$

$

Not available

28

------------------

PIN, METERING LEVER

$

$

Not available

29

------------------

GASKET, METERING

$

$

Not available

30

------------------

DIAPHRAGM, METERING

$

$

Not available

31

Echo P003000200

DIAPHRAGM/GASKET KIT

Note: Includes Items 32-36

$8.99

$

In Stock, only 3 left!

0

32

------------------

RING, PACKING

$

$

Not available

33

------------------

GASKET, PUMP

$

$

Not available

34

------------------

DIAPHRAGM, PUMP

$

$

Not available

35

------------------

GASKET, METERING

$

$

Not available

36

------------------

DIAPHRAGM, METERING

$

$

Not available
