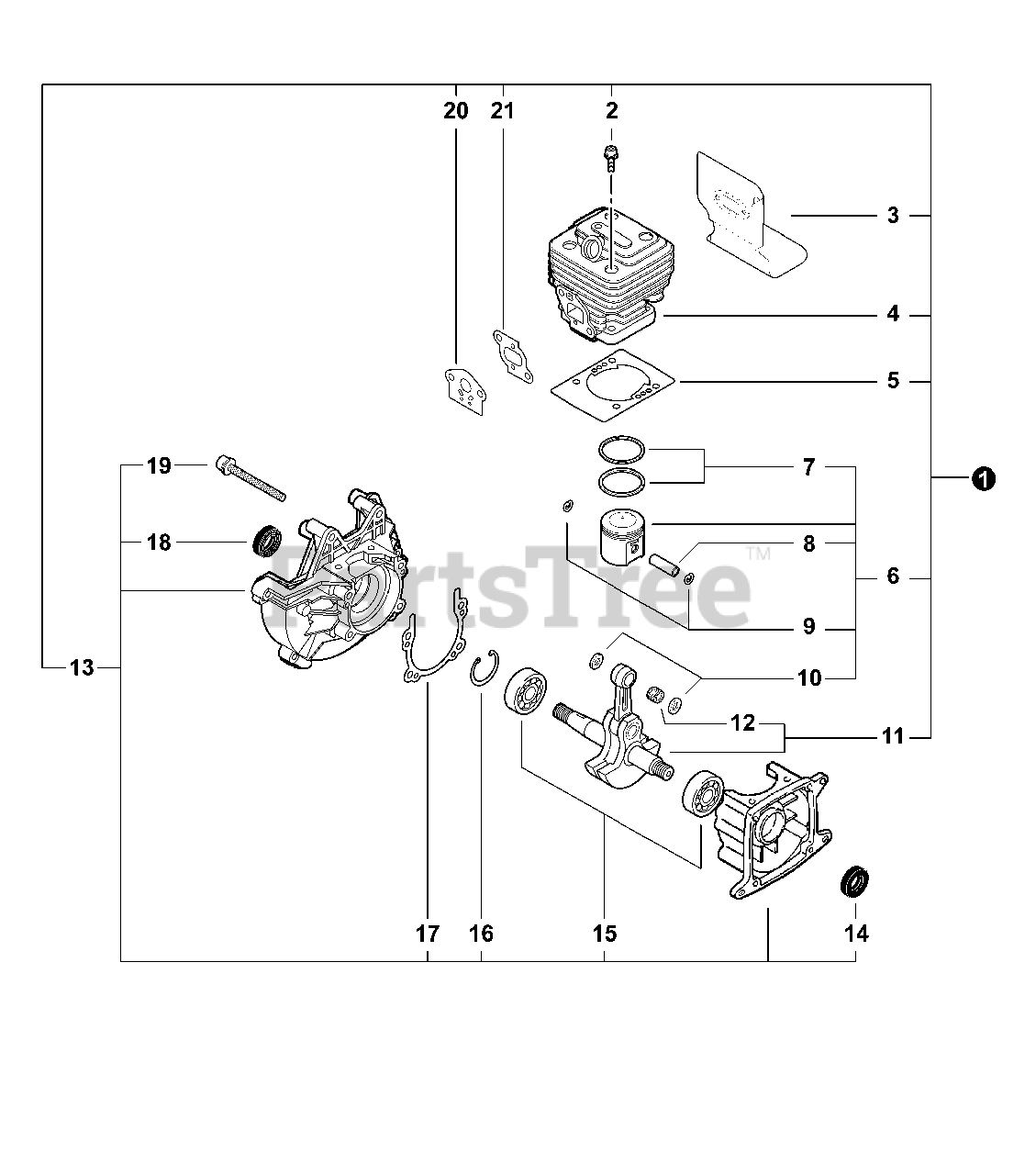

EDR-260 - Echo Reversible Engine Drill (SN: E52412001001 - E52412999999) Engine Parts Diagram

Reversible Engine Drill

Engine Parts Diagram

  • Title

1

Echo SB1060

SHORT BLOCK -- SB1060

Note: Includes Items 2-21

$224.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5×22

$0.99

$

In Stock, Qty 19

0

3

Echo V104000061

SHIELD, EXHAUST

$10.99

$

In Stock, only 4 left!

0

4

Echo A130000371

CYLINDER

$184.99

$

Usually ships in 2-4 days

0

5

Echo V100000070

GASKET, CYLINDER

$7.49

$

Usually ships in 2-4 days

0

6

Echo P021004740

PISTON KIT

Note: Includes Items 7-10

$80.99

$

Usually ships in 2-4 days

0

7

Echo A101000010

RING, PISTON

$8.99

$

In Stock, only 3 left!

0

8

Echo V606000000

PIN, PISTON

$7.49

$

Usually ships in 2-4 days

0

9

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

10

Echo 10001455930

SPACER, PISTON

$3.99

$

Usually ships in 2-4 days

0

11

Echo A011001110

CRANKSHAFT ASY

Note: Includes Item 12

$188.99

$

Usually ships in 2-4 days

0

12

Echo V553000020

BEARING, NEEDLE
(Superseded to V553000140)

$11.99

$

Usually ships in 2-4 days

0

13

Echo P021000941

CRANKCASE KIT

Note: Includes Items 14-19

$233.99

$

Usually ships in 2-4 days

0

14

Echo V505000020

SEAL, OIL - 12

$6.99

$

In Stock, Qty 20+

0

15

Echo 90080036001

BEARING, BALL - 6001

$10.99

$

In Stock, only 4 left!

0

16

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

17

Echo 10024255930

GASKET, CRANKCASE

$3.99

$

In Stock, only 4 left!

0

18

Echo 10021228230

SEAL, OIL

$4.99

$

In Stock, only 3 left!

0

19

Echo 90016205025

SCREW - 5×25

$0.99

$

In Stock, Qty 20+

0

20

Echo 13001013410

GASKET, INTAKE

$1.99

$

In Stock, Qty 10

0

21

Echo 13001055930

GASKET, INTAKE

$1.99

$

In Stock, only 3 left!
