EDR-260 - Echo Reversible Engine Drill (SN: E52412001001 - E52412999999) Fuel System Parts Diagram

Reversible Engine Drill

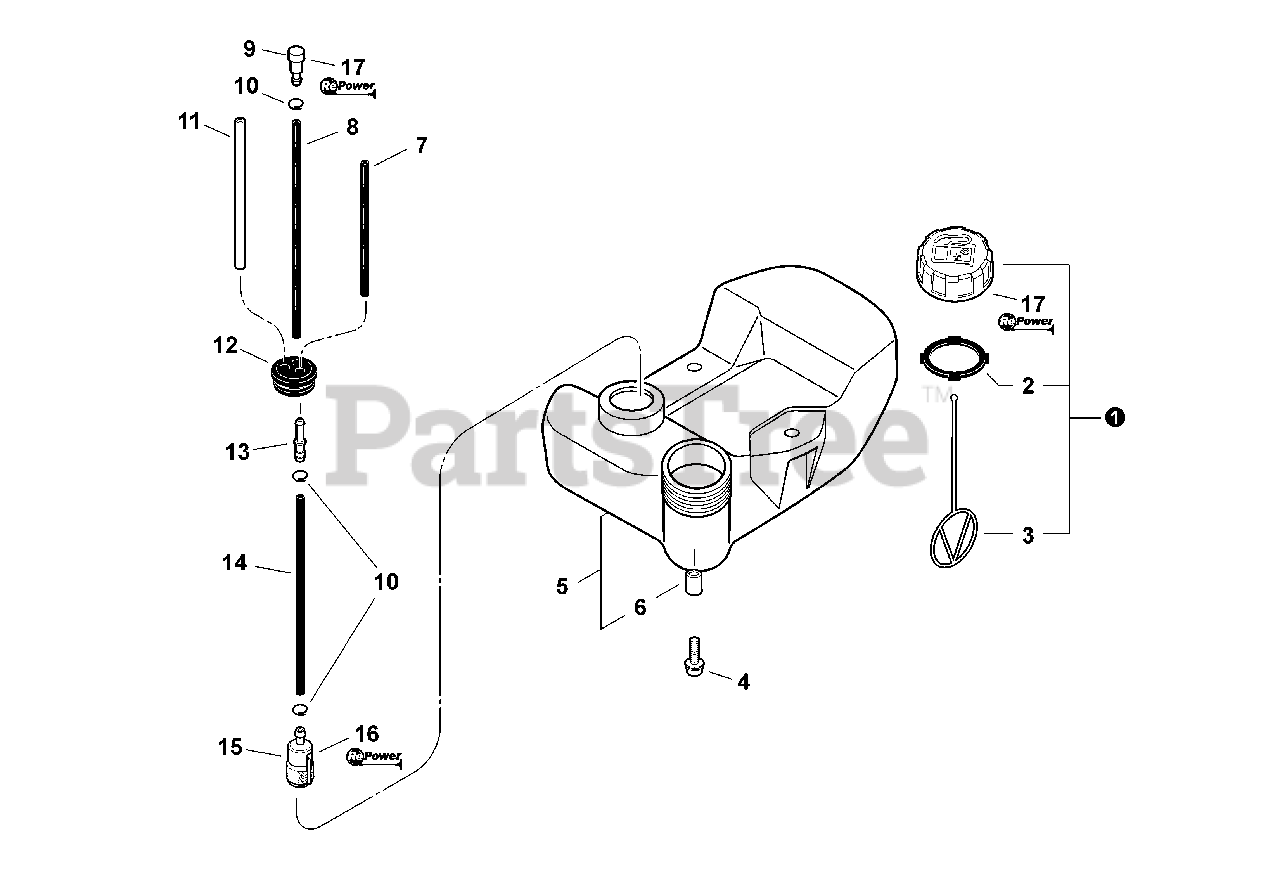

Fuel System Parts Diagram

  • Title

1

Echo P021040030

CAP ASY - ORANGE

Note: Includes Items 2-3

$5.99

$

In Stock, Qty 20+

0

2

Echo V107000150

GASKET

$4.49

$

In Stock, Qty 20+

0

3

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

4

Echo 90023905016

SCREW - 5×16
(Superseded to Discontinued)

$

$

Not available

5

Echo A350000660

FUEL TANK ASY
(Superseded to A350002320)

Note: Includes Item 6

$

$

Not available

6

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

7

Echo V471003710

PIPE - 3×5×67 -- BLACK
(Superseded to V471005600)

$2.99

$

In Stock, only 4 left!

0

8

Echo V471000110

PIPE - 3×6×115 -- BLACK
(Superseded to V471000111)

$2.49

$

In Stock, Qty 20+

0

9

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

10

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

11

Echo 13201256030

PIPE - 3×6×80 -- CLEAR

$3.49

$

In Stock, Qty 20+

0

12

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

13

Echo V186000520

CONNECTOR, FUEL PIPE

$0.99

$

In Stock, Qty 20+

0

14

Echo 13201056030

PIPE - 3×6×110 -- BLACK
(Superseded to 13201056031)

$2.99

$

In Stock, only 2 left!

0

15

Echo 13120519832

FILTER, FUEL
(Superseded to A369000460)

$9.49

$

In Stock, Qty 20+

0

16

Echo 90152

RePower TUNE-UP KIT
(Superseded to 90152Y)

$20.99

$

In Stock, Qty 20+

0

16

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0

17

Echo 90248

RePower CAP AND VENT KIT
(Superseded to Discontinued)

$

$

Not available
