EDR-260 - Echo Reversible Engine Drill (SN: E52412001001 - E52412999999) Fuel System Parts Diagram

Reversible Engine Drill

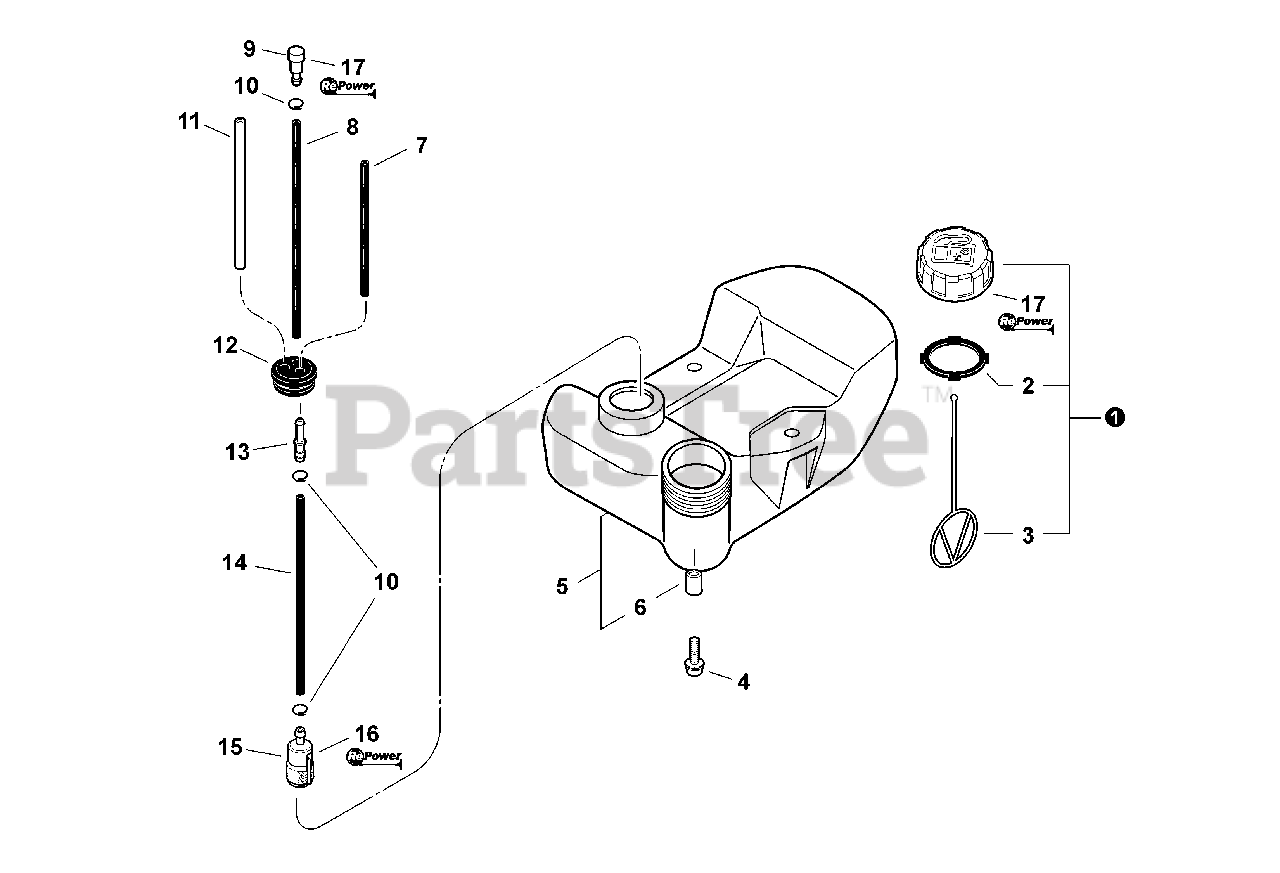

Fuel System Parts Diagram

  • Title

1

Echo P021040030

CAP ASSY, FUEL

Note: Includes Items 2-3

$6.99

$

In Stock, Qty 20+

0

2

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, only 2 left!

0

3

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

4

Echo 90023905016

SCREW 5×16
(Superseded to Discontinued)

$

$

Not available

5

Echo A350000660

TANK, FUEL
(Superseded to A350002320)

Note: Includes Item 6

$

$

Not available

6

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

7

Echo V471003710

PIPE, FUEL - 3×5×67 - BLACK
(Superseded to V471005600)

$3.49

$

In Stock, only 2 left!

0

8

Echo V471000110

PIPE 3×6×115 BLACK
(Superseded to V471000111)

Note: RePower Bulk 90015

$2.99

$

In Stock, only 4 left!

0

9

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

10

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

11

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

Note: RePower Bulk 90017

$3.49

$

In Stock, Qty 20+

0

12

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

Usually ships in 2-4 days

0

13

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

14

Echo 13201056030

PIPE, FUEL 3×6×110
(Superseded to 13201056031)

Note: RePower Bulk 90015

$3.49

$

In Stock, only 2 left!

0

15

Echo 13120519832

FILTER, FUEL
(Superseded to A369000460)

$9.99

$

In Stock, Qty 20+

0

16

Echo 90152

TUNE-UP KIT - REPOWER
(Superseded to 90152Y)

Note: See RePower Maintenance Kits

$21.99

$

In Stock, Qty 20+

0

16

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

Note: See RePower Maintenance Kits

$21.99

$

In Stock, Qty 20+

0

17

Echo 90248

CAP/VENT KIT - REPOWER
(Superseded to Discontinued)

Note: See RePower Maintenance Kits

$

$

Not available
