EG-1200 - Echo Generator (Original Version) External Covers Parts Diagram

Generator

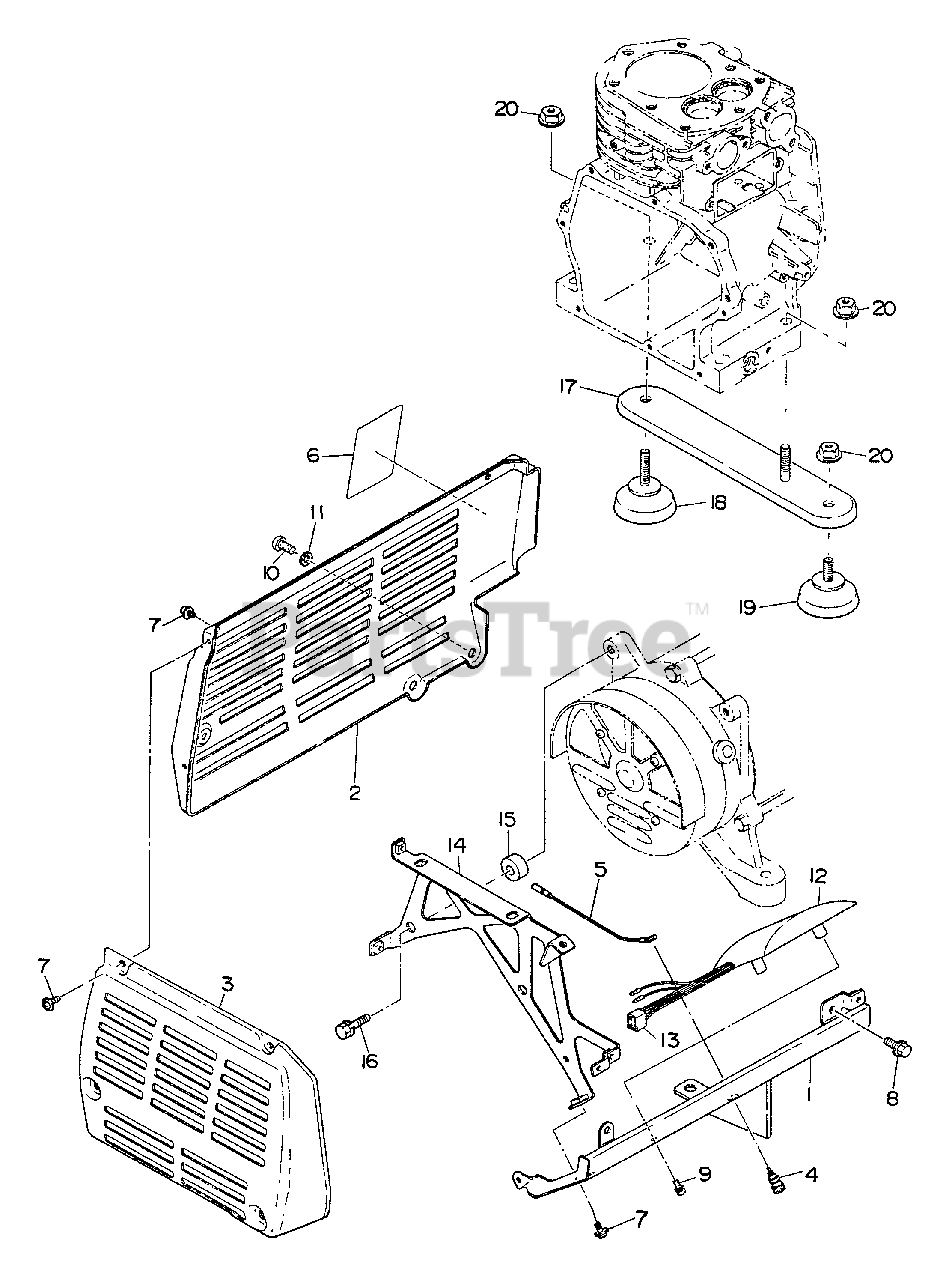

External Covers Parts Diagram

  • Title

1

Echo 103505010501

FRONT COVER ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 103505060601

REAR COVER, COMPL.
(Superseded to Discontinued)

$

$

Not available

3

Echo 103505160601

SIDE COVER
(Superseded to Discontinued)

$

$

Not available

4

Echo 103634570008

BOLT, TERMINAL - BLACK
(Superseded to Discontinued)

$

$

Not available

5

Echo 103505400101

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

6

Echo 103509220103

LABEL - SPECIFICATION
(Superseded to Discontinued)

$

$

Not available

7

Echo 100131050020

SCREW
(Superseded to Discontinued)

$

$

Not available

8

Echo 100043405100

SCREW
(Superseded to Discontinued)

$

$

Not available

9

Echo 100043504080

SCREW
(Superseded to Discontinued)

$

$

Not available

10

Echo 100043108100

SCREW - PAN HEAD
(Superseded to Discontinued)

$

$

Not available

11

Echo 100031108000

WASHER
(Superseded to Discontinued)

$

$

Not available

12

Echo 103502400201

AVR, COMPL.
(Superseded to Discontinued)

Note: Includes ITEM 13

$

$

Not available

13

Echo 103534720108

CONNECTOR (4P)
(Superseded to Discontinued)

$

$

Not available

14

Echo 103503510111

MOUNT ASSY
(Superseded to Discontinued)

$

$

Not available

15

Echo 100230080101

SPACER
(Superseded to Discontinued)

$

$

Not available

16

Echo 100011308300

BOLT
(Superseded to Discontinued)

$

$

Not available

17

Echo 103503070121

MOUNT ASSY
(Superseded to Discontinued)

$

$

Not available

18

Echo 103503010301

MOUNT ASSY
(Superseded to Discontinued)

$

$

Not available

19

Echo 103503010401

MOUNT ASSY
(Superseded to Discontinued)

$

$

Not available

20

Echo 100023808000

NUT, FLANGE
(Superseded to Discontinued)

$

$

Not available
