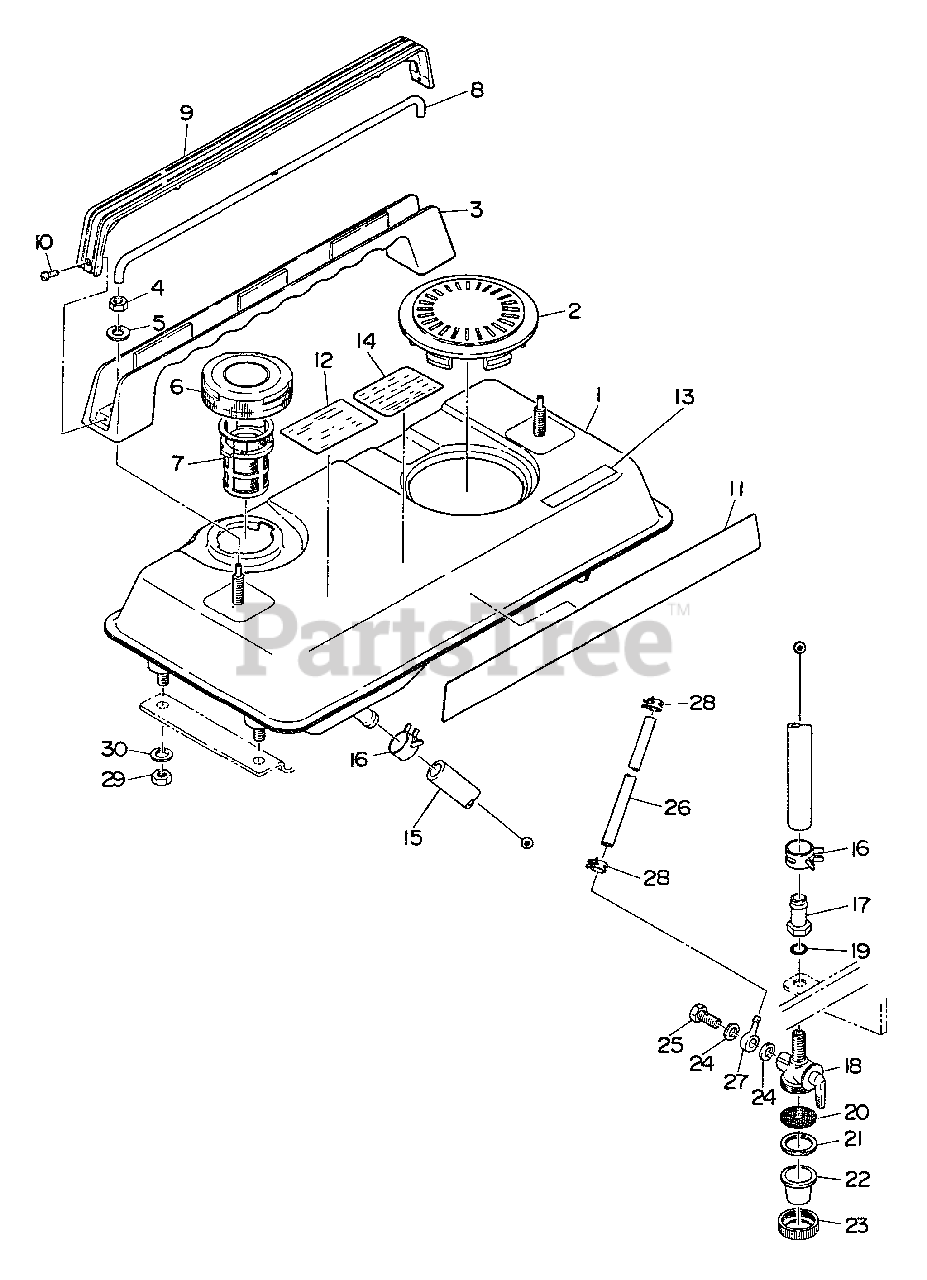

EG-1200 - Echo Generator (Original Version) Fuel Tank, Handles Parts Diagram

Generator

Fuel Tank, Handles Parts Diagram

  • Title

1

Echo 103506010371

FUEL TANK ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 102276600103

PLUG COVER
(Superseded to Discontinued)

$

$

Not available

3

Echo 103506520101

HANDLE
(Superseded to Discontinued)

$

$

Not available

4

Echo 100021808000

NUT
(Superseded to Discontinued)

$

$

Not available

5

Echo 100032008000

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

6

Echo 100430430041

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo 100641360020

FILTER, FUEL

$

$

Not available

8

Echo 103506550103

PIPE, BREATHER
(Superseded to Discontinued)

$

$

Not available

9

Echo 103506540113

HANDLE COVER
(Superseded to Discontinued)

$

$

Not available

10

Echo 100043103100

SCREW - PAN HEAD
(Superseded to Discontinued)

$

$

Not available

11

Echo 103509171603

LABEL - TRADE MARK
(Superseded to Discontinued)

$

$

Not available

12

Echo 100732002630

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

13

Echo 103589530403

LABEL - SPARK ARRESTER
(Superseded to Discontinued)

$

$

Not available

14

Echo 103909900103

LABEL - DANGER
(Superseded to Discontinued)

$

$

Not available

15

Echo 100851110000

RUBBER PIPE (11.5×17.5×230 MM)

$7.49

$

Usually ships in 2-4 days

0

16

Echo 100561170010

CLAMP, HOSE
(Superseded to Discontinued)

$

$

Not available

17

Echo 100533090020

CLAMP, HOSE
(Superseded to Discontinued)

$

$

Not available

18

Echo 100642004902

FILTER, FUEL
(Superseded to Discontinued)

Note: INCLUDES ITEMS 19 THRU 25

$

$

Not available

19

Echo 100642000330

O-RING
(Superseded to Discontinued)

$

$

Not available

20

Echo 100642000220

FILTER

$3.49

$

In Stock, only 2 left!

0

21

Echo 100642000230

PACKING

$

$

Not available

22

Echo 100642001910

CUP

$4.99

$

Usually ships in 2-4 days

0

23

Echo 100642002410

NUT, LOCK

$9.99

$

In Stock, only 1 left!

0

24

Echo 100642000250

FIBER PACKING
(Superseded to Discontinued)

$

$

Not available

25

Echo 100642000240

BOLT, BANJO

$2.49

$

Usually ships in 2-4 days

0

26

Echo 100851060000

RUBBER PIPE (6×12×160 MM)

$16.99

$

Usually ships in 2-4 days

0

27

Echo 100521070042

BOLT, BANJO
(Superseded to Discontinued)

$

$

Not available

28

Echo 100561110020

CLAMP, HOSE
(Superseded to Discontinued)

$

$

Not available

29

Echo 100021808000

NUT
(Superseded to Discontinued)

$

$

Not available

30

Echo 100032008000

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available
