EG-1200 - Echo Generator (Original Version) GENERATOR Parts Diagram

Generator

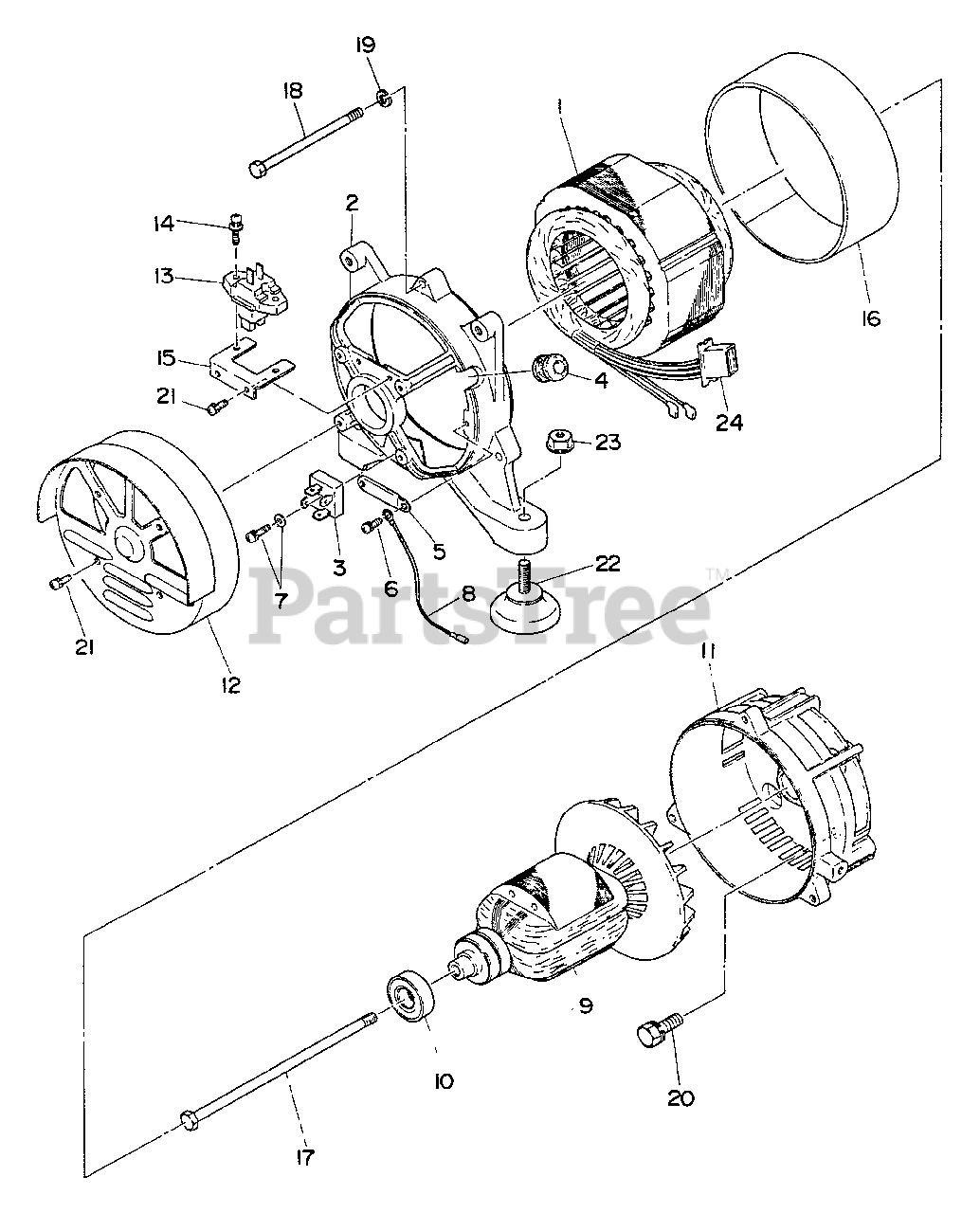

GENERATOR Parts Diagram

  • Title

1

Echo 103502500401

STATOR ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 103502105108

BRACKET, REAR
(Superseded to Discontinued)

$

$

Not available

3

Echo 103534580408

DIODE STACK ASS'Y

$

$

Not available

4

Echo 103502105508

GROMMET
(Superseded to Discontinued)

$

$

Not available

5

Echo 103502105308

CLAMP
(Superseded to Discontinued)

$

$

Not available

6

Echo 100131050020

SCREW
(Superseded to Discontinued)

$

$

Not available

7

Echo 103502105708

SCREW
(Superseded to Discontinued)

$

$

Not available

8

Echo 103502600101

EARTH WIRE, COMPL
(Superseded to Discontinued)

$

$

Not available

9

Echo 103502101508

ROTOR ASSY
(Superseded to Discontinued)

Note: Includes ITEM 10

$

$

Not available

10

Echo 103605820108

BEARING, BALL
(Superseded to Discontinued)

$

$

Not available

11

Echo 103502105608

BRACKET, FRONT
(Superseded to Discontinued)

$

$

Not available

12

Echo 103502105408

END COVER
(Superseded to Discontinued)

$

$

Not available

13

Echo 103655500208

HOLDER, BRUSH
(Superseded to Discontinued)

$

$

Not available

14

Echo 100043605200

SCREW
(Superseded to Discontinued)

$

$

Not available

15

Echo 103502105208

BRUSH HOLDER BASE
(Superseded to Discontinued)

$

$

Not available

16

Echo 103502105008

STATOR COVER
(Superseded to Discontinued)

$

$

Not available

17

Echo 100100080330

THROUGH BOLT
(Superseded to Discontinued)

$

$

Not available

18

Echo 100130060090

BOLT
(Superseded to Discontinued)

$

$

Not available

19

Echo 100032006000

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

20

Echo 100011308180

BOLT
(Superseded to Discontinued)

$

$

Not available

21

Echo 100131050020

SCREW
(Superseded to Discontinued)

$

$

Not available

22

Echo 103503010301

MOUNT ASSY
(Superseded to Discontinued)

$

$

Not available

23

Echo 100023808000

NUT, FLANGE
(Superseded to Discontinued)

$

$

Not available

24

LABEL - GENERATOR

$

$

Not available
