EG-1500 - Echo Generator (SN: 03797 - 99999) Carburetor Parts Diagram

Generator

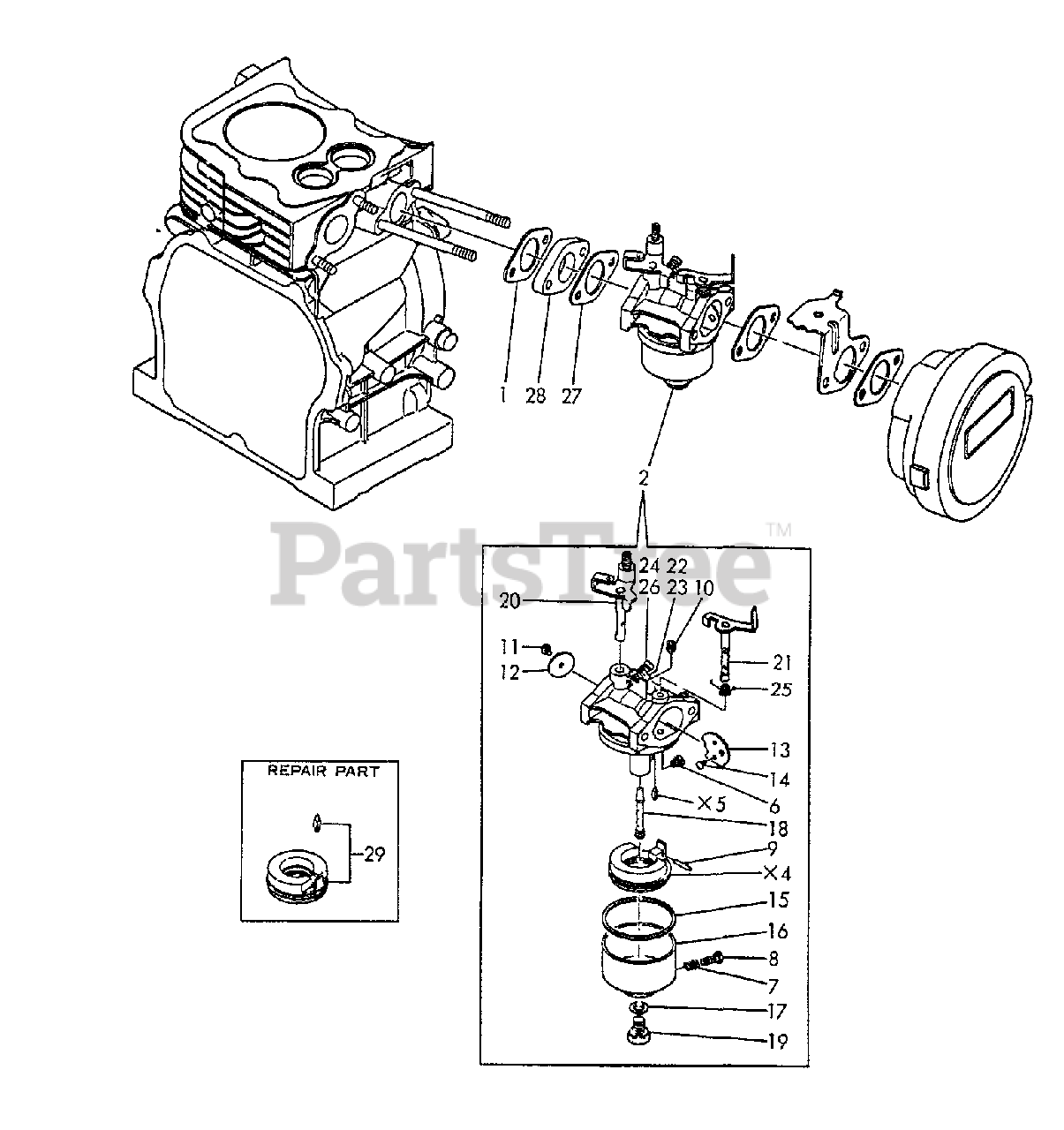

Carburetor Parts Diagram

  • Title

1

Echo Y16031013200

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16067156010

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16061056621

FLOAT
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16071056731

NEEDLE
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16071056650

JET, MAIN
(Superseded to Discontinued)

$

$

Not available

7

Echo Y18123056380

SPRING

$4.99

$

Usually ships in 2-4 days

0

8

Echo Y16061056900

SCREW
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16061056631

PIN
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16071056740

JET, PILOT

$19.99

$

Usually ships in 2-4 days

0

11

Echo Y16012056670

SCREW
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16061056760

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16061056680

VALVE, CHOKE
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16071056710

SCREW

$1.49

$

Usually ships in 2-4 days

0

15

Echo Y16061056610

GASKET
(Superseded to Discontinued)

$

$

Not available

16

Echo Y16061056640

BODY, FLOAT CHAMBER
(Superseded to Discontinued)

$

$

Not available

17

Echo Y16061056550

WASHER
(Superseded to Discontinued)

$

$

Not available

18

Echo Y16061056800

NOZZLE
(Superseded to Discontinued)

$

$

Not available

19

Echo Y16061056660

BOLT
(Superseded to Discontinued)

$

$

Not available

20

Echo Y16077056770

SHAFT, THROTTLE

$50.99

$

Usually ships in 2-4 days

0

21

Echo Y16077056690

SHAFT, CHOKE
(Superseded to Discontinued)

$

$

Not available

22

Echo Y18123056370

SCREW, THROTTLE
(Superseded to Discontinued)

$

$

Not available

23

Echo Y18113056640

SPRING
(Superseded to Discontinued)

$

$

Not available

24

Echo Y16061056750

SCREW, PILOT
(Superseded to Discontinued)

$

$

Not available

25

Echo Y16071056720

SPRING
(Superseded to Discontinued)

$

$

Not available

26

Echo Y18113056640

SPRING
(Superseded to Discontinued)

$

$

Not available

27

Echo Y16061056150

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

28

Echo Y16061056160

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

29

Echo Y16061056250

NEEDLE ASSY - RUBBER
(Superseded to Discontinued)

$

$

Not available
