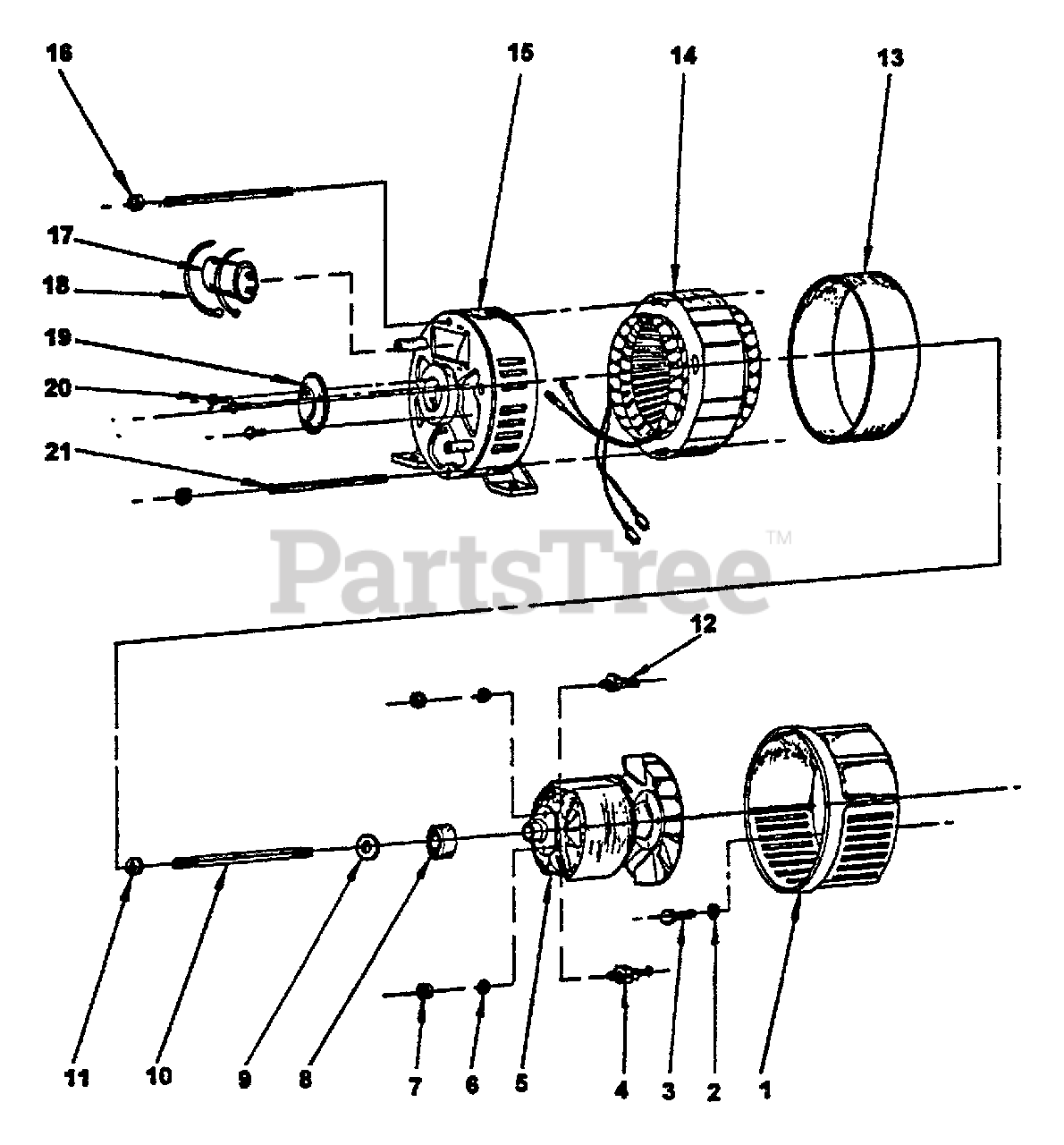

EG-1800 - Echo Generator Frame Parts Diagram

Generator

Frame Parts Diagram

  • Title
1

Echo 240411008

DRIVE END ADAPTER CASTING
(Superseded to Discontinued)

$

$

Not available

2

Echo 240015004

LOCKWASHER - 5/16"

$0.99

$

Usually ships in 2-4 days

0

3

Echo 240410025

SCREW - 5/16-24 X 1"
(Superseded to Discontinued)

$

$

Not available

4

------------------

DIODE

$

$

Not available

5

Echo 240440104

ROTOR ASSY
(Superseded to Discontinued)

$

$

Not available

6

------------------

LOCKWASHER, DIODE

$

$

Not available

7

------------------

NUT, DIODE

$

$

Not available

8

------------------

BEARING

$

$

Not available

9

Echo 240015002

LOCKWASHER - 5/16"
(Superseded to Discontinued)

$

$

Not available

10

Echo 240411036

ROTOR THRU BOLT
(Superseded to Discontinued)

$

$

Not available

11

Echo 240461100

NUT - 5/16-24 -- KEPS
(Superseded to Discontinued)

$

$

Not available

12

------------------

DIODE

$

$

Not available

13

Echo 240410021

BAND, COVER
(Superseded to Discontinued)

$

$

Not available

14

Echo 240440204

STATOR ASSY
(Superseded to Discontinued)

$

$

Not available

15

Echo 240411001

CASTING, BEARING
(Superseded to Discontinued)

$

$

Not available

16

Echo 240016005

NUT - 1/4-20 -- KEPS
(Superseded to Discontinued)

$

$

Not available

17

Echo 240420000

CAPACITOR - 50UF 370V

$72.99

$

Usually ships in 2-4 days

0

18

Echo 240020070

TIE, CABLE
(Superseded to Discontinued)

$

$

Not available

19

Echo 240410005

COVER, BEARING
(Superseded to Discontinued)

$

$

Not available

20

Echo 240410001

SCREW - 10-24 X 1/2"
(Superseded to Discontinued)

$

$

Not available

21

Echo 240411037

BOLT, STATOR
(Superseded to Discontinued)

$

$

Not available
