EG-1800 - Echo Generator Generator Parts Diagram

Generator

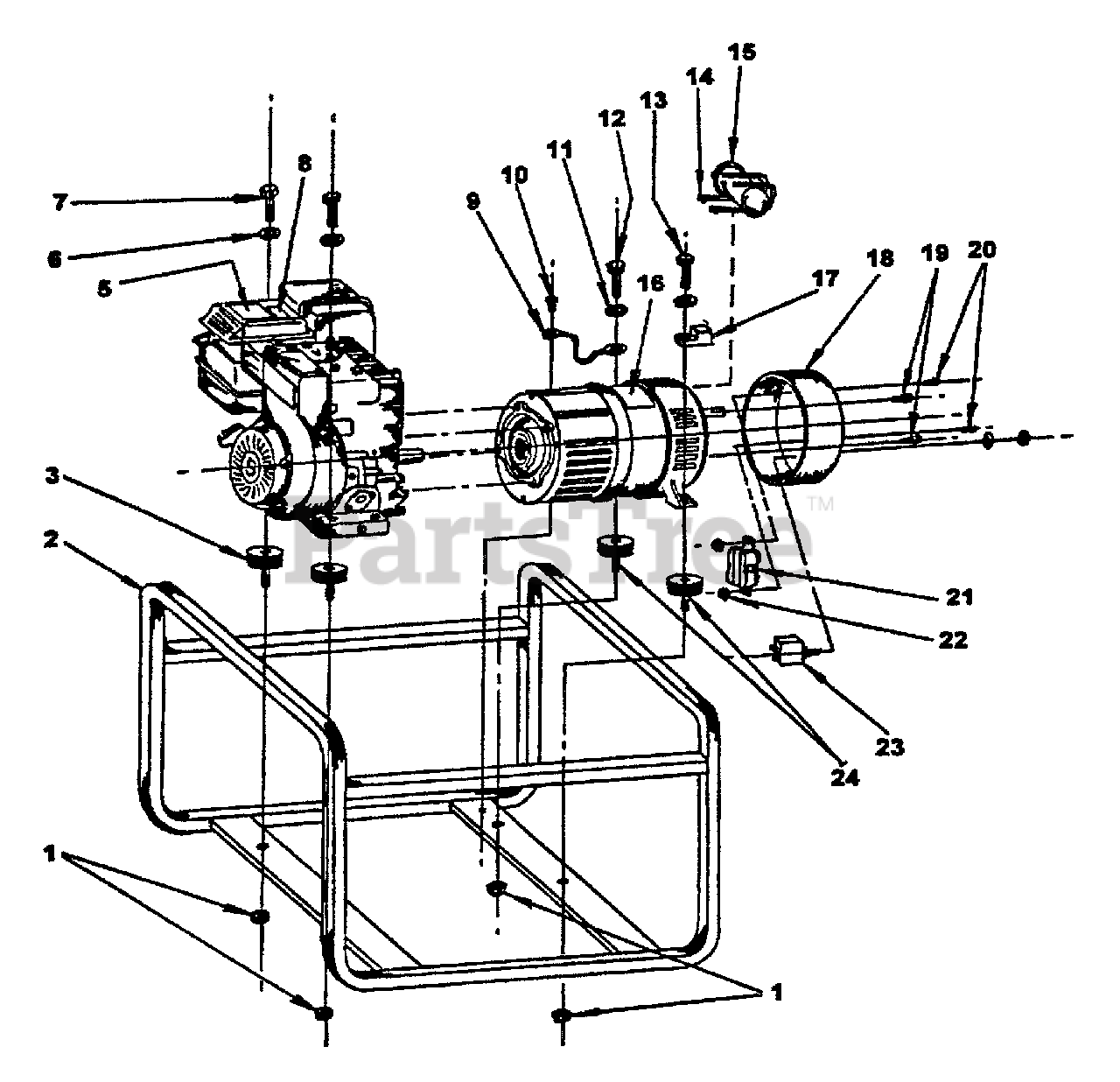

Generator Parts Diagram

  • Title

1

Echo 240016001

LOCKNUT - 5/16-18
(Superseded to Discontinued)

$

$

Not available

2

Echo 240001210

FRAME
(Superseded to Discontinued)

$

$

Not available

3

Echo 240009020

ISOLATOR, VIBRATION

$25.99

$

Usually ships in 2-4 days

0

5

Echo 240021340

LABEL - SAFETY
(Superseded to Discontinued)

$

$

Not available

6

Echo 240015004

LOCKWASHER - 5/16"

$0.99

$

Usually ships in 2-4 days

0

7

Echo 240017003

BOLT - 5/16-18 X 1-1/2"

$0.99

$

Usually ships in 2-4 days

0

8

------------------

UNKNOWN

$

$

Not available

9

Echo 240011001

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

10

Echo 240017001

SCREW - 10-24
(Superseded to Discontinued)

$

$

Not available

11

Echo 240015004

LOCKWASHER - 5/16"

$0.99

$

Usually ships in 2-4 days

0

12

Echo 240017019

5/16-18X5/8 HHS
(Superseded to Discontinued)

$

$

Not available

13

Echo 240017063

5/16-18X7/8 HHS
(Superseded to Discontinued)

$

$

Not available

14

Echo 240020070

TIE, CABLE
(Superseded to Discontinued)

$

$

Not available

15

Echo 240420000

CAPACITOR - 50UF 370V

$72.99

$

Usually ships in 2-4 days

0

16

Echo 240021250

LABEL - MODEL EG-1800
(Superseded to Discontinued)

$

$

Not available

17

Echo 240010001

LUG, GROUND - 1/0-14 CU/AL
(Superseded to Discontinued)

$

$

Not available

18

Echo 240410015

PANEL, END
(Superseded to Discontinued)

$

$

Not available

19

Echo 240410022

SCREW - 10-24
(Superseded to Discontinued)

$

$

Not available

20

Echo 240017005

8-32X3/8 RHS
(Superseded to Discontinued)

$

$

Not available

21

Echo 240007150

DUPLEX, 15A/125V
(Superseded to Discontinued)

$

$

Not available

22

Echo 240016003

NUT - 8-32 -- KEPS
(Superseded to Discontinued)

$

$

Not available

23

Echo 240013150

BREAKER, CIRCUIT - 15A/250V

$19.99

$

Usually ships in 2-4 days

0

24

Echo 240009001

ISOLATOR, VIBRATION

$18.99

$

Usually ships in 2-4 days

0
