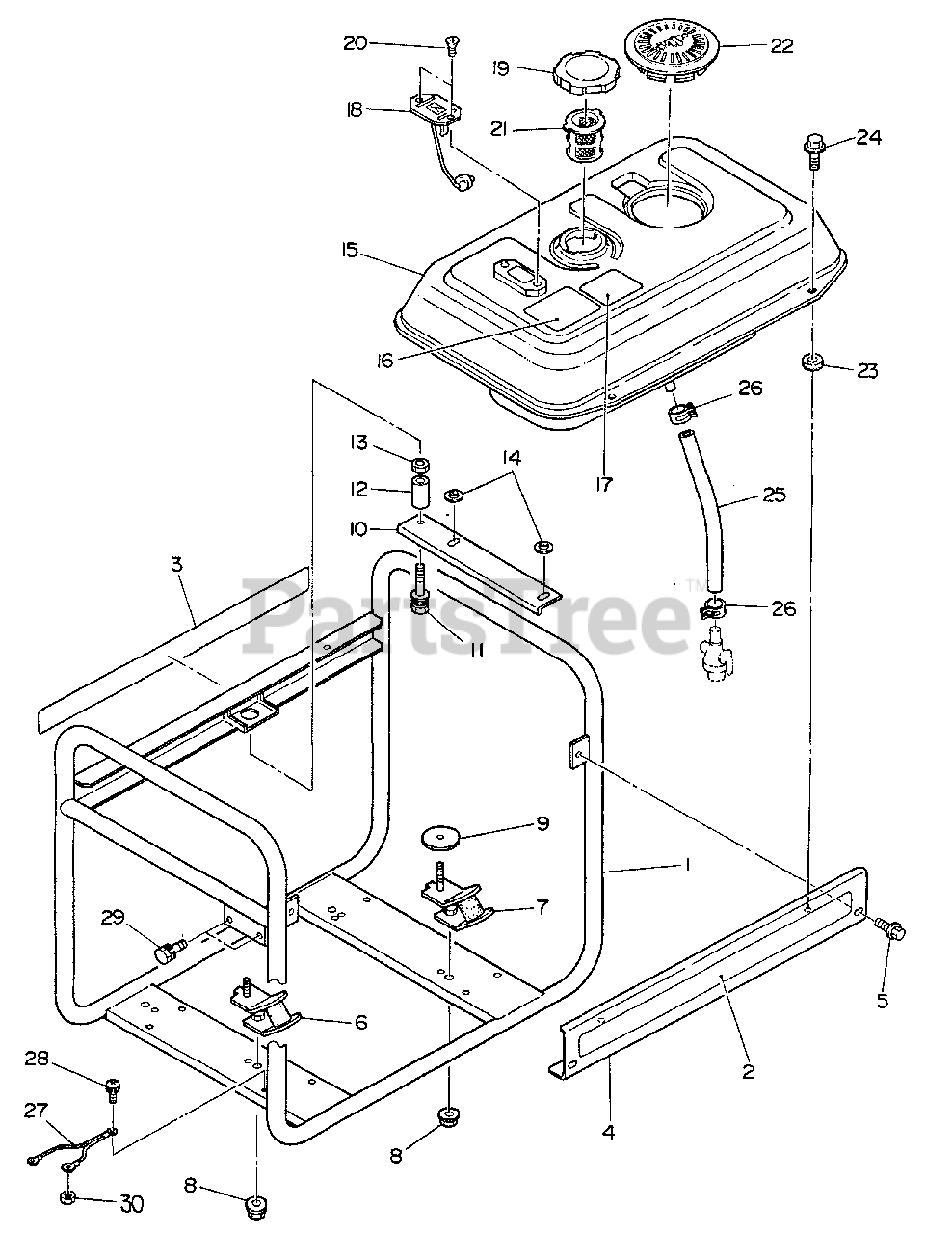

EG-2400 - Echo Generator Fuel System, Frame Parts Diagram

Generator

Fuel System, Frame Parts Diagram

  • Title

1

Echo 103887100001

PIPE FRAME ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 103889100103

LABEL - MODEL EG-2400
(Superseded to Discontinued)

$

$

Not available

3

Echo 103889100203

LABEL - MODEL EG-2400
(Superseded to Discontinued)

$

$

Not available

4

Echo 103887210001

SIDE PLATE ASSY
(Superseded to Discontinued)

$

$

Not available

5

Echo 100110060080

BOLT - FLANGE
(Superseded to Discontinued)

$

$

Not available

6

Echo 103525704118

MOUNT, RUBBER
(Superseded to Discontinued)

$

$

Not available

7

Echo 103525704218

MOUNT, RUBBER
(Superseded to Discontinued)

$

$

Not available

8

Echo 100023808000

NUT - 8 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

9

Echo 100200080030

WASHER

$

$

Currently unavailable

10

Echo 103885441008

STOPPER PLATE
(Superseded to Discontinued)

$

$

Not available

11

Echo 100011306350

BOLT
(Superseded to Discontinued)

$

$

Not available

12

Echo 103895439808

SPACER
(Superseded to Discontinued)

$

$

Not available

13

Echo 100021706000

NUT
(Superseded to Discontinued)

$

$

Not available

14

Echo 100031206000

WASHER
(Superseded to Discontinued)

$

$

Not available

15

Echo 102276072401

FUEL TANK ASSY

Note: Includes ITEMS 16-17

$287.99

$

Usually ships in 2-4 days

0

16

Echo 103895915808

LABEL - CAUTION -- OPERATION
(Superseded to Discontinued)

$

$

Not available

17

Echo 103909900103

LABEL - DANGER
(Superseded to Discontinued)

$

$

Not available

18

Echo 100648000200

FUEL GAUGE ASSY
(Superseded to Discontinued)

$

$

Not available

19

Echo 100430430015

CAP ASSY

$17.99

$

Usually ships in 2-4 days

0

20

Echo 100145050040

SCREW
(Superseded to Discontinued)

$

$

Not available

21

Echo 100641360010

FILTER, FUEL

$4.99

$

Usually ships in 2-4 days

0

22

Echo 102276600103

COVER
(Superseded to Discontinued)

$

$

Not available

23

Echo 103525432708

WASHER - RUBBER

$4.99

$

Usually ships in 2-4 days

0

24

Echo 100110060180

BOLT - FLANGE
(Superseded to Discontinued)

$

$

Not available

25

Echo 100851110000

RUBBER PIPE (11.5 X 17.5 X 230mm)

$7.49

$

In Stock, only 1 left!

0

26

Echo 100561170010

CLAMP, HOSE
(Superseded to Discontinued)

$

$

Not available

27

Echo 103883900101

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

28

Echo 103763910001

SCREW
(Superseded to Discontinued)

$

$

Not available

29

Echo 100011406160

BOLT
(Superseded to Discontinued)

$

$

Not available

30

Echo 103914900203

NUT
(Superseded to Discontinued)

$

$

Not available
