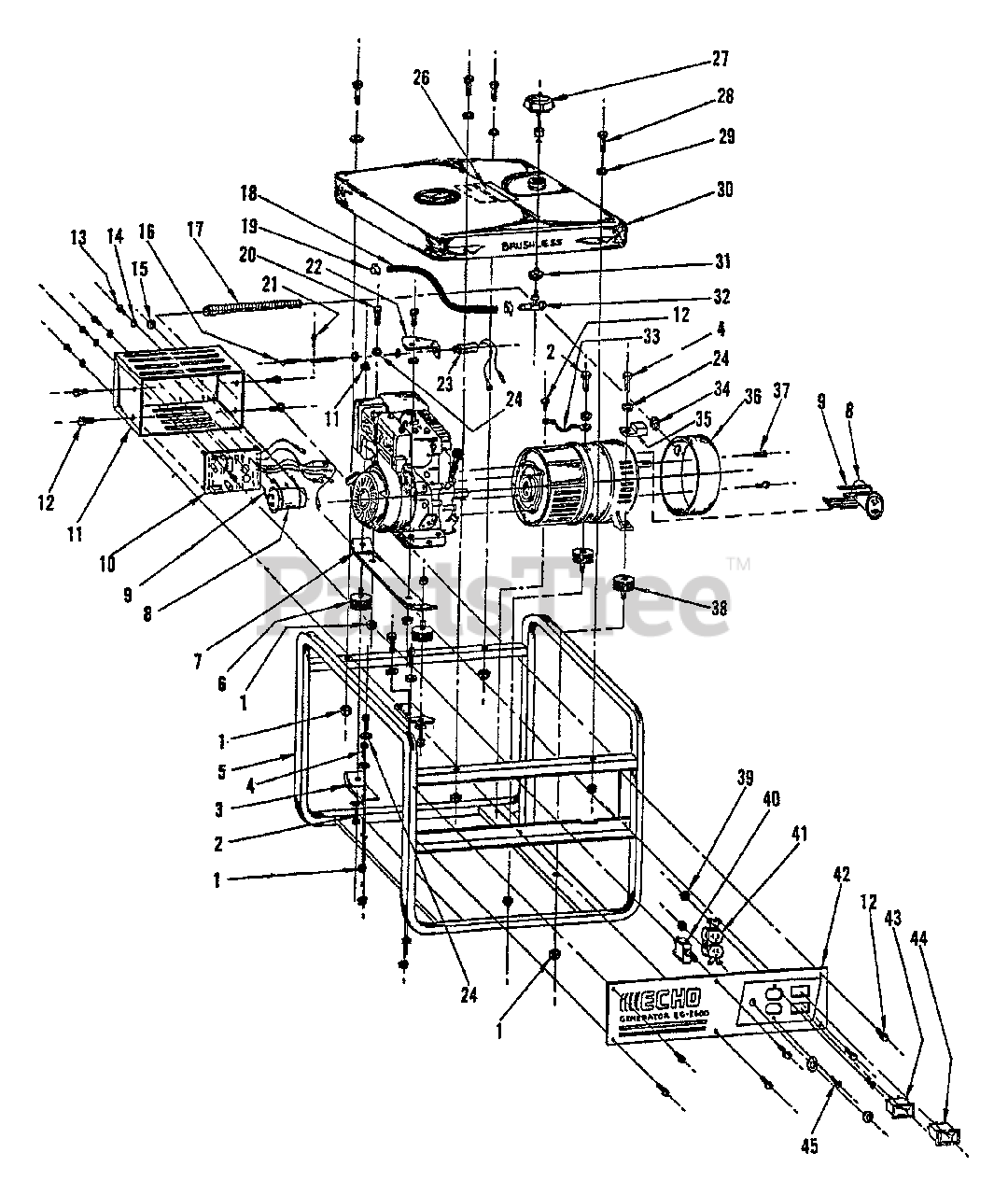

EG-2600 - Echo Generator Electrical Panel, Idle Ctrl, Fuel Sys, Frame Parts Diagram

Generator

Electrical Panel, Idle Ctrl, Fuel Sys, Frame Parts Diagram

  • Title

1

Echo 240016001

LOCKNUT - 5/16-18
(Superseded to Discontinued)

$

$

Not available

2

Echo 240017019

5/16-18X5/8 HHS
(Superseded to Discontinued)

$

$

Not available

3

Echo 240041004

BRACKET, FOCUS
(Superseded to Discontinued)

$

$

Not available

4

Echo 240017063

5/16-18X7/8 HHS
(Superseded to Discontinued)

$

$

Not available

5

Echo 240001200

FRAME
(Superseded to Discontinued)

$

$

Not available

6

Echo 240009001

ISOLATOR, VIBRATION

$22.99

$

Usually ships in 2-4 days

0

7

Echo 240041006

RAIL, FOCUS
(Superseded to Discontinued)

$

$

Not available

8

Echo 240420000

CAPACITOR - 50UF 370V

$87.99

$

Usually ships in 2-4 days

0

9

Echo 240020070

TIE, CABLE
(Superseded to Discontinued)

$

$

Not available

10

Echo 248034010

CIRCUIT, ECHO-MIZER
(Superseded to Discontinued)

$

$

Not available

11

Echo 240028050

BOX, CONTROL
(Superseded to Discontinued)

$

$

Not available

12

Echo 240017001

SCREW - 10-24
(Superseded to Discontinued)

$

$

Not available

13

Echo 240017060

6-32X 1/4 RHS
(Superseded to Discontinued)

$

$

Not available

14

Echo 240015011

LOCKWASHER - 6
(Superseded to Discontinued)

$

$

Not available

15

Echo 240020022

GROMMET
(Superseded to Discontinued)

$

$

Not available

16

Echo 240034115

SPRING, ECHO-MIZER
(Superseded to Discontinued)

$

$

Not available

17

Echo 240029000

CONDUIT - 12"
(Superseded to Discontinued)

$

$

Not available

18

Echo 240300250

LINE, FUEL - 24"
(Superseded to Discontinued)

$

$

Not available

19

Echo 240024001

CLAMP - 1/4"
(Superseded to Discontinued)

$

$

Not available

20

Echo 240017003

BOLT - 5/16-18 X 1-1/2"

$0.99

$

Usually ships in 2-4 days

0

21

Echo 240034114

PIN, SPLIT
(Superseded to Discontinued)

$

$

Not available

22

Echo 240017017

PIN, SPLIT
(Superseded to Discontinued)

$

$

Not available

23

Echo 248034104

SOLENOID ASSY
(Superseded to Discontinued)

$

$

Not available

24

Echo 240015004

LOCKWASHER - 5/16"

$0.99

$

Usually ships in 2-4 days

0

26

Echo 240021340

LABEL - SAFETY
(Superseded to Discontinued)

$

$

Not available

27

Echo 240020003

CAP, FUEL

$58.99

$

Usually ships in 2-4 days

0

28

Echo 240017020

HHS 5/16-18X1.75
(Superseded to Discontinued)

$

$

Not available

29

Echo 240015002

LOCKWASHER - 5/16"
(Superseded to Discontinued)

$

$

Not available

30

Echo 240022002

TANK, FUEL - 3.5 GALLON
(Superseded to Discontinued)

$

$

Not available

31

------------------

GROMMET

Note: REPLACE FUEL TANK

$

$

Not available

32

------------------

VALVE, FUEL TANK

Note: REPLACE FUEL TANK

$

$

Not available

33

Echo 240011001

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

34

Echo 240020094

GROMMET
(Superseded to Discontinued)

$

$

Not available

35

Echo 240010001

LUG, GROUND - 1/0-14 CU/AL
(Superseded to Discontinued)

$

$

Not available

36

Echo 240410006

COVER, END
(Superseded to Discontinued)

$

$

Not available

37

Echo 240410022

SCREW - 10-24
(Superseded to Discontinued)

$

$

Not available

38

Echo 240009050

ISOLATOR, VIBRATION
(Superseded to Discontinued)

$

$

Not available

39

Echo 240016003

NUT - 8-32 -- KEPS
(Superseded to Discontinued)

$

$

Not available

40

Echo 240013150

BREAKER, CIRCUIT - 15A/250V

$23.99

$

Usually ships in 2-4 days

0

41

Echo 240007150

DUPLEX, 15A/125V
(Superseded to Discontinued)

$

$

Not available

42

Echo 246026007

PANEL, SILKSCREENED
(Superseded to Discontinued)

$

$

Not available

43

Echo 240027032

SWITCH, ECHO-MISER
(Superseded to Discontinued)

$

$

Not available

44

Echo 240027031

SWITCH, IGNITION
(Superseded to Discontinued)

$

$

Not available

45

Echo 240017005

8-32X3/8 RHS
(Superseded to Discontinued)

$

$

Not available
