EG-3500 - Echo Generator (SN: 02738 - 99999) Carburetor Parts Diagram

Generator

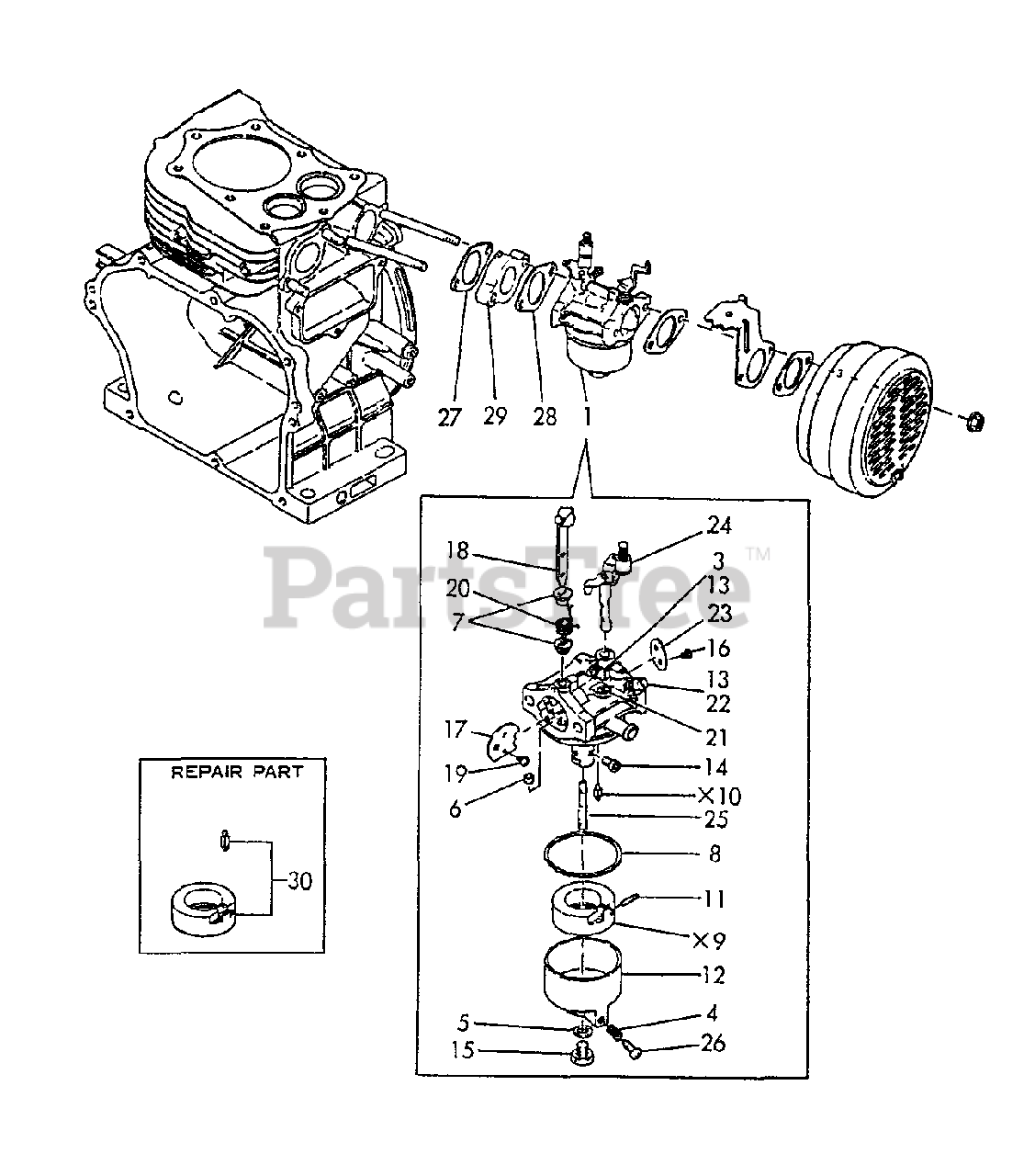

Carburetor Parts Diagram

  • Title

1

Echo Y16087056020

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

3

Echo Y18123056370

SCREW, THROTTLE
(Superseded to Discontinued)

$

$

Not available

4

Echo Y18123056380

SPRING

$4.99

$

Usually ships in 2-4 days

0

5

Echo Y16081056550

WASHER

$1.99

$

Usually ships in 2-4 days

0

6

Echo Y16081056580

RING, CHOKE SHAFT
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16081056590

RING, CHOKE LEVER
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16021056610

GASKET, FLOAT CHAMBER

$

$

Not available

9

Echo Y16081056620

FLOAT
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16081056750

NEEDLE
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16061056631

PIN
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16081056640

BODY
(Superseded to Discontinued)

$

$

Not available

13

Echo Y18113056640

SPRING
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16081056650

JET, MAIN
(Superseded to Discontinued)

$

$

Not available

15

Echo Y16061056660

BOLT
(Superseded to Discontinued)

$

$

Not available

16

Echo Y16012056670

SCREW
(Superseded to Discontinued)

$

$

Not available

17

Echo Y16087056680

VALVE, CHOKE
(Superseded to Discontinued)

$

$

Not available

18

Echo Y16087056700

LEVER, CHOKE
(Superseded to Discontinued)

$

$

Not available

19

Echo Y16071056710

SCREW

$1.49

$

Usually ships in 2-4 days

0

20

Echo Y16087056720

SPRING, CHOKE
(Superseded to Discontinued)

$

$

Not available

21

Echo Y16081056790

JET, PILOT
(Superseded to Discontinued)

$

$

Not available

22

Echo Y16061056750

SCREW, PILOT
(Superseded to Discontinued)

$

$

Not available

23

Echo Y16081056780

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

24

Echo Y16087056770

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

25

Echo Y16081056820

NOZZLE, MAIN
(Superseded to Discontinued)

$

$

Not available

26

Echo Y16061056900

SCREW
(Superseded to Discontinued)

$

$

Not available

27

Echo Y16081056140

GASKET, SPACER

$1.99

$

Usually ships in 2-4 days

0

28

Echo Y16081056150

GASKET, INTAKE

$1.99

$

Usually ships in 2-4 days

0

29

Echo Y16081056160

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

30

Echo Y16081056250

NEEDLE ASSY - RUBBER
(Superseded to Discontinued)

$

$

Not available
