EG-3500 - Echo Generator (SN: 02738 - 99999) Crankshaft, Main Bearing Parts Diagram

Generator

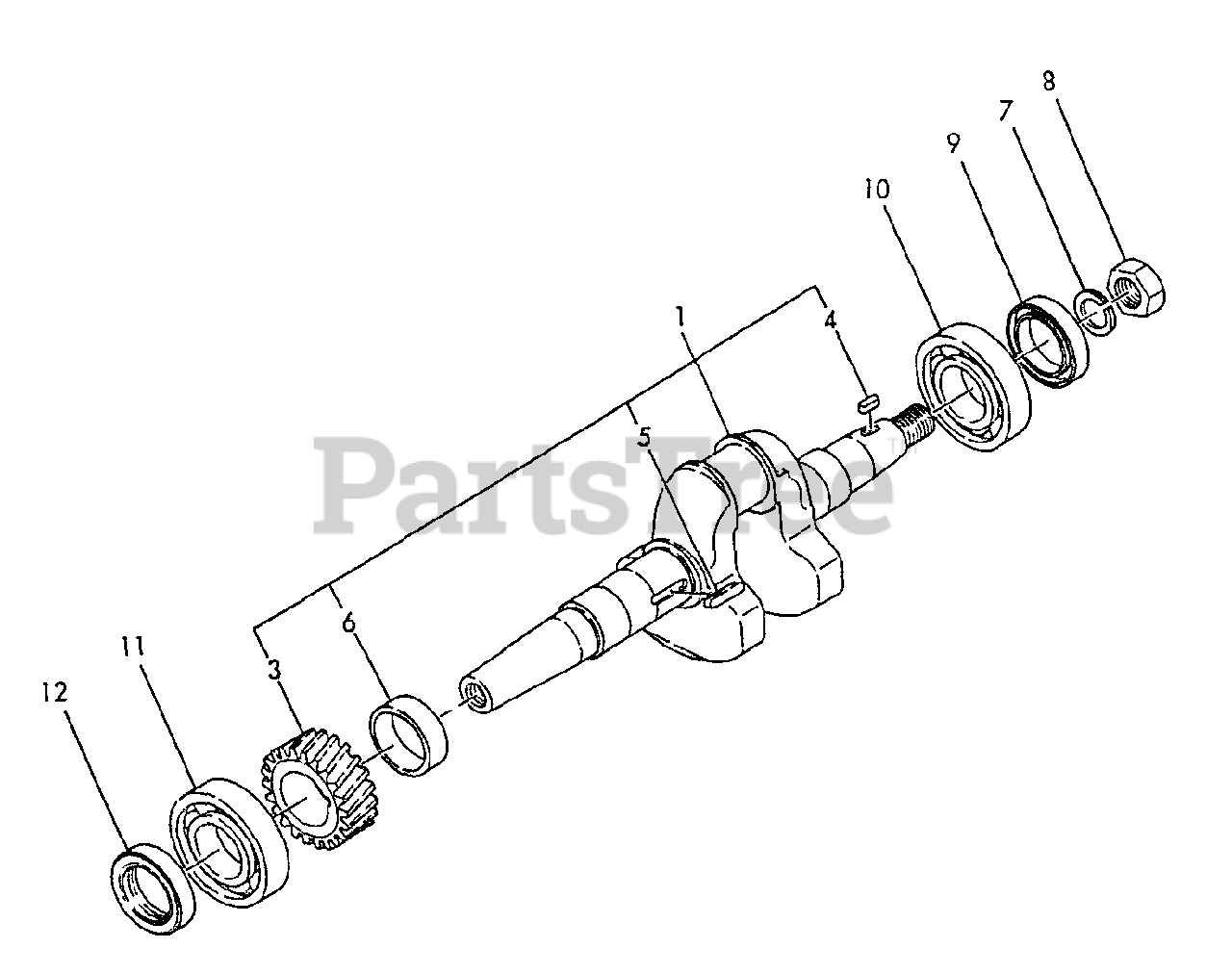

Crankshaft, Main Bearing Parts Diagram

  • Title

1

Echo Y76087021700

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16081021200

GEAR, CRANKSHAFT
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16061021290

KEY - 4X10

$2.49

$

Usually ships in 2-4 days

0

5

Echo Y16081021290

KEY - 4X24
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16088021610

SPACER, GEAR
(Superseded to Discontinued)

$

$

Not available

7

Echo Y22217160000

LOCKWASHER - 10
(Superseded to Discontinued)

$

$

Not available

8

Echo Y26736160002

NUT - 16
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16021002220

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

10

Echo Y24101062050

BEARING, BALL - 6205C3
(Superseded to Discontinued)

$

$

Not available

11

Echo Y24101062060

BEARING, BALL - 6206C4
(Superseded to Discontinued)

$

$

Not available

12

Echo Y10122002220

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available
