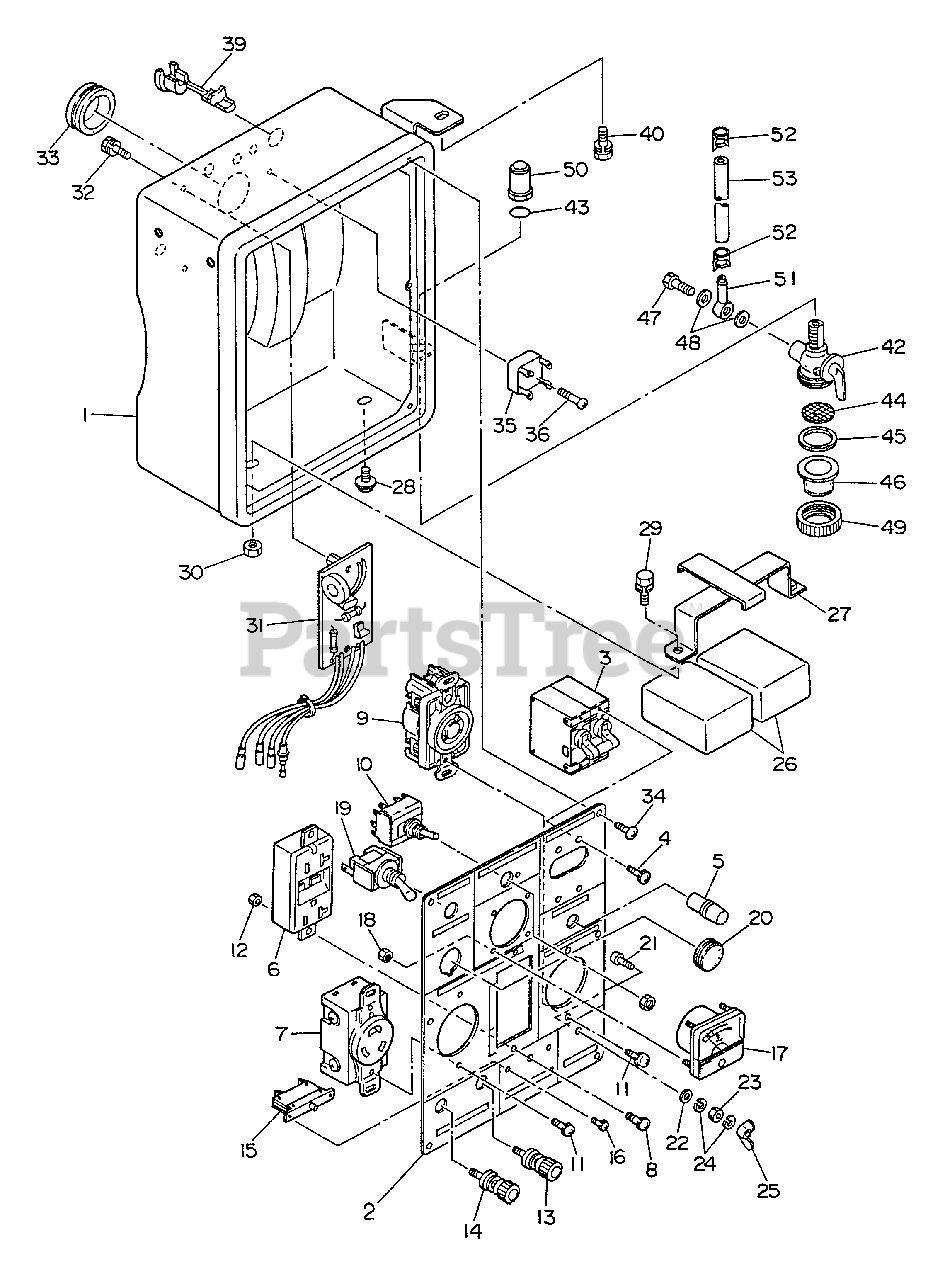

EG-3501 - Echo Generator Electrical Panel Parts Diagram

Generator

Electrical Panel Parts Diagram

  • Title

1

Echo 103898010100

CONTROL BOX ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 1-36

$

$

Not available

1

Echo 103898000101

CONTROL BOX ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 103898115000

CONTROL PANEL ASSY
(Superseded to Discontinued)

Note: Includes items 2 thru 25

$

$

Not available

2

Echo 103898105001

CONTROL PANEL ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo 103924300203

CIRCUIT BREAKER - 250V-14A
(Superseded to 103924310203)

$

$

Not available

4

Echo 100043503060

SCREW
(Superseded to Discontinued)

$

$

Not available

5

Echo 103207517308

LAMP, NEON
(Superseded to Discontinued)

$

$

Not available

6

Echo 103904575008

AC RECEPTACLE - 125V-20A, GFCI
(Superseded to Discontinued)

$

$

Not available

7

Echo 103564571108

AC RECEPTACLE - 125/250V-20A
(Superseded to Discontinued)

$

$

Not available

8

Echo 100043504100

SCREW
(Superseded to Discontinued)

$

$

Not available

9

Echo 103534572408

AC RECEPTACLE - 125/250V-20A
(Superseded to Discontinued)

$

$

Not available

10

Echo 103554561308

SWITCH ASSY

$109.99

$

Usually ships in 2-4 days

0

11

Echo 103565993708

SCREW
(Superseded to Discontinued)

$

$

Not available

12

Echo 100021704000

NUT
(Superseded to Discontinued)

$

$

Not available

13

Echo 103634570108

BOLT, TERMINAL - RED
(Superseded to Discontinued)

$

$

Not available

14

Echo 103634570008

BOLT, TERMINAL - BLACK
(Superseded to Discontinued)

$

$

Not available

15

Echo 103524562008

CIRCUIT BREAKER - 10A DC
(Superseded to Discontinued)

$

$

Not available

16

Echo 100043503060

SCREW
(Superseded to Discontinued)

$

$

Not available

17

Echo 103914790001

AC VOLT METER

$22.99

$

Usually ships in 2-4 days

0

18

Echo 100021703000

NUT
(Superseded to Discontinued)

$

$

Not available

19

Echo 103444561508

SWITCH

$24.99

$

Usually ships in 2-4 days

0

20

Echo 103894755208

GROMMET
(Superseded to Discontinued)

$

$

Not available

21

Echo 103564990708

SCREW
(Superseded to Discontinued)

$

$

Not available

22

Echo 103534990308

WASHER
(Superseded to Discontinued)

$

$

Not available

23

Echo 103534990208

NUT
(Superseded to Discontinued)

$

$

Not available

24

Echo 103320005008

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

25

Echo 103534990108

WINGNUT
(Superseded to Discontinued)

$

$

Not available

26

Echo 103762200003

CONDENSER

$158.99

$

Usually ships in 2-4 days

0

27

Echo 103874500201

CONDENSER BRACKET ASSY
(Superseded to Discontinued)

$

$

Not available

28

Echo 100110060010

BOLT - FLANGE
(Superseded to Discontinued)

$

$

Not available

29

Echo 103914900103

BOLT
(Superseded to Discontinued)

$

$

Not available

30

Echo 100022706000

NUT
(Superseded to Discontinued)

$

$

Not available

31

Echo 103883060308

IDLE CONTROL UNIT

$364.99

$

Usually ships in 2-4 days

0

32

Echo 100043504100

SCREW
(Superseded to Discontinued)

$

$

Not available

33

Echo 103898900103

GROMMET
(Superseded to Discontinued)

$

$

Not available

34

Echo 103534990408

SCREW -- TAPPING
(Superseded to Discontinued)

$

$

Not available

35

Echo 103534580408

DIODE STACK ASSY

$

$

Not available

36

Echo 100150040070

SCREW -- TAPPING
(Superseded to Discontinued)

$

$

Not available

39

Echo 103635600008

GROMMET
(Superseded to Discontinued)

$

$

Not available

40

Echo 100011406160

BOLT
(Superseded to Discontinued)

$

$

Not available

42

Echo 100642002311

FILTER, FUEL

Note: Includes items 42 thru 49

$22.99

$

In Stock, only 1 left!

0

43

Echo 100642000330

O-RING
(Superseded to Discontinued)

$

$

Not available

44

Echo 100642000220

FILTER

$3.49

$

In Stock, only 2 left!

0

45

Echo 100642000230

SEAL

$4.49

$

Usually ships in 2-4 days

0

46

Echo 100642001910

CUP

$4.99

$

In Stock, only 1 left!

0

47

Echo 100642000240

BOLT

$2.49

$

Usually ships in 2-4 days

0

48

Echo 100642000250

WASHER
(Superseded to Discontinued)

$

$

Not available

49

Echo 100642002410

LOCKNUT

$8.99

$

In Stock, only 1 left!

0

50

Echo 100533090020

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

51

Echo 100521070042

BOLT, BANJO
(Superseded to Discontinued)

$

$

Not available

52

Echo 100561110020

CLAMP, HOSE
(Superseded to Discontinued)

$

$

Not available

53

Echo 100851060000

RUBBER PIPE (6 X 12 X 160mm)

$15.99

$

Usually ships in 2-4 days

0
