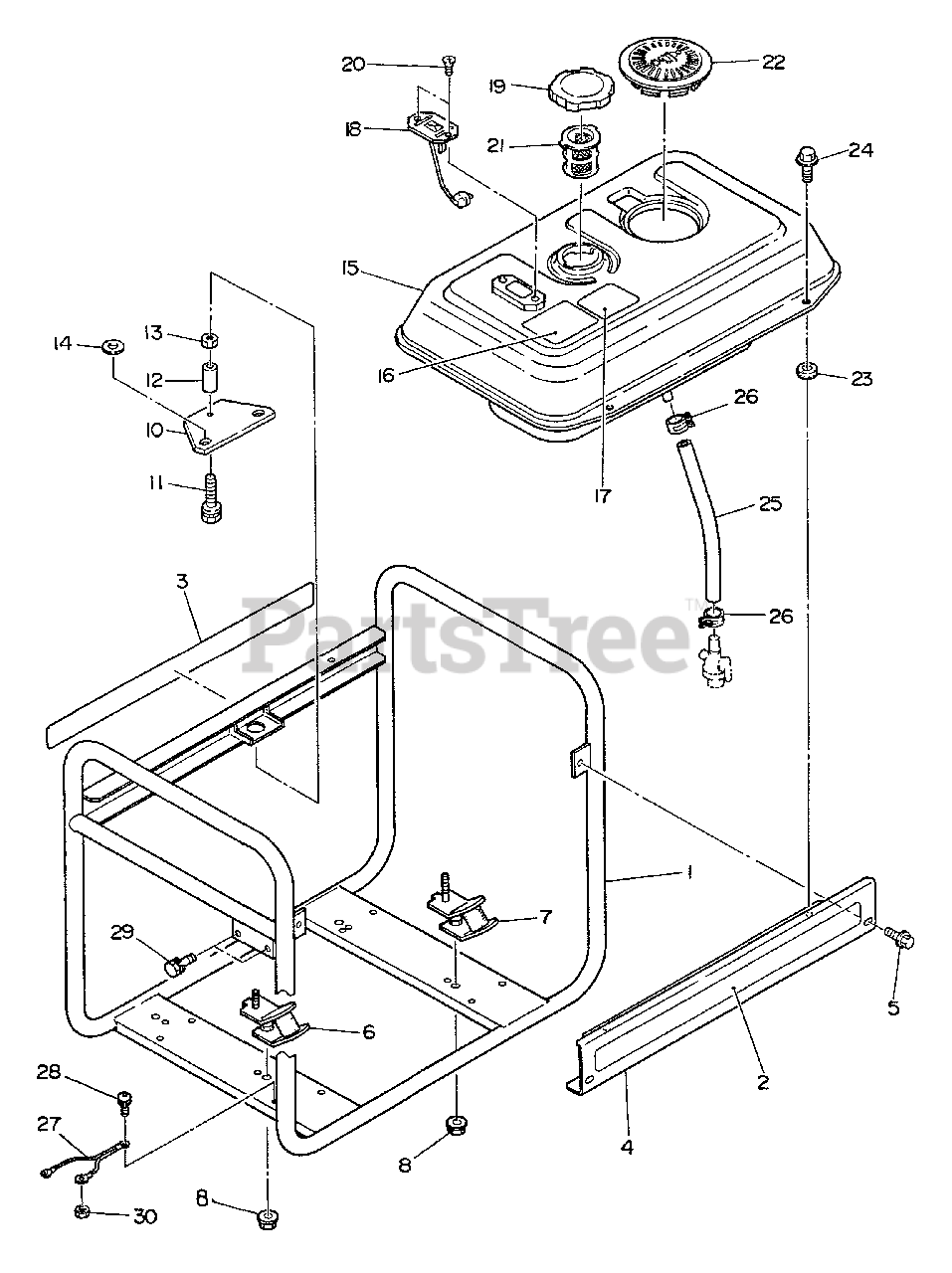

EG-3501 - Echo Generator Fuel Tank, Pipe Frame Parts Diagram

Generator

Fuel Tank, Pipe Frame Parts Diagram

  • Title

1

Echo 103897110001

PIPE FRAME ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 103899100403

LABEL - MODEL EG-3501
(Superseded to Discontinued)

$

$

Not available

3

Echo 103899100503

LABEL - MODEL EG-3501
(Superseded to Discontinued)

$

$

Not available

4

Echo 103897210001

SIDE PLATE ASSY
(Superseded to Discontinued)

$

$

Not available

5

Echo 100110060080

BOLT - FLANGE
(Superseded to Discontinued)

$

$

Not available

6

Echo 103525704118

MOUNT, RUBBER
(Superseded to Discontinued)

$

$

Not available

7

Echo 103525704218

MOUNT, RUBBER
(Superseded to Discontinued)

$

$

Not available

8

Echo 100023808000

NUT - 8 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

10

Echo 103895441108

STOPPER PLATE
(Superseded to Discontinued)

$

$

Not available

11

Echo 100011306350

BOLT
(Superseded to Discontinued)

$

$

Not available

12

Echo 103895439808

SPACER
(Superseded to Discontinued)

$

$

Not available

13

Echo 100021706000

NUT
(Superseded to Discontinued)

$

$

Not available

14

Echo 100031206000

WASHER
(Superseded to Discontinued)

$

$

Not available

15

Echo 102346900501

FUEL TANK ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 16-17

$

$

Not available

16

Echo 103895915808

LABEL - CAUTION -- OPERATION
(Superseded to Discontinued)

$

$

Not available

17

Echo 103909900103

LABEL - DANGER
(Superseded to Discontinued)

$

$

Not available

18

Echo 100648000400

LEVEL ASSY
(Superseded to Discontinued)

$

$

Not available

19

Echo 100430430015

CAP ASSY

$18.99

$

Usually ships in 2-4 days

0

20

Echo 100145050040

SCREW
(Superseded to Discontinued)

$

$

Not available

21

Echo 100641360010

FILTER, FUEL

$8.49

$

Usually ships in 2-4 days

0

22

Echo 102276600103

COVER
(Superseded to Discontinued)

$

$

Not available

23

Echo 103525432708

WASHER - RUBBER

$5.49

$

Usually ships in 2-4 days

0

24

Echo 100110060180

BOLT - FLANGE
(Superseded to Discontinued)

$

$

Not available

25

Echo 100851110000

RUBBER PIPE (11.5 X 17.5 X 230mm)

$7.49

$

In Stock, only 1 left!

0

26

Echo 100561170010

CLAMP, HOSE
(Superseded to Discontinued)

$

$

Not available

27

Echo 103883900101

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

28

Echo 103763910001

SCREW
(Superseded to Discontinued)

$

$

Not available

29

Echo 100011406160

BOLT
(Superseded to Discontinued)

$

$

Not available

30

Echo 103914900203

NUT
(Superseded to Discontinued)

$

$

Not available
