EG-3501 - Echo Generator GENERATOR Parts Diagram

Generator

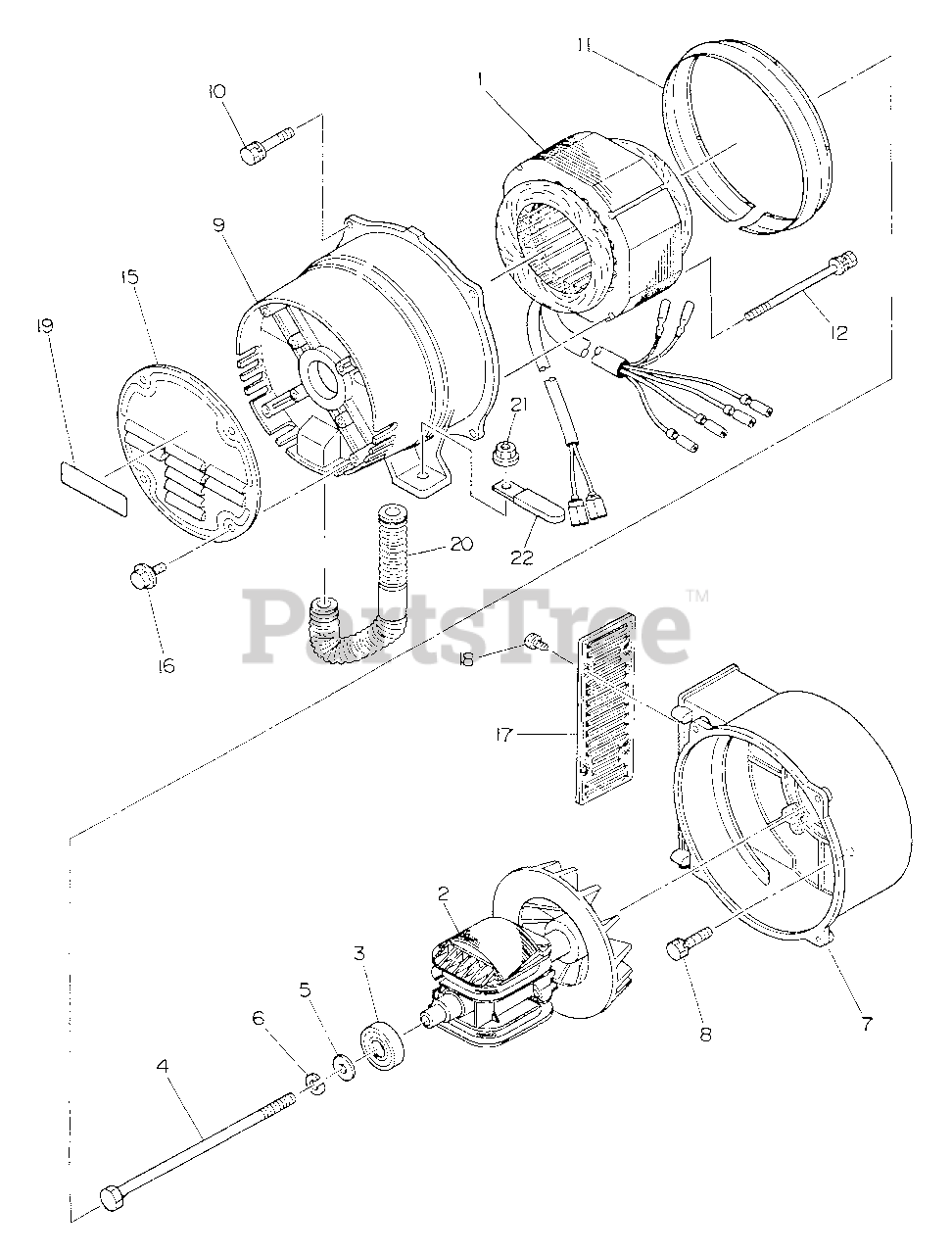

GENERATOR Parts Diagram

  • Title

1

Echo 103922130001

STATOR ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 103922100001

ROTOR ASSY
(Superseded to Discontinued)

Note: Includes ITEM 3

$

$

Not available

3

Echo 103535820808

BEARING, BALL
(Superseded to Discontinued)

$

$

Not available

4

Echo 103922510003

BOLT
(Superseded to Discontinued)

$

$

Not available

5

Echo 100200100170

WASHER
(Superseded to Discontinued)

$

$

Not available

6

Echo 100032010000

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

7

Echo 103895410113

COVER - FRONT
(Superseded to Discontinued)

$

$

Not available

8

Echo 100011308200

BOLT
(Superseded to Discontinued)

$

$

Not available

9

Echo 103885400101

REAR COVER ASSY
(Superseded to Discontinued)

$

$

Not available

10

Echo 100011406250

BOLT
(Superseded to Discontinued)

$

$

Not available

11

Echo 103885438103

SUPPORT RING
(Superseded to Discontinued)

$

$

Not available

12

Echo 103922520003

BOLT
(Superseded to Discontinued)

$

$

Not available

15

Echo 103885500113

COVER
(Superseded to Discontinued)

$

$

Not available

16

Echo 100110060010

BOLT - FLANGE
(Superseded to Discontinued)

$

$

Not available

17

Echo 103885510103

PROTECTOR
(Superseded to Discontinued)

$

$

Not available

18

Echo 100152050010

SCREW -- TAPPING
(Superseded to Discontinued)

$

$

Not available

19

Echo 103899200203

LABEL - GENERATOR
(Superseded to Discontinued)

$

$

Not available

20

Echo 103912900013

BUSHING
(Superseded to Discontinued)

$

$

Not available

21

Echo 100023808000

NUT - 8 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

22

Echo 100566000170

CLAMP
(Superseded to Discontinued)

$

$

Not available
