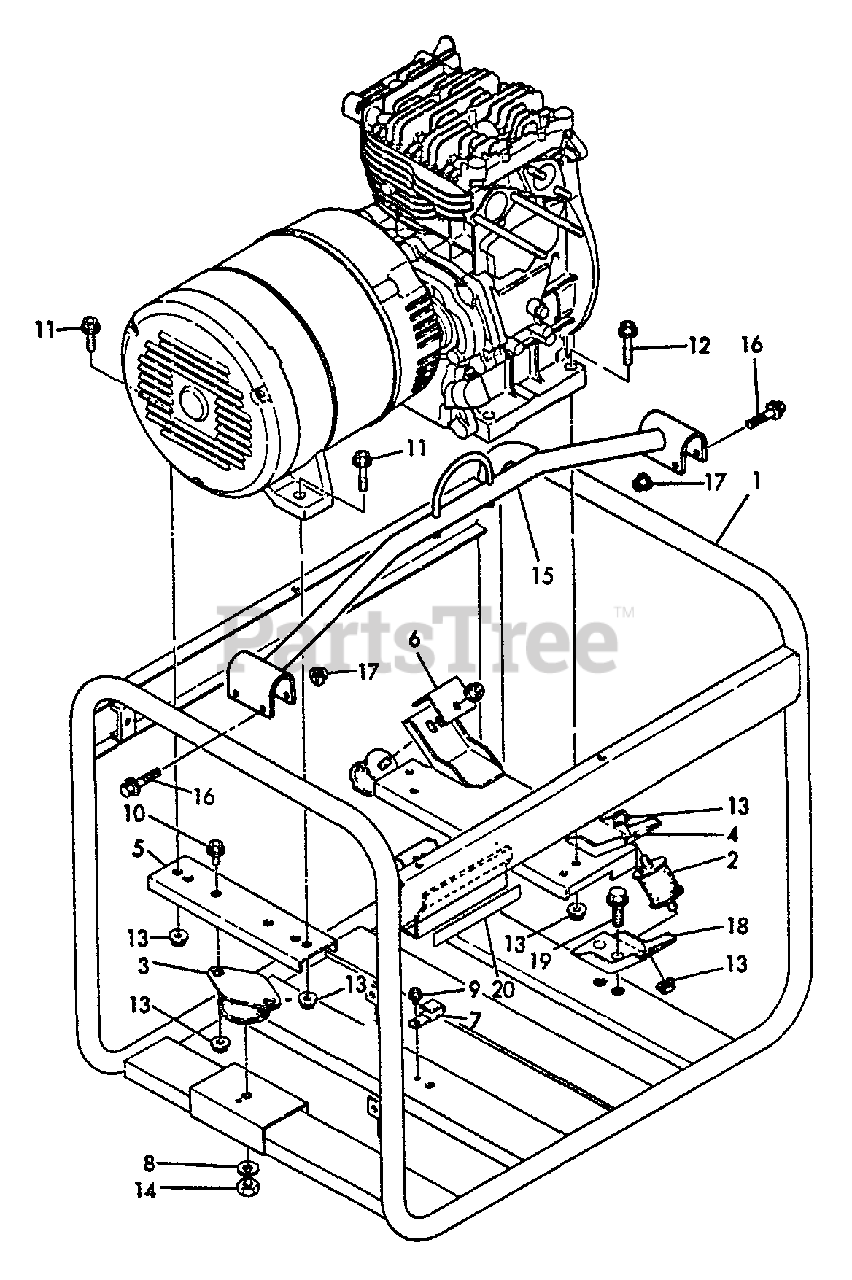

EG-4300 E - Echo Generator Frame Parts Diagram

Generator

Frame Parts Diagram

  • Title

1

Echo Y18392008110

FRAME
(Superseded to Discontinued)

$

$

Not available

2

Echo Y18392008210

DAMPER, FRONT
(Superseded to Discontinued)

$

$

Not available

3

Echo Y18392008220

DAMPER, REAR
(Superseded to Discontinued)

$

$

Not available

4

Echo Y18392008230

STAY, DAMPER
(Superseded to Discontinued)

$

$

Not available

5

Echo Y18372008250

STAY, REAR DAMPER
(Superseded to Discontinued)

$

$

Not available

6

Echo Y18392008260

COVER, DAMPER
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16071078710

CLAMP
(Superseded to Discontinued)

$

$

Not available

8

Echo Y22217100000

LOCKWASHER - 10
(Superseded to Discontinued)

$

$

Not available

9

Echo Y26106060082

BOLT - 6X8 -- PLATED

$0.99

$

Usually ships in 2-4 days

0

10

Echo Y26106080202

BOLT - 8X20 -- PLATED
(Superseded to Discontinued)

$

$

Not available

11

Echo Y26106080302

BOLT - 8X30 -- PLATED
(Superseded to Discontinued)

$

$

Not available

12

Echo Y26106080382

BOLT - 8X38 -- PLATED
(Superseded to Discontinued)

$

$

Not available

13

Echo Y26366080002

NUT - 8
(Superseded to Discontinued)

$

$

Not available

14

Echo Y26716100002

NUT - 10
(Superseded to Discontinued)

$

$

Not available

15

Echo Y18392008400

HOOK

$

$

Currently unavailable

16

Echo Y26106060402

BOLT - 6X40
(Superseded to Discontinued)

$

$

Not available

17

Echo Y26366060002

NUT - 6 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

18

Echo Y18362108260

DAMPER STAY, LOWER
(Superseded to Discontinued)

$

$

Not available

19

Echo Y26106080162

BOLT - 8X16 -- PLATED
(Superseded to Discontinued)

$

$

Not available

20

Echo Y18382507910

SHEET, FRAME
(Superseded to Discontinued)

$

$

Not available
