EG-4300 - Echo Generator (SN: 00000 - 00845) GENERATOR Parts Diagram

Generator

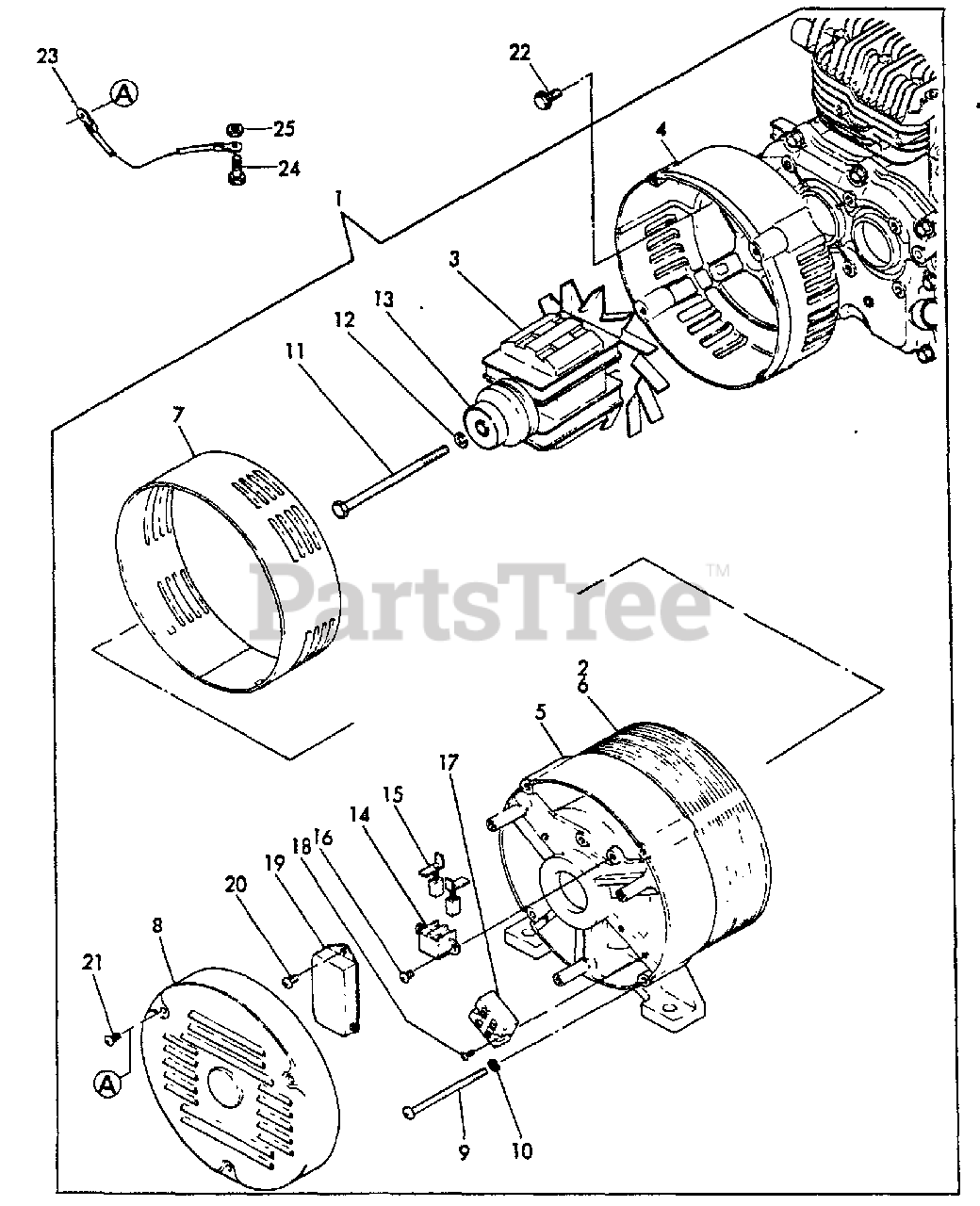

GENERATOR Parts Diagram

  • Title

1

Echo Y18392074110

GENERATOR 3.8KVA
(Superseded to Discontinued)

$

$

Not available

2

Echo Y18392074220

STATOR ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y18392074350

ROTOR ASSY
(Superseded to Discontinued)

$

$

Not available

4

Echo Y18382074150

COVER - FRONT
(Superseded to Discontinued)

$

$

Not available

5

Echo Y18382074260

COVER - REAR
(Superseded to Discontinued)

$

$

Not available

6

Echo Y18392074300

STATOR
(Superseded to Discontinued)

$

$

Not available

7

Echo Y18392074090

BAND
(Superseded to Discontinued)

$

$

Not available

8

Echo Y18382074450

COVER, END
(Superseded to Discontinued)

$

$

Not available

9

Echo Y18386074410

BOLT, THROUGH
(Superseded to Discontinued)

$

$

Not available

10

Echo Y22217060000

LOCKWASHER - 6
(Superseded to Discontinued)

$

$

Not available

11

Echo Y18392074430

BOLT
(Superseded to Discontinued)

$

$

Not available

12

Echo Y22217100000

LOCKWASHER - 10
(Superseded to Discontinued)

$

$

Not available

13

Echo Y18382074360

BEARING, BALL
(Superseded to Discontinued)

$

$

Not available

14

Echo Y18382074240

HOLDER, BRUSH
(Superseded to Discontinued)

$

$

Not available

15

Echo Y18382074220

BRUSH ASSY
(Superseded to Discontinued)

$

$

Not available

16

Echo Y18362074310

SCREW - 4X10
(Superseded to Discontinued)

$

$

Not available

17

Echo Y18382074270

TERMINAL
(Superseded to Discontinued)

$

$

Not available

18

Echo Y18382074300

SCREW - 5X14
(Superseded to Discontinued)

$

$

Not available

19

Echo Y18362174170

A.V.R.
(Superseded to Discontinued)

$

$

Not available

20

Echo Y18382074300

SCREW - 5X14
(Superseded to Discontinued)

$

$

Not available

21

Echo Y18362074310

SCREW - 4X10
(Superseded to Discontinued)

$

$

Not available

22

Echo Y26106080202

BOLT - 8X20 -- PLATED
(Superseded to Discontinued)

$

$

Not available

23

Echo Y18362174450

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

24

Echo Y26113060162

BOLT - 6X16 -- PLATED
(Superseded to Discontinued)

$

$

Not available

25

Echo Y26753060002

LOCKNUT - 6 -- PLATED
(Superseded to Discontinued)

$

$

Not available
