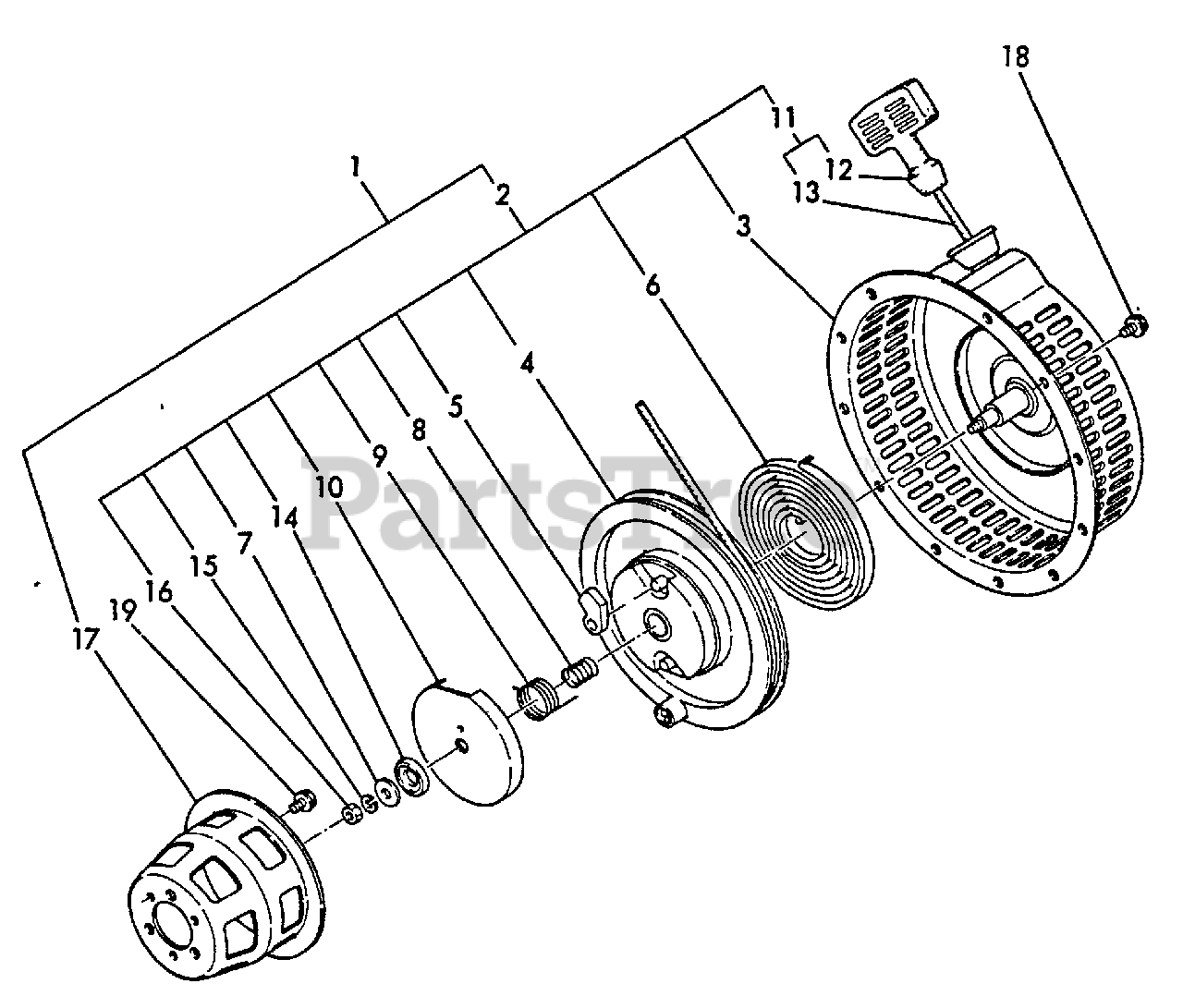

EG-4300 - Echo Generator (SN: 00000 - 00845) Starter Parts Diagram

Generator

Starter Parts Diagram

  • Title

1

Echo Y16094076050

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16094076250

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16094076510

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16091076520

PULLEY

$72.99

$

Usually ships in 2-4 days

0

5

Echo Y16091076530

RATCHET
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16091076540

SPRING
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16091076550

WASHER, THRUST
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16091076560

SPRING, FRICTION
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16094076570

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16091076580

PLATE, FRICTION
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16091076610

STARTER ROPE ASSY
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16091076620

KNOB, STARTER
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16091076630

ROPE, STARTER
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16091076650

WASHER, THRUST
(Superseded to Discontinued)

$

$

Not available

15

Echo Y22217060000

LOCKWASHER - 6
(Superseded to Discontinued)

$

$

Not available

16

Echo Y26717060002

NUT - 6
(Superseded to Discontinued)

$

$

Not available

17

Echo Y16091076590

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

18

Echo Y26106060082

BOLT - 6X8 -- PLATED

$0.99

$

Usually ships in 2-4 days

0

19

Echo Y26106060122

BOLT - 6X12 -- PLATED
(Superseded to Discontinued)

$

$

Not available
