EG-4300 - Echo Generator (SN: 00000 - 00845) THROTTLE, GOVERNOR LEVER Parts Diagram

Generator

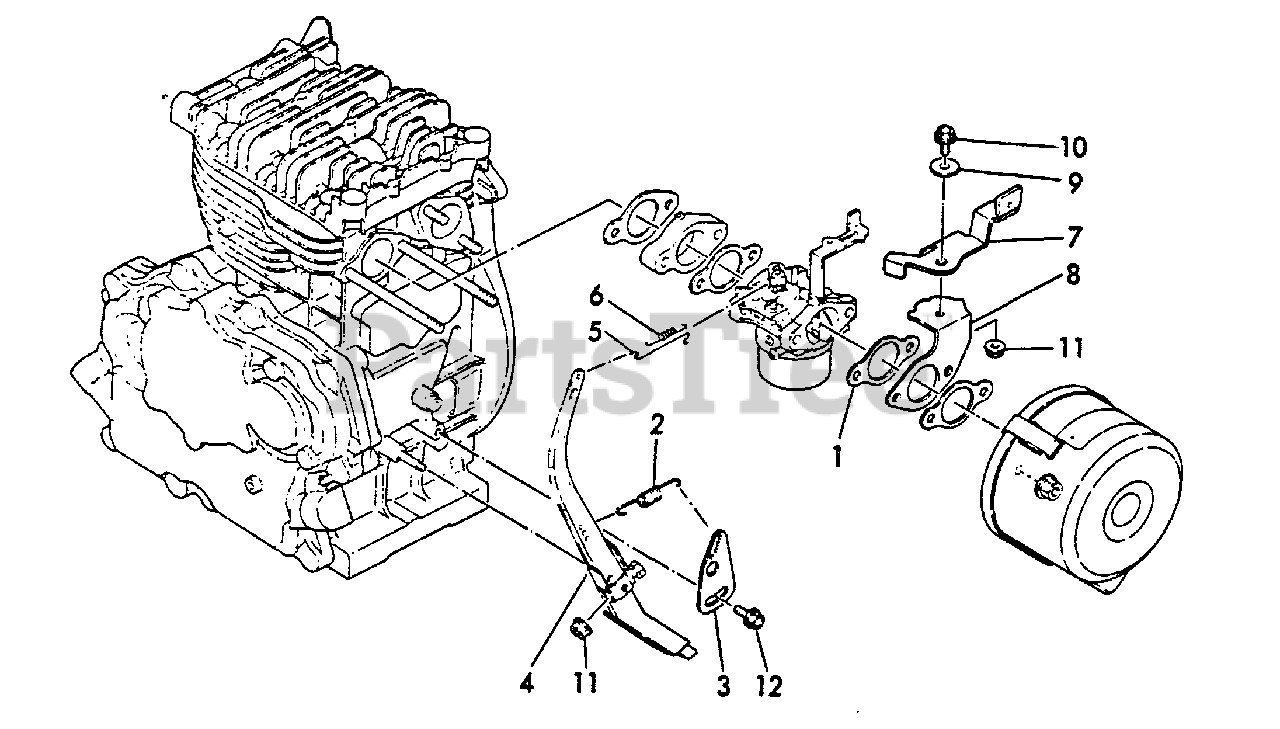

THROTTLE, GOVERNOR LEVER Parts Diagram

  • Title

1

Echo Y16091056150

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16097066010

SPRING, REGULATOR
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16097066120

HANDLE, REGULATOR
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16091066161

LEVER, GOVERNOR
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16091066200

LINK, THROTTLE
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16091066320

SPRING, TENSION
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16097066300

LEVER ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16097066331

BRACKET, LEVER
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16067066350

COLLAR
(Superseded to Discontinued)

$

$

Not available

10

Echo Y26106060122

BOLT - 6×12 -- PLATED
(Superseded to Discontinued)

$

$

Not available

11

Echo Y26366060002

U-NUT M6
(Superseded to Discontinued)

$

$

Not available

12

Echo Y26476060142

BOLT - 6×8 -- PLATED
(Superseded to Discontinued)

$

$

Not available
