EG-4300 - Echo Generator (SN: 00846 - 99999) Cylinder Block Parts Diagram

Generator

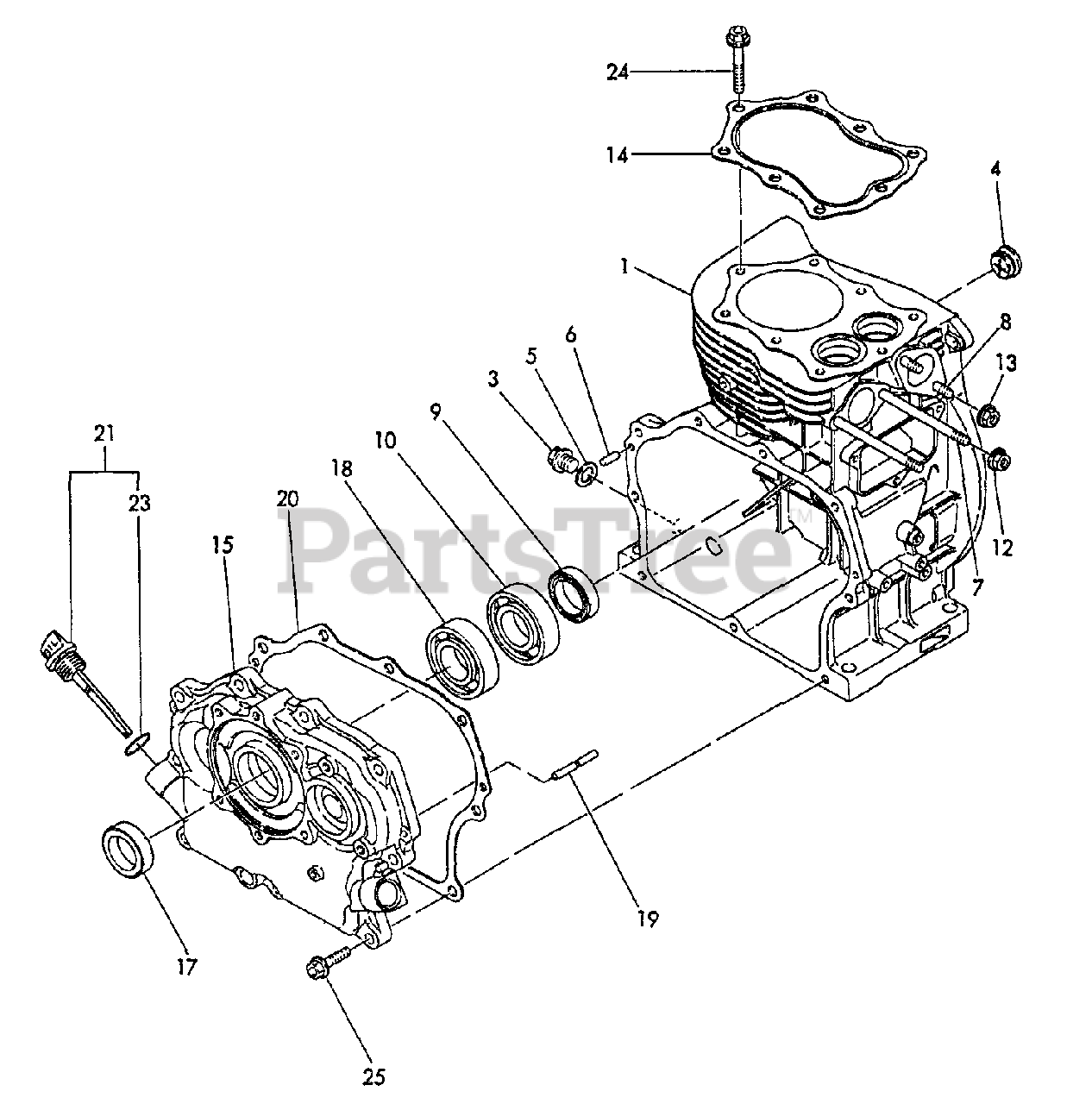

Cylinder Block Parts Diagram

  • Title

1

Echo Y76097501560

CYLINDER BLOCK SET
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16061001690

PLUG, DRAIN
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16082001950

PLUG
(Superseded to Discontinued)

$

$

Not available

5

Echo Y10420059170

GASKET
(Superseded to Discontinued)

$

$

Not available

6

Echo Y22312060160

PARALLEL PIN 6×16
(Superseded to Discontinued)

$

$

Not available

7

Echo Y26216080952

STUD M8×95 PLATED
(Superseded to Discontinued)

$

$

Not available

8

Echo Y26226080182

STUD -- PLATED
(Superseded to Discontinued)

$

$

Not available

9

Echo Y10122002220

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

10

Echo Y24101062060

BEARING, BALL 6206C4
(Superseded to Discontinued)

$

$

Not available

12

Echo Y26366080002

U-NUT M8
(Superseded to Discontinued)

$

$

Not available

13

Echo Y26366080002

U-NUT M8
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16091001330

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

15

Echo Y76094001500

COVER, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

17

Echo Y10122002220

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

18

Echo Y24101062060

BEARING, BALL 6206C4
(Superseded to Discontinued)

$

$

Not available

19

Echo Y16061061100

SHAFT, GOVERNOR
(Superseded to Discontinued)

$

$

Not available

20

Echo Y16091001410

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

21

Echo Y16091001740

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

23

Echo Y24311000180

O-RING 1A P-18.0
(Superseded to Discontinued)

$

$

Not available

24

Echo Y16061004180

BOLT - 8×50
(Superseded to Discontinued)

$

$

Not available

25

Echo Y26106080302

BOLT - 8×30 -- PLATED
(Superseded to Discontinued)

$

$

Not available
