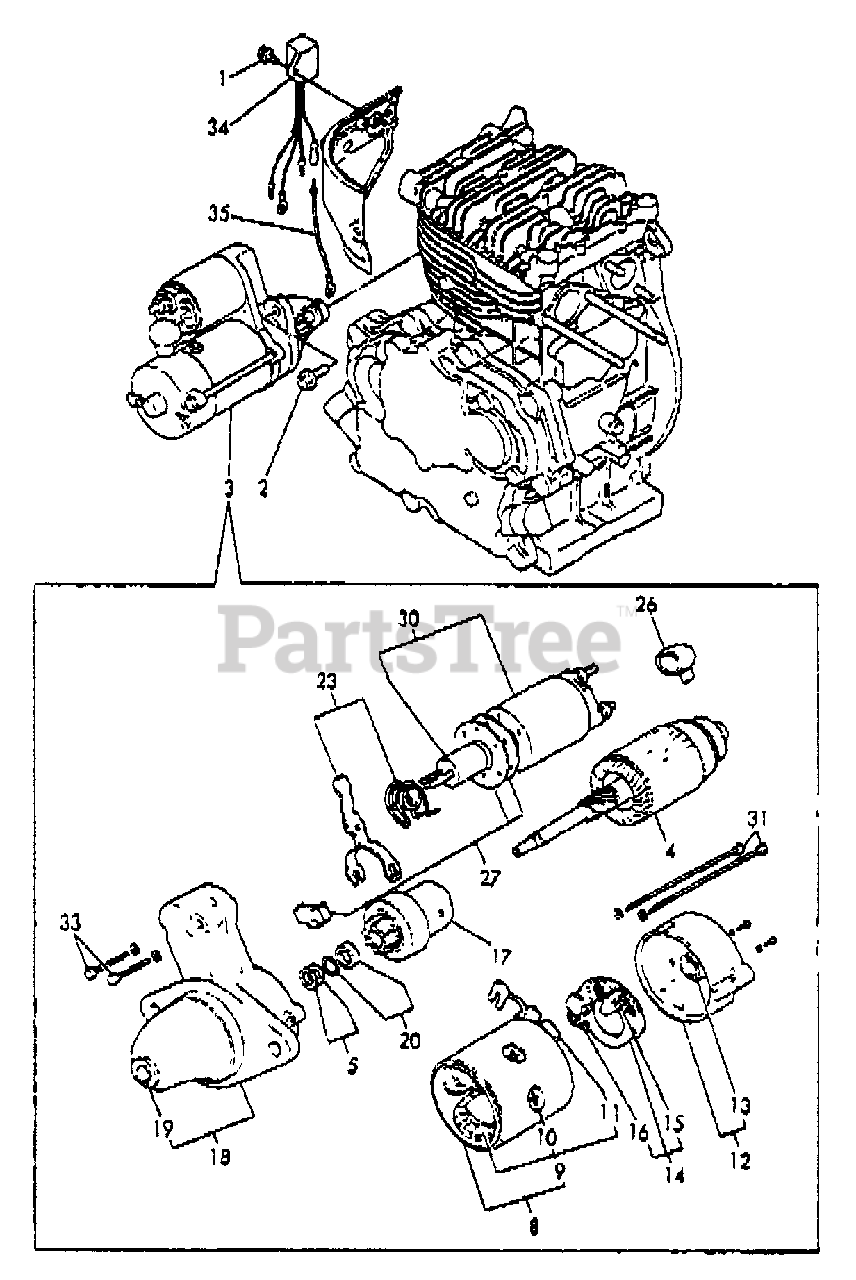

EG-4300 - Echo Generator (SN: 00846 - 99999) Starting Motor Parts Diagram

Generator

Starting Motor Parts Diagram

  • Title

1

Echo Y26106060122

BOLT - 6×12 -- PLATED
(Superseded to Discontinued)

$

$

Not available

2

Echo Y26106080202

BOLT - 8×20 -- PLATED
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16094077010

STARTING MOTOR
(Superseded to Discontinued)

$

$

Not available

4

Echo Y92108910020

ARMATURE ASSY
(Superseded to Discontinued)

$

$

Not available

5

Echo Y92108411500

THRUST WASHER KIT
(Superseded to Discontinued)

$

$

Not available

------------------

YOKE

Note: (REF. 18=3)

$

$

Not available

9

Echo Y92108922500

IGNITION COIL ASSY
(Superseded to Discontinued)

$

$

Not available

10

Echo Y92108320700

SCREW, POLE CORE
(Superseded to Discontinued)

$

$

Not available

11

Echo Y92108231300

BRUSH - ( + )
(Superseded to Discontinued)

$

$

Not available

12

Echo Y92108330010

REAR COVER ASSY
(Superseded to Discontinued)

$

$

Not available

13

Echo Y92108360100

METAL
(Superseded to Discontinued)

$

$

Not available

14

Echo Y92108531200

HOLDER ASSY, BRUSH
(Superseded to Discontinued)

$

$

Not available

15

Echo Y92108431500

BRUSH(-)
(Superseded to Discontinued)

$

$

Not available

16

Echo Y92114731400

SPRING, CHOKE
(Superseded to Discontinued)

$

$

Not available

17

Echo Y92108450020

PINION ASSY
(Superseded to Discontinued)

$

$

Not available

18

Echo Y92108600100

GEAR CASE ASSY
(Superseded to Discontinued)

$

$

Not available

19

Echo Y92108360100

METAL
(Superseded to Discontinued)

$

$

Not available

20

Echo Y92114360140

STOPPER SET, PINION
(Superseded to Discontinued)

$

$

Not available

23

Echo Y921088610A0

LEVER SET, SHIFT

$

$

Currently unavailable

26

Echo Y92108480200

CAP, TERMINAL
(Superseded to Discontinued)

$

$

Not available

27

Echo Y921087806A0

COVER SET, DUST

$

$

Currently unavailable

30

Echo Y92108482300

SWITCH ASSY, MAGNET
(Superseded to Discontinued)

$

$

Not available

31

Echo Y92114680050

THROUGH BOLT
(Superseded to Discontinued)

$

$

Not available

33

Echo Y92114586600

BOLT - 6×32
(Superseded to Discontinued)

$

$

Not available

34

Echo Y16097077350

RECTIFIER
(Superseded to Discontinued)

$

$

Not available

35

Echo Y16097077400

WIRE
(Superseded to Discontinued)

$

$

Not available
