EG-4300 - Echo Generator (SN: 00846 - 99999) THROTTLE, GOVERNOR LEVER Parts Diagram

Generator

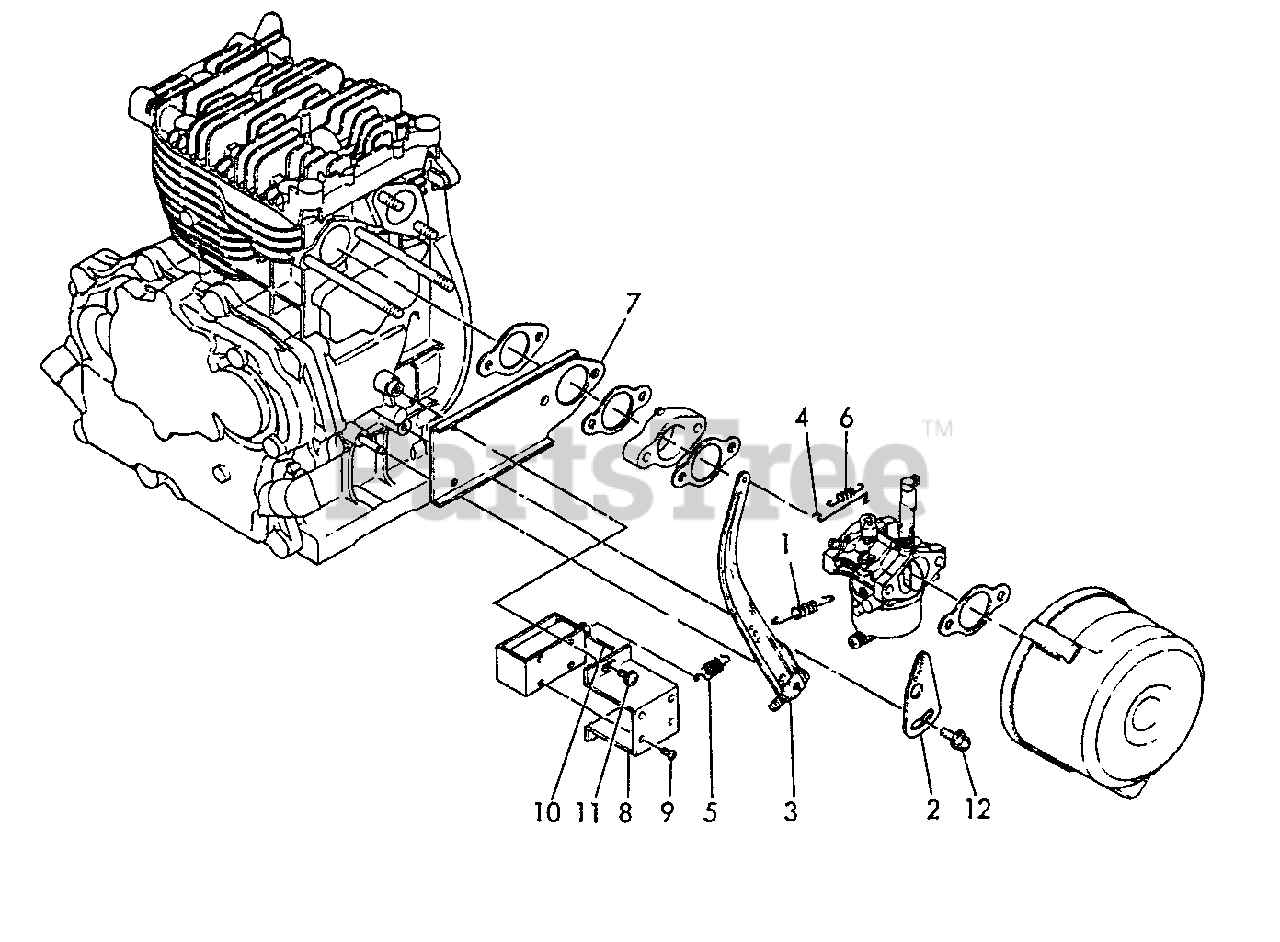

THROTTLE, GOVERNOR LEVER Parts Diagram

  • Title

1

Echo Y16097066020

SPRING, REGULATOR
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16097066120

HANDLE, REGULATOR
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16090366150

LEVER, GOVERNOR
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16091066200

LINK, THROTTLE
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16097566350

SPRING
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16091066320

SPRING
(Superseded to Discontinued)

$

$

Not available

7

Echo Y18310166330

MOUNT, SOLENOID
(Superseded to Discontinued)

$

$

Not available

8

Echo Y18310066350

HOLDER, SOLENOID
(Superseded to Discontinued)

$

$

Not available

9

Echo Y18310066450

SCREW - 3X4
(Superseded to Discontinued)

$

$

Not available

10

Echo Y22417250200

PIN, SPLIT - 2.5X20
(Superseded to Discontinued)

$

$

Not available

11

Echo Y26023050102

SCREW - 5X10
(Superseded to Discontinued)

$

$

Not available

12

Echo Y26476060142

BOLT - 6X8 -- PLATED
(Superseded to Discontinued)

$

$

Not available
