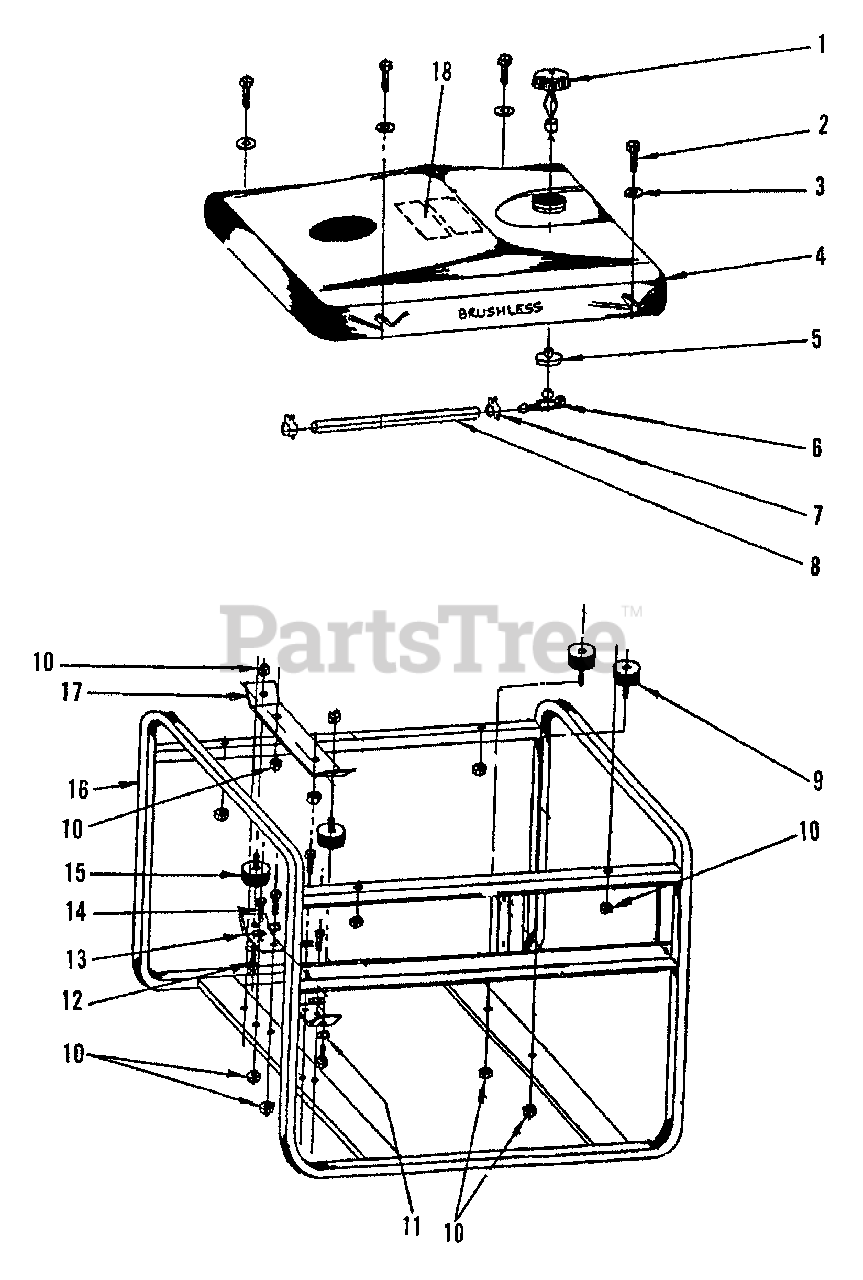

EG-4600 - Echo Generator Fuel System, Frame Parts Diagram

Generator

Fuel System, Frame Parts Diagram

  • Title

1

Echo 240020003

CAP, FUEL

$49.99

$

Usually ships in 2-4 days

0

2

Echo 240017020

HHS 5/16-18X1.75
(Superseded to Discontinued)

$

$

Not available

3

Echo 240015002

LOCKWASHER - 5/16"
(Superseded to Discontinued)

$

$

Not available

4

Echo 240022003

TANK, FUEL - 6 GALLON
(Superseded to Discontinued)

$

$

Not available

5

------------------

GROMMET

Note: REPLACE FUEL TANK

$

$

Not available

6

------------------

VALVE, FUEL TANK

Note: REPLACE FUEL TANK

$

$

Not available

7

Echo 240024001

CLAMP - 1/4"
(Superseded to Discontinued)

$

$

Not available

8

Echo 240300250

LINE, FUEL - 24"
(Superseded to Discontinued)

$

$

Not available

9

Echo 240009020

ISOLATOR, VIBRATION

$25.99

$

Usually ships in 2-4 days

0

10

Echo 240016001

LOCKNUT - 5/16-18
(Superseded to Discontinued)

$

$

Not available

11

Echo 240015004

LOCKWASHER - 5/16"

$0.99

$

Usually ships in 2-4 days

0

12

Echo 240017019

5/16-18X5/8 HHS
(Superseded to Discontinued)

$

$

Not available

13

Echo 240041004

BRACKET, FOCUS
(Superseded to Discontinued)

$

$

Not available

14

Echo 240017063

5/16-18X7/8 HHS
(Superseded to Discontinued)

$

$

Not available

15

Echo 240009001

ISOLATOR, VIBRATION

$18.99

$

Usually ships in 2-4 days

0

16

Echo 240001220

FRAME
(Superseded to Discontinued)

$

$

Not available

17

Echo 240041003

RAIL, FOCUS
(Superseded to Discontinued)

$

$

Not available

18

Echo 240021340

LABEL - SAFETY
(Superseded to Discontinued)

$

$

Not available
