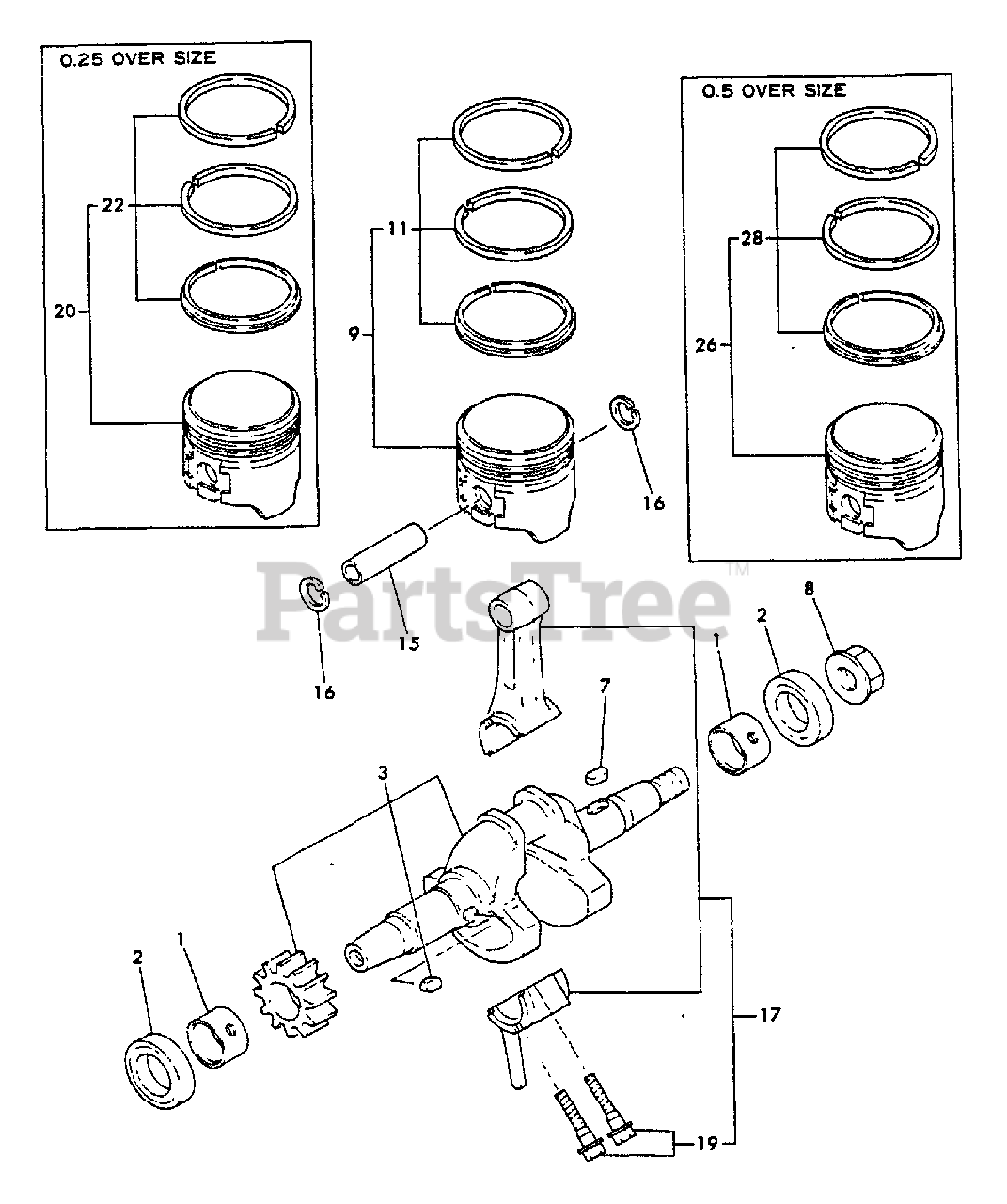

EG-550 - Echo Generator Bearing, Crankshaft, Piston, Rod Parts Diagram

Generator

Bearing, Crankshaft, Piston, Rod Parts Diagram

  • Title

1

Echo Y16056002100

MAIN BEARING
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16051002220

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

3

Echo Y76056721700

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16061021290

KEY - 4X10

$2.49

$

Usually ships in 2-4 days

0

8

Echo Y26376100002

NUT - 10 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16056022010

PISTON ASSY
(Superseded to Discontinued)

$

$

Not available

11

Echo Y76056022500

PISTON RING SET
(Superseded to Discontinued)

$

$

Not available

15

Echo Y16056022300

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

16

Echo Y22252000100

RING, RETAINING - 10
(Superseded to Discontinued)

$

$

Not available

17

Echo Y76056023700

CONNECTING ROD ASSY
(Superseded to Discontinued)

$

$

Not available

19

Echo Y16066423200

BOLT, ROD
(Superseded to Discontinued)

$

$

Not available

20

Echo Y16056022470

PISTON ASSY O.S. = 0.2
(Superseded to Discontinued)

$

$

Not available

22

Echo Y76056022540

RING SET O.S. = 0.25
(Superseded to Discontinued)

$

$

Not available

26

Echo Y16056022480

PISTON ASSY
(Superseded to Discontinued)

$

$

Not available

28

Echo Y76056022550

RING SET O.S. = O.5
(Superseded to Discontinued)

$

$

Not available
