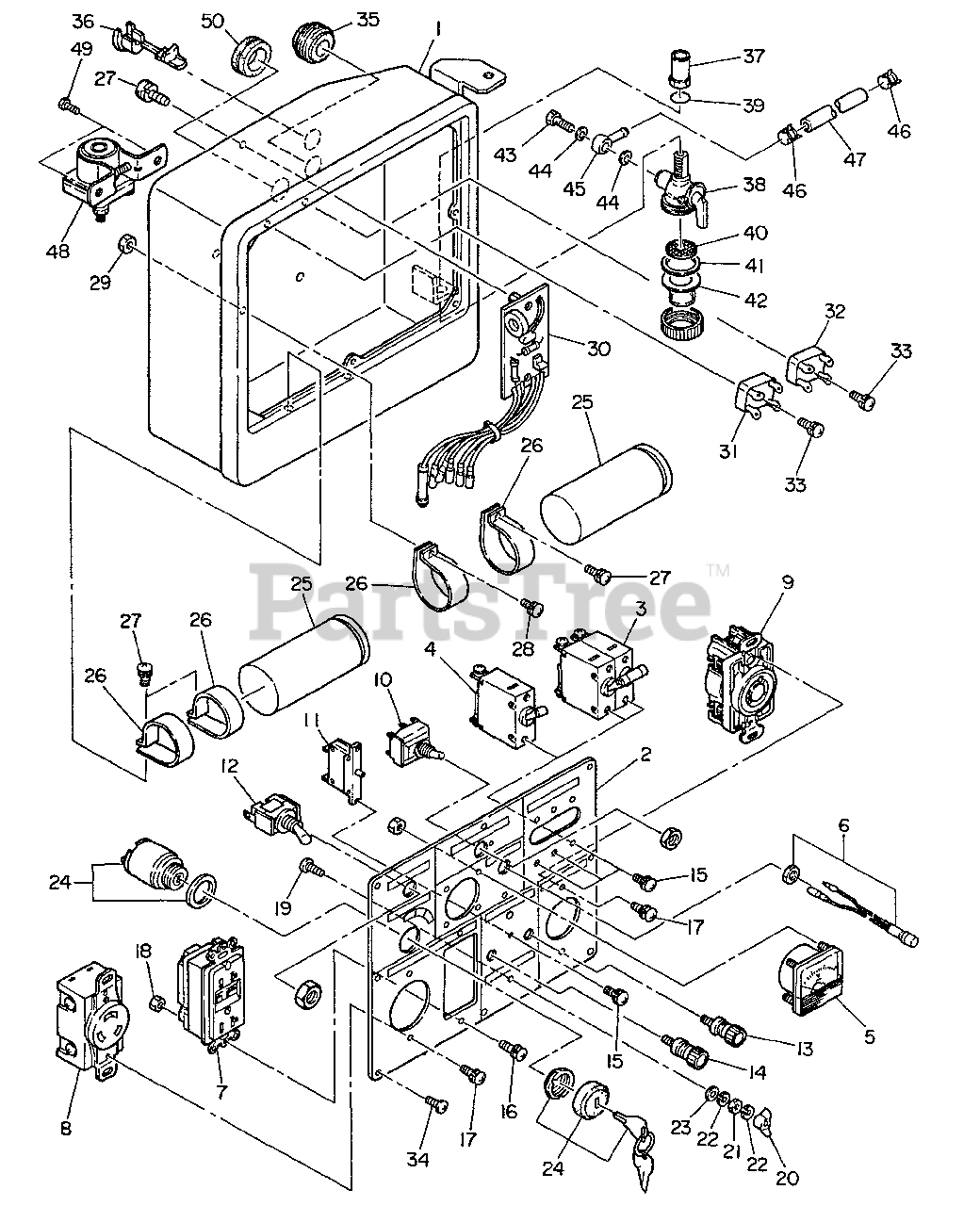

EG-5500 E - Echo Generator Electrical Panel Parts Diagram

Generator

Electrical Panel Parts Diagram

  • Title

1

------------------

CONTROL BOX ASS'Y

Note: Includes items 2 thru 36 and 48 thru 50

$

$

Not available

1

Echo 103904000301

CONTROL BOX ASSY
(Superseded to Discontinued)

$

$

Not available

2

------------------

CONTROL PANEL ASS'Y

Note: Includes items 3 thru 24

$

$

Not available

2

Echo 103904100301

CONTROL PANEL
(Superseded to Discontinued)

$

$

Not available

3

Echo 103904566008

NO-FUSE BREAKER (22A X 2)

$369.99

$

Usually ships in 2-4 days

0

4

Echo 103594564108

NO-FUSE BREAKER - 30A
(Superseded to Discontinued)

$

$

Not available

5

Echo 103207512708

AC VOLTMETER - 150V
(Superseded to Discontinued)

$

$

Not available

6

Echo 103207517308

LAMP, NEON
(Superseded to Discontinued)

$

$

Not available

7

Echo 103904575008

AC RECEPTACLE - 125V-20A, GFCI
(Superseded to Discontinued)

$

$

Not available

8

Echo 103564571108

AC RECEPTACLE - 125/250V-20A
(Superseded to Discontinued)

$

$

Not available

9

Echo 103534572408

AC RECEPTACLE - 125/250V-20A
(Superseded to Discontinued)

$

$

Not available

10

Echo 103554561308

SWITCH ASSY

$109.99

$

Usually ships in 2-4 days

0

11

Echo 103524562008

CIRCUIT BREAKER - 10A DC
(Superseded to Discontinued)

$

$

Not available

12

Echo 103444561508

SWITCH

$24.99

$

Usually ships in 2-4 days

0

13

Echo 103634570108

BOLT, TERMINAL - RED
(Superseded to Discontinued)

$

$

Not available

14

Echo 103634570008

BOLT, TERMINAL - BLACK
(Superseded to Discontinued)

$

$

Not available

15

Echo 100043503060

SCREW
(Superseded to Discontinued)

$

$

Not available

16

Echo 100043504100

SCREW
(Superseded to Discontinued)

$

$

Not available

17

Echo 103565993708

SCREW
(Superseded to Discontinued)

$

$

Not available

18

Echo 100021704000

NUT
(Superseded to Discontinued)

$

$

Not available

19

Echo 103564990708

SCREW
(Superseded to Discontinued)

$

$

Not available

20

Echo 103534990108

WINGNUT
(Superseded to Discontinued)

$

$

Not available

21

Echo 103534990208

NUT
(Superseded to Discontinued)

$

$

Not available

22

Echo 103320005008

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

23

Echo 103534990308

WASHER
(Superseded to Discontinued)

$

$

Not available

24

Echo 100660000111

KEY SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

25

Echo 103904755308

CONDENSER ASSY

$430.99

$

Usually ships in 2-4 days

0

26

Echo 103804753108

BRACKET, CONDENSER
(Superseded to Discontinued)

$

$

Not available

27

Echo 100043504100

SCREW
(Superseded to Discontinued)

$

$

Not available

28

Echo 103895998908

SCREW
(Superseded to Discontinued)

$

$

Not available

29

Echo 103895999008

NUT
(Superseded to Discontinued)

$

$

Not available

30

Echo 103883060308

IDLE CONTROL UNIT

$364.99

$

Usually ships in 2-4 days

0

32

Echo 103634580308

DIODE STACK ASSY

$72.99

$

Usually ships in 2-4 days

0

33

Echo 100043604200

SCREW
(Superseded to Discontinued)

$

$

Not available

34

Echo 103534990408

SCREW -- TAPPING
(Superseded to Discontinued)

$

$

Not available

35

Echo 103744754008

GROMMET
(Superseded to Discontinued)

$

$

Not available

36

Echo 103635600008

GROMMET
(Superseded to Discontinued)

$

$

Not available

37

Echo 100533090020

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

38

Echo 100642002310

FILTER, FUEL
(Superseded to Discontinued)

Note: Includes items 39 thru 44

$

$

Not available

39

Echo 100642000330

O-RING
(Superseded to Discontinued)

$

$

Not available

40

Echo 100642000220

FILTER

$3.49

$

In Stock, only 2 left!

0

41

Echo 100642000230

SEAL

$4.49

$

Usually ships in 2-4 days

0

42

Echo 100642000210

CUP

$11.99

$

Usually ships in 2-4 days

0

43

Echo 100642000240

BOLT

$2.49

$

Usually ships in 2-4 days

0

44

Echo 100642000250

WASHER
(Superseded to Discontinued)

$

$

Not available

45

Echo 100521070042

BOLT, BANJO
(Superseded to Discontinued)

$

$

Not available

46

Echo 100561110020

CLAMP, HOSE
(Superseded to Discontinued)

$

$

Not available

47

Echo 100851060000

RUBBER PIPE (6 X 12 X 160mm)

$15.99

$

Usually ships in 2-4 days

0

48

Echo 102147700110

SWITCH

$81.99

$

Usually ships in 2-4 days

0

49

Echo 100016505120

BOLT
(Superseded to Discontinued)

$

$

Not available

50

Echo 103914900303

GROMMET
(Superseded to Discontinued)

$

$

Not available
