EG-5500 E - Echo Generator GENERATOR Parts Diagram

Generator

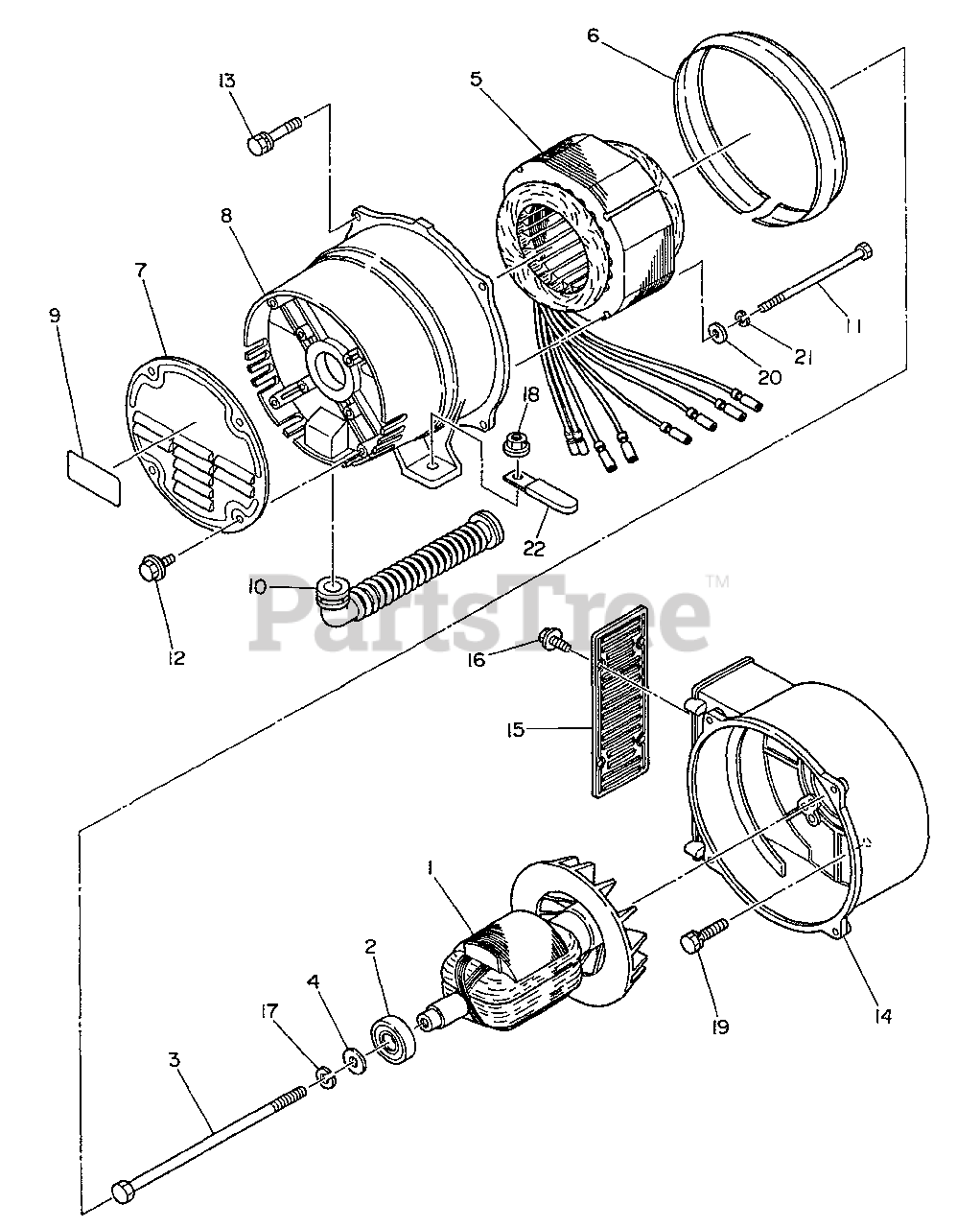

GENERATOR Parts Diagram

  • Title

1

Echo 103905053508

FLYWHEEL ASSY
(Superseded to Discontinued)

Note: Include item 2

$

$

Not available

2

Echo 103545820408

BEARING, BALL 6205RS
(Superseded to Discontinued)

$

$

Not available

3

Echo 103675800808

THROUGH BOLT
(Superseded to Discontinued)

$

$

Not available

4

Echo 100200100170

WASHER
(Superseded to Discontinued)

$

$

Not available

5

Echo 103905166708

STATOR ASSY
(Superseded to Discontinued)

$

$

Not available

6

Echo 103855438103

SUPPORT RING
(Superseded to Discontinued)

$

$

Not available

7

Echo 103885500113

END COVER
(Superseded to Discontinued)

$

$

Not available

8

Echo 103905400101

REAR COVER
(Superseded to Discontinued)

$

$

Not available

9

Echo 103909200203

LABEL - DANGER
(Superseded to Discontinued)

$

$

Not available

10

Echo 103855751008

BUSHING
(Superseded to Discontinued)

$

$

Not available

11

Echo 103865998208

BOLT
(Superseded to Discontinued)

$

$

Not available

12

Echo 100110060010

BOLT, FLANGE
(Superseded to Discontinued)

$

$

Not available

13

Echo 100011406250

BOLT
(Superseded to Discontinued)

$

$

Not available

14

Echo 103905410113

FRONT COVER
(Superseded to Discontinued)

$

$

Not available

15

Echo 103885510103

FRONT PROTECTOR
(Superseded to Discontinued)

$

$

Not available

16

Echo 100152050010

SCREW - TAPPING
(Superseded to Discontinued)

$

$

Not available

17

Echo 100032010000

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

18

Echo 100023808000

NUT, FLANGE
(Superseded to Discontinued)

$

$

Not available

19

Echo 100011308200

BOLT
(Superseded to Discontinued)

$

$

Not available

20

Echo 100031006000

WASHER
(Superseded to Discontinued)

$

$

Not available

21

Echo 100032006000

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

22

Echo 100566000170

CLAMP
(Superseded to Discontinued)

$

$

Not available
