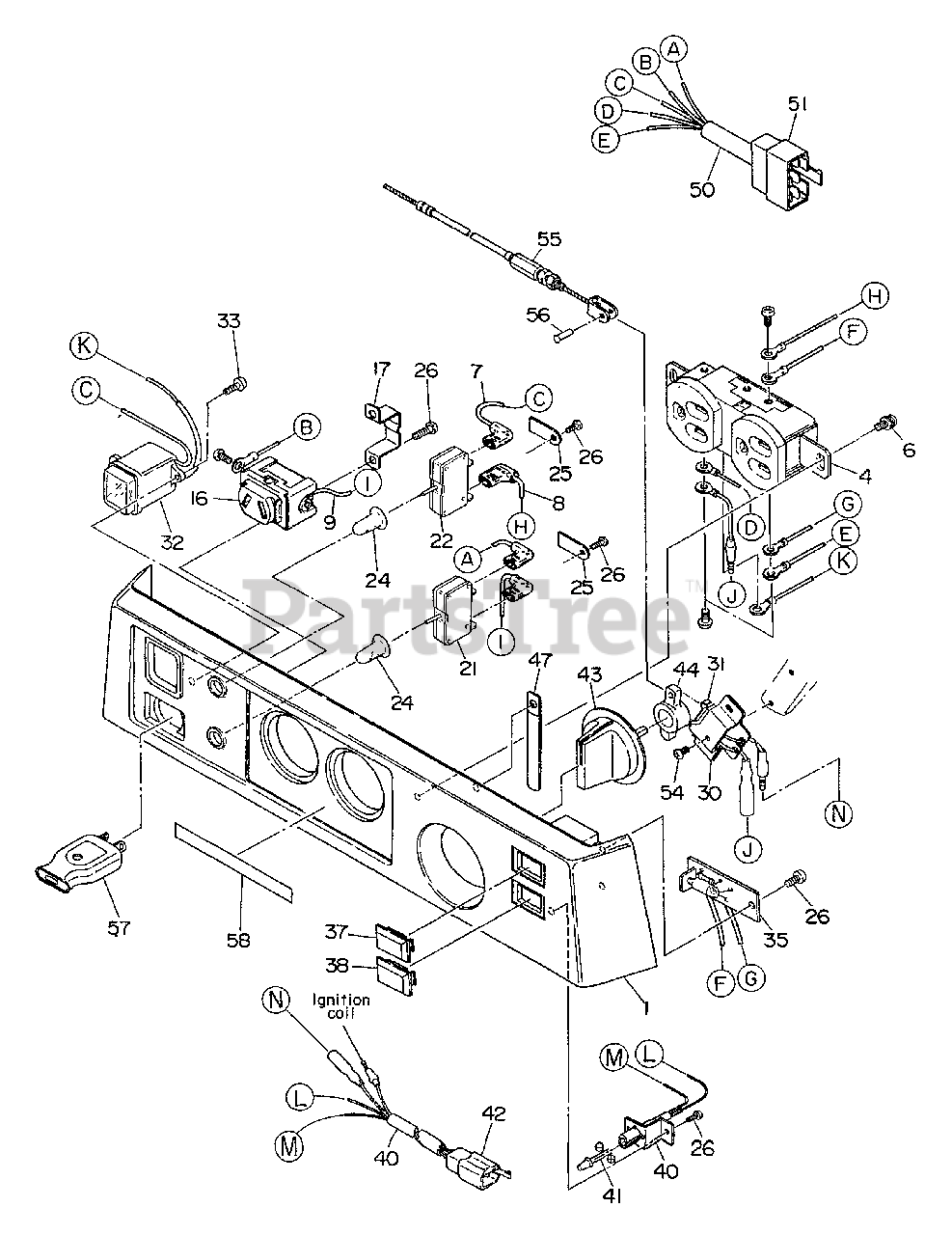

EG-650 - Echo Generator Electrical Panel Parts Diagram

Generator

Electrical Panel Parts Diagram

  • Title

1

Echo 103834130201

CONTROL PANEL ASSY
(Superseded to Discontinued)

Note: (Mark...W). FOR 60Hz-120V. Includes items 1 thru 51

$

$

Not available

1

Echo 103834061508

PANEL
(Superseded to 103834130201)

$

$

Not available

4

Echo 103834061008

AC RECEPTACLE
(Superseded to Discontinued)

$

$

Not available

6

Echo 101387025108

SCREW
(Superseded to Discontinued)

$

$

Not available

7

Echo 103834070808

WIRE 19, COMPL.
(Superseded to Discontinued)

$

$

Not available

8

Echo 103834070908

WIRE 20, COMPL.
(Superseded to Discontinued)

$

$

Not available

9

Echo 103584066608

WIRE 5, COMPL.
(Superseded to Discontinued)

$

$

Not available

16

Echo 103584110508

DC RECEPTACLE
(Superseded to Discontinued)

$

$

Not available

17

Echo 103584110608

CLAMP
(Superseded to Discontinued)

$

$

Not available

21

Echo 103834063308

CIRCUIT BREAKER(10A)
(Superseded to Discontinued)

$

$

Not available

22

Echo 103834063108

CIRCUIT BREAKER (3.5A)

Note: FOR 60Hz.-120V

$51.99

$

Usually ships in 2-4 days

0

24

Echo 103834075008

CAP
(Superseded to Discontinued)

$

$

Not available

25

Echo 103584065508

CLAMP
(Superseded to Discontinued)

$

$

Not available

26

Echo 103584066008

SCREW - TAPPING
(Superseded to Discontinued)

$

$

Not available

30

Echo 103584111008

MICRO SWITCH, COMP.
(Superseded to Discontinued)

Note: Includes item 31

$

$

Not available

31

Echo 103584064308

MICRO SWITCH
(Superseded to Discontinued)

$

$

Not available

32

Echo 103834064408

VOLT METER
(Superseded to Discontinued)

$

$

Not available

33

Echo 103584066108

SCREW - TAPPING
(Superseded to Discontinued)

$

$

Not available

35

Echo 103834069108

LAMP
(Superseded to Discontinued)

$

$

Not available

37

Echo 103584065108

CAP - GREEN
(Superseded to Discontinued)

$

$

Not available

38

Echo 103584113308

CAP - CLEAR
(Superseded to Discontinued)

$

$

Not available

40

Echo 103584113008

WIRE HARNESS, COMPL.
(Superseded to Discontinued)

Note: Includes items 41 and 42

$

$

Not available

41

Echo 103584113108

LED
(Superseded to Discontinued)

$

$

Not available

42

Echo 103584113208

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

43

Echo 103584111118

KNOB
(Superseded to Discontinued)

$

$

Not available

44

Echo 103584111208

LEVER
(Superseded to Discontinued)

$

$

Not available

47

Echo 103584115008

CLAMP
(Superseded to Discontinued)

$

$

Not available

50

Echo 103834065308

WIRE HARNESS
(Superseded to Discontinued)

Note: Includes item 51

$

$

Not available

51

Echo 103582102108

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

54

Echo 100043603080

SCREW
(Superseded to Discontinued)

$

$

Not available

55

Echo 103584560101

CHOKE WIRE, COMPL.
(Superseded to Discontinued)

Note: Includes ITEM 56

$

$

Not available

56

Echo 103584515008

SCREW
(Superseded to Discontinued)

$

$

Not available

57

Echo 103589500303

DC PLUG

$17.99

$

In Stock, only 1 left!

0

58

Echo 103839531703

LABEL -- HZ-V
(Superseded to Discontinued)

$

$

Not available
