EG-7600 E - Echo Generator Fuel System, Frame Parts Diagram

Generator

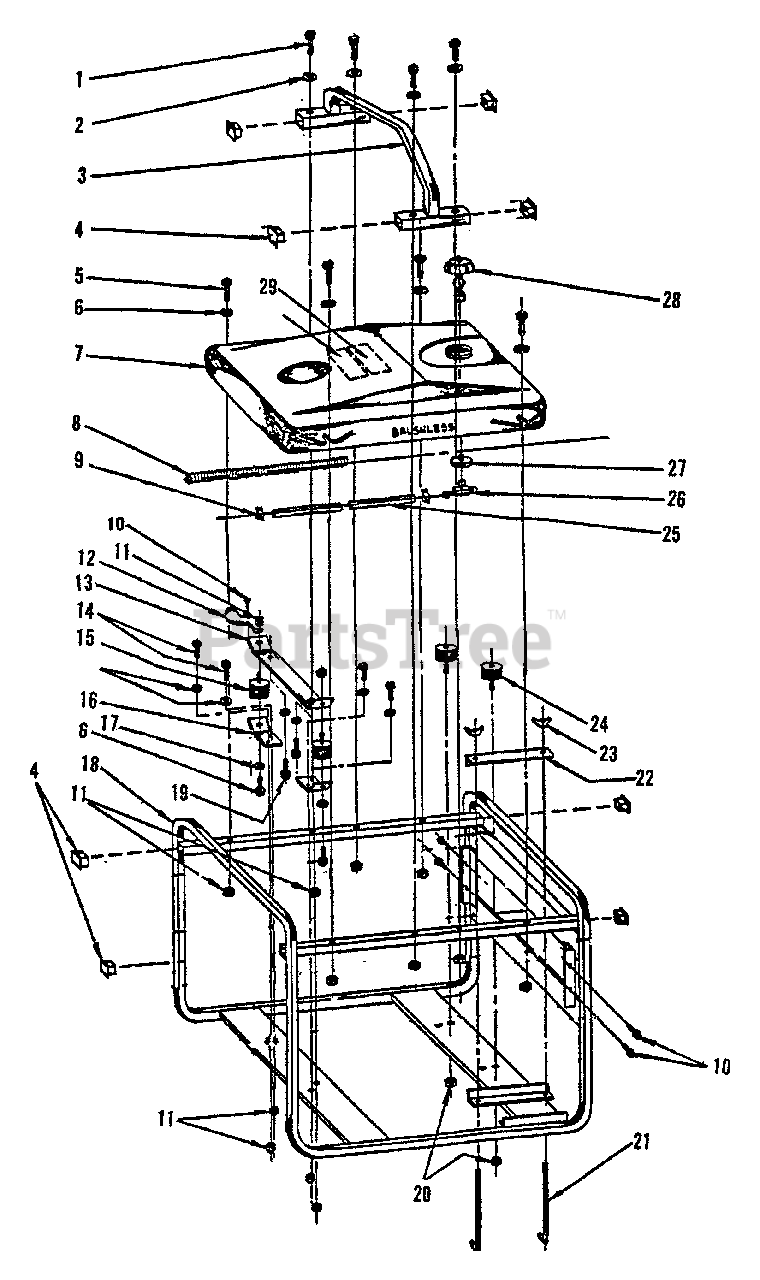

Fuel System, Frame Parts Diagram

  • Title

1

Echo 240017062

5/16-18X2.5 HHS
(Superseded to Discontinued)

$

$

Not available

2

Echo 240015002

LOCKWASHER - 5/16"
(Superseded to Discontinued)

$

$

Not available

3

Echo 240040002

HANDLE, LIFTING
(Superseded to Discontinued)

$

$

Not available

4

Echo 240020014

PLUG, END
(Superseded to Discontinued)

$

$

Not available

5

Echo 240017003

BOLT - 5/16-18 X 1-1/2"

$0.99

$

Usually ships in 2-4 days

0

6

Echo 240015004

LOCKWASHER - 5/16"

$0.99

$

Usually ships in 2-4 days

0

7

Echo 240022003

TANK, FUEL - 6 GALLON
(Superseded to Discontinued)

$

$

Not available

8

Echo 240029000

CONDUIT - 12"
(Superseded to Discontinued)

$

$

Not available

9

Echo 240024001

CLAMP - 1/4"
(Superseded to Discontinued)

$

$

Not available

10

Echo 240017001

SCREW - 10-24
(Superseded to Discontinued)

$

$

Not available

11

Echo 240016001

LOCKNUT - 5/16-18
(Superseded to Discontinued)

$

$

Not available

12

Echo 240011008

STRAP - GROUND
(Superseded to Discontinued)

$

$

Not available

13

Echo 240041005

RAIL, FOCUS
(Superseded to Discontinued)

$

$

Not available

14

Echo 240017063

5/16-18X7/8 HHS
(Superseded to Discontinued)

$

$

Not available

15

Echo 240009001

ISOLATOR, VIBRATION

$18.99

$

Usually ships in 2-4 days

0

16

Echo 240041001

BRACKET, FOCUS
(Superseded to Discontinued)

$

$

Not available

17

Echo 240017019

5/16-18X5/8 HHS
(Superseded to Discontinued)

$

$

Not available

18

Echo 240001230

FRAME
(Superseded to Discontinued)

$

$

Not available

19

Echo 240017011

5/16-18X3/4 HHS
(Superseded to Discontinued)

$

$

Not available

20

Echo 240016010

LOCKNUT - 3/8-16
(Superseded to Discontinued)

$

$

Not available

21

Echo 240020002

BOLT, BATTERY HOLD DOWN
(Superseded to Discontinued)

$

$

Not available

22

Echo 240020001

BRACKET, BATTERY
(Superseded to Discontinued)

$

$

Not available

23

Echo 240020020

WINGNUT - 1/4"
(Superseded to Discontinued)

$

$

Not available

24

Echo 240009040

ISOLATOR, VIBRATION

$20.99

$

Usually ships in 2-4 days

0

25

Echo 240300250

LINE, FUEL - 24"
(Superseded to Discontinued)

$

$

Not available

26

Echo 244020001

VALVE, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

27

------------------

GROMMET

Note: REPLACE FUEL TANK

$

$

Not available

28

------------------

CAP ASSY

Note: REPLACE FUEL TANK

$

$

Not available

29

Echo 240021340

LABEL - SAFETY
(Superseded to Discontinued)

$

$

Not available
