EG1000 A (G150) - Honda Generator, Made in Japan (SN: G150-1005695 - G150-9999999) CARBURETOR (2) Parts Diagram

Generator, Made in Japan

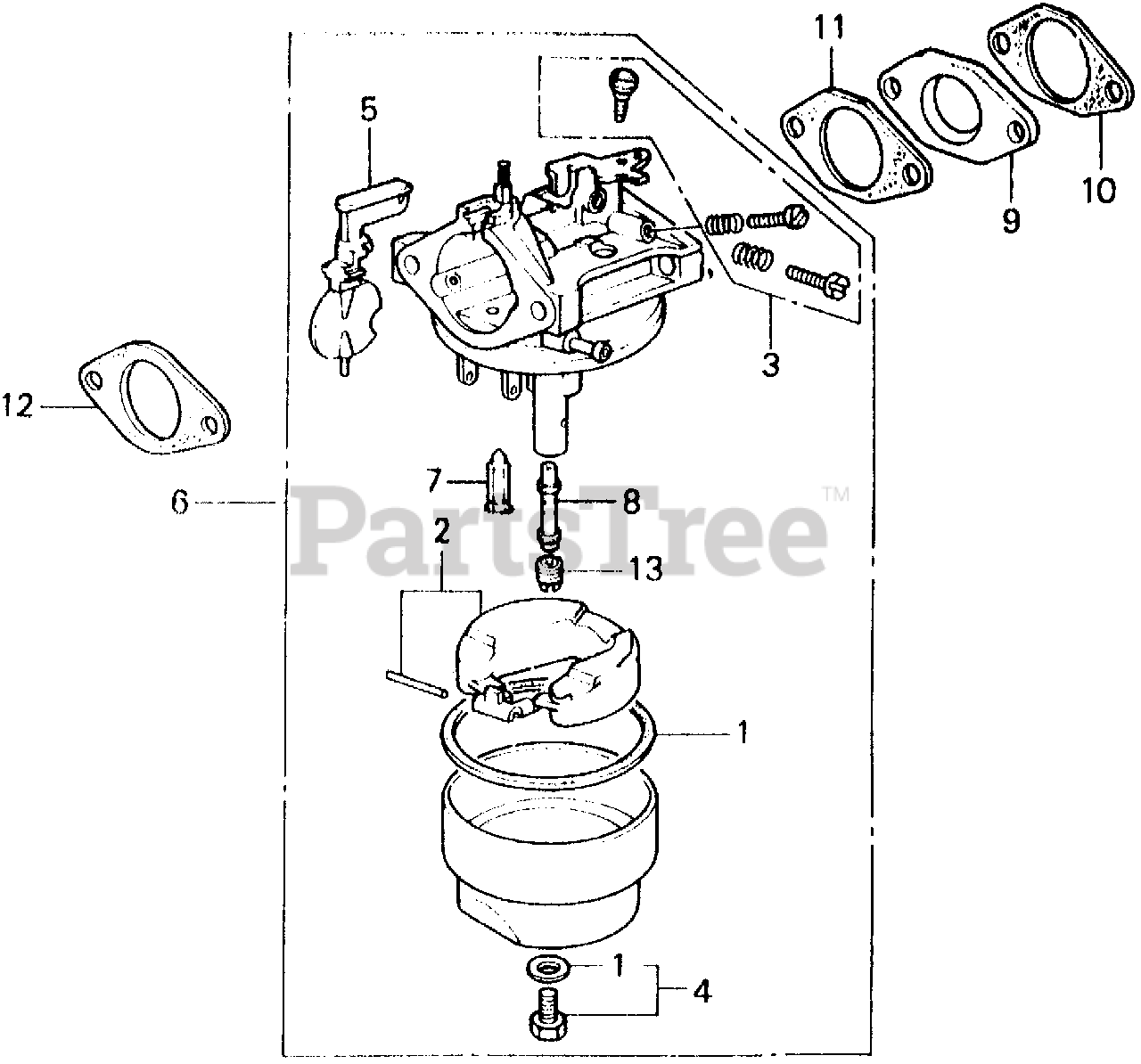

CARBURETOR (2) Parts Diagram

  • Title

1

Honda 16010-883-015

SEE PART DETAILS - PRI; GASKET SET

Note: Use from Engine SN BB28B A.

$12.99

$

In Stock, Qty 20+

0

2

Honda 16013-883-005

FLOAT SET

Note: Use from Engine SN BB28B A.

$35.99

$

In Stock, only 1 left!

0

3

Honda 16016-883-661

SEE PART DETAILS - SUP; SCREW SET A

Note: Use from Engine SN BB28B A.

$

$

Currently unavailable

4

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET B
(Superseded to 16028-ZK7-S91)

Note: Use from Engine SN BB28B A.

$12.99

$

In Stock, only 3 left!

0

4

Honda 16028-883-005

SEE PART DETAILS - SUP; SCREW SET B

Note: Use from Engine SN BB28B A.

$12.99

$

Usually ships in 3-6 days

0

5

Honda 16044-883-015

CHOKE SET

Note: Use from Engine SN BB28B A.

$36.99

$

Usually ships in 3-6 days

0

6

Honda 16100-887-663

SEE PART DETAILS - SUP; CARBURETOR ASSY.

Note: Use from Engine SN 1335196.

$

$

Currently unavailable

7

Honda 16155-883-005

SEE PART DETAILS - PRI; VALVE, FLOAT

Note: Use from Engine SN BB28B A.

$24.99

$

In Stock, only 1 left!

0

8

Honda 16166-883-005

SEE PART DETAILS - PRI; NOZZLE, MAIN

Note: Use from Engine SN BB28B A to BB28B A.

$11.99

$

Usually ships in 3-6 days

0

8

Honda 16166-883-005

SEE PART DETAILS - PRI; NOZZLE, MAIN

Note: Use from Engine SN BB28B B.

$11.99

$

Usually ships in 3-6 days

0

9

Honda 16211-887-000

INSULATOR, CARBURETOR

Note: Use from Engine SN 1335196.

$14.99

$

In Stock, only 1 left!

0

10

Honda 16212-887-306

SEE PART DETAILS - PRI; GASKET, INSULATOR

Note: Use from Engine SN 1335196.

$2.99

$

In Stock, only 1 left!

0

11

Honda 16221-883-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-887-800)

Note: Use from Engine SN 1335196.

$3.49

$

In Stock, Qty 12

0

11

Honda 16221-887-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

Note: Use from Engine SN 1335196.

$3.49

$

In Stock, Qty 12

0

12

Honda 16269-883-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER

Note: Use from Engine SN 1335196.

$1.99

$

In Stock, Qty 16

0

13

Honda 99101-124-0550

JET, MAIN (#55) Use from Engine SN BB28B A.

$10.99

$

In Stock, only 1 left!

0

13

Honda 99101-124-0580

JET, MAIN (#58) Use from Engine SN BB28B A.

$10.99

$

In Stock, only 2 left!

0

13

Honda 99101-124-0600

JET, MAIN (#60) Use from Engine SN BB28B A.

$11.99

$

In Stock, Qty 9

0

13

Honda 99101-124-0620

JET, MAIN (#62)

Note: Use from Engine SN BB28B A to BB28B A.

$10.99

$

In Stock, only 1 left!

0

13

Honda 99101-124-0650

JET, MAIN (#65)

Note: Use from Engine SN BB28B B.

$11.99

$

Usually ships in 3-6 days

0
