EG1400X A (GX110) - Honda Generator, Made in Japan (SN: GX110-1000001 - GX110-2454428) PISTON + RINGS + CRANKSHAFT Parts Diagram

Generator, Made in Japan

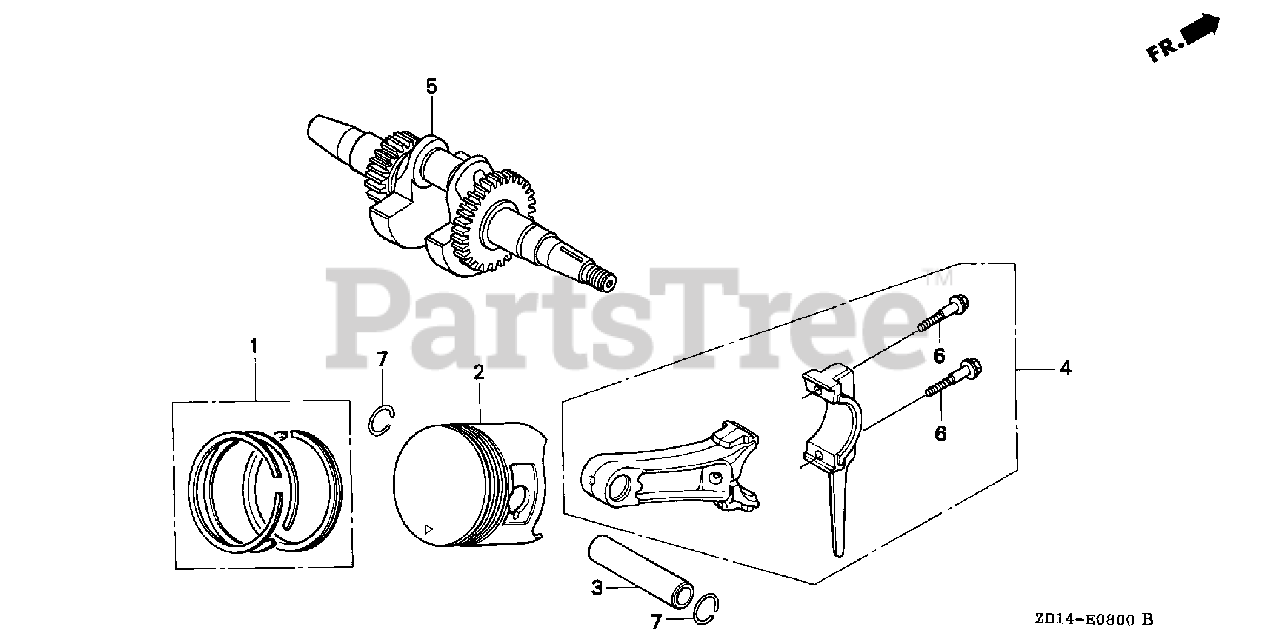

PISTON + RINGS + CRANKSHAFT Parts Diagram

  • Title

1

Honda 130A1-ZE0-003

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (NIPPON)
(Superseded to 13010-ZE0-013)

Note: Use up to Engine SN 1817922.

$36.99

$

Usually ships in 3-6 days

0

1

Honda 130A1-ZE0-004

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (TEIKOKU)
(Superseded to 13010-ZE0-013)

Note: Use up to Engine SN 1817922.

$36.99

$

Usually ships in 3-6 days

0

1

Honda 130A2-ZE0-003

SEE PART DETAILS - SUP; RING SET, PISTON (OVER SIZE) Use up to Engine SN 1817922.
(Superseded to 13011-ZE0-013)

$43.99

$

Usually ships in 3-6 days

0

1

Honda 130A2-ZE0-004

SEE PART DETAILS - SUP; RING SET, PISTON (OVER SIZE) Use up to Engine SN 1817922.
(Superseded to 13011-ZE0-013)

$43.99

$

Usually ships in 3-6 days

0

1

Honda 130A3-ZE0-003

SEE PART DETAILS - SUP; RING SET, PISTON (OVER SIZE) Use up to Engine SN 1817922.
(Superseded to 13012-ZE0-013)

$36.99

$

Usually ships in 3-6 days

0

1

Honda 130A3-ZE0-004

SEE PART DETAILS - SUP; RING SET, PISTON (OVER SIZE) Use up to Engine SN 1817922.
(Superseded to 13012-ZE0-013)

$36.99

$

Usually ships in 3-6 days

0

1

Honda 130A4-ZE0-003

SEE PART DETAILS - SUP; RING SET, PISTON (OVER SIZE) Use up to Engine SN 1817922.
(Superseded to 13013-ZE0-013)

$37.99

$

Usually ships in 3-6 days

0

1

Honda 130A4-ZE0-004

SEE PART DETAILS - SUP; RING SET, PISTON (OVER SIZE) Use up to Engine SN 1817922.
(Superseded to 13013-ZE0-013)

$37.99

$

Usually ships in 3-6 days

0

1

Honda 13010-ZE0-013

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (NIPPON)

$36.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZE0-013

SEE PART DETAILS - PRI; RING SET, PISTON (OVER SIZE)

$43.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZE0-013

SEE PART DETAILS - PRI; RING SET, PISTON (OVER SIZE)

$36.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZE0-013

SEE PART DETAILS - PRI; RING SET, PISTON (OVER SIZE)

$37.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZE0-000

SEE PART DETAILS - SUP; PISTON (STD)

Note: Use up to Engine SN 1817922.

$

$

Currently unavailable

2

Honda 13101-ZE0-010

SEE PART DETAILS - PRI; PISTON (STD)

$

$

Not available

2

Honda 13102-ZE0-010

SEE PART DETAILS - PRI; PISTON (OVER SIZE) (0.25)

$33.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZE0-010

PISTON (OVER SIZE) (0.50)

$

$

Not available

2

Honda 13104-ZE0-010

PISTON (OVER SIZE) (0.75)

$43.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZE0-000

PIN, PISTON

$8.49

$

In Stock, Qty 9

0

4

Honda 132A0-ZE0-000

ROD ASSY., CONNECTING

$125.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE0-000

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING
(Superseded to 13200-Z4H-900)

$41.99

$

In Stock, only 1 left!

0

5

Honda 13310-ZB0-000

CRANKSHAFT

$268.99

$

Usually ships in 3-6 days

0

6

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

$4.49

$

In Stock, only 3 left!

0

7

Honda 90551-ZE0-000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (13MM)

Note: Use from Engine SN 1621662.

$1.99

$

In Stock, Qty 20+

0

7

Honda 94601-13000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (13MM)

Note: Use up to Engine SN 1621661.

$0.99

$

Usually ships in 3-6 days

0
