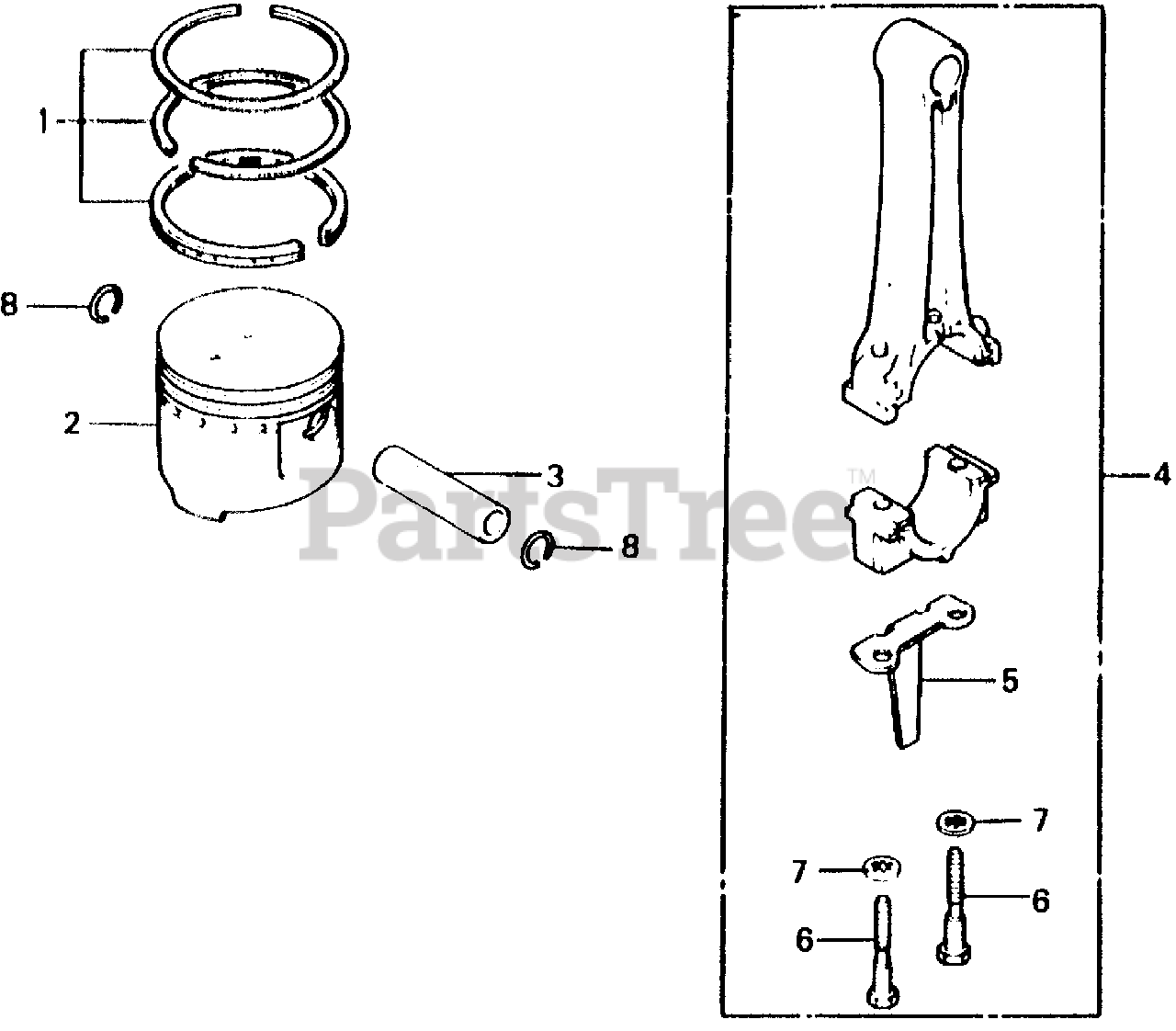

EG1400Z A (GE150) - Honda Generator, Made in Japan (SN: GE150-1000001 - GE150-9999999) PISTON + CONNECTING ROD Parts Diagram

Generator, Made in Japan

PISTON + CONNECTING ROD Parts Diagram

  • Title

1

Honda 130A1-ZA3-004

RING SET, PISTON (STD) (NOT AVAILABLE)

$

$

Currently unavailable

1

Honda 13011-ZA3-000

RING SET, PISTON (OS 0.25)

$

$

Not available

1

Honda 13012-ZA3-000

RING SET, PISTON (OS 0.50)

$26.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZA3-000

RING SET, PISTON (0.75)

$36.99

$

Usually ships in 3-6 days

0

2

Honda 13101-887-003

PISTON (STD)

$104.99

$

Usually ships in 3-6 days

0

2

Honda 13102-887-000

PISTON (OS 0.25) (OS)

$

$

Not available

2

Honda 13103-887-000

PISTON (OS 0.50) (OS)

$

$

Not available

2

Honda 13104-887-000

PISTON (0.75) (OS)

$

$

Not available

3

Honda 13111-883-000

PIN, PISTON

$12.99

$

In Stock, only 1 left!

0

4

Honda 13200-887-050

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING

$

$

Not available

4

Honda 13200-887-335

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING
(Superseded to 13200-887-506)

$91.99

$

Usually ships in 3-6 days

0

5

Honda 13281-887-020

DIPPER, CONNECTING ROD

$8.49

$

Usually ships in 3-6 days

0

6

Honda 90001-883-020

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD (7MM)

$4.99

$

Usually ships in 3-6 days

0

7

Honda 90432-889-003

WASHER, LOCK (7MM)

$1.99

$

Usually ships in 3-6 days

0

8

Honda 90551-883-000

SEE PART DETAILS - SUP; CLIP, PISTON PIN (15MM)
(Superseded to 94601-15000)

$1.49

$

Usually ships in 3-6 days

0

8

Honda 94601-15000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (15MM)

$1.49

$

Usually ships in 3-6 days

0
