EG1500 K3 A (G42) - Honda Generator, Made in Japan (SN: G42-2000001 - G42-2193508) EG 1500CYLINDER + CYLINDER HEAD K3 Parts Diagram

Generator, Made in Japan

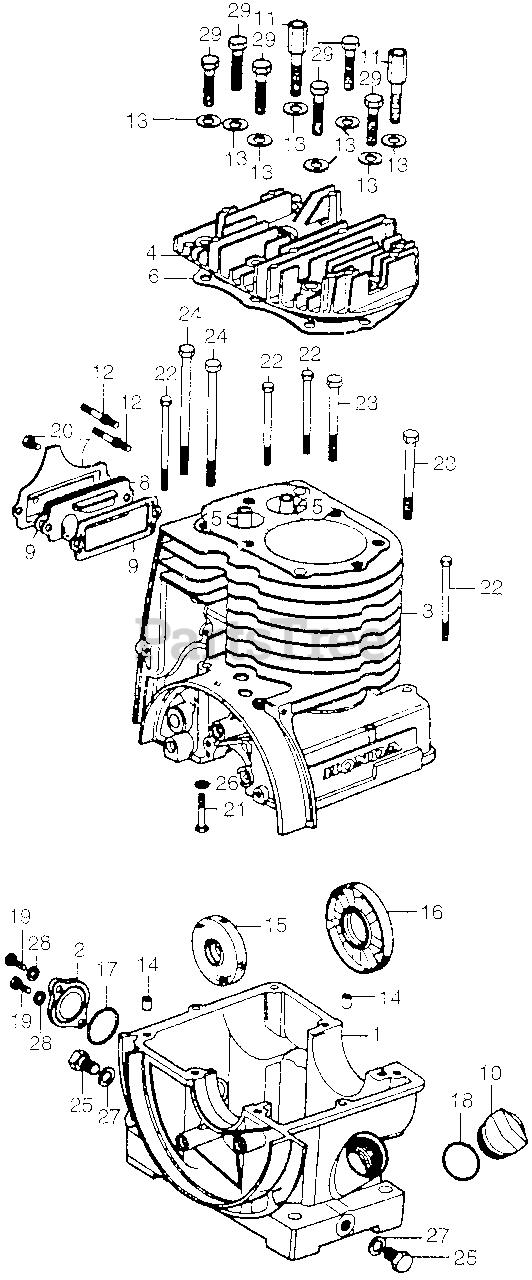

EG 1500CYLINDER + CYLINDER HEAD K3 Parts Diagram

  • Title

1

Honda 11200-865-000

PAN, OIL

$

$

Not available

2

Honda 11210-822-010

COVER, OIL PAN

$4.49

$

Usually ships in 3-6 days

0

3

Honda 12100-865-030

CYLINDER

$

$

Not available

4

Honda 12201-865-000

CYLINDER HEAD

$

$

Currently unavailable

5

Honda 12236-822-305

GUIDE, VALVE

$

$

Not available

6

Honda 12251-843-306

GASKET, CYLINDER HEAD

$37.99

$

Usually ships in 3-6 days

0

7

Honda 12361-865-010

COVER, TAPPET

$

$

Not available

8

Honda 12370-843-000

SEPARATOR, OIL

$

$

Not available

9

Honda 12372-822-306

GASKET, BREATHER CASE

$

$

Not available

10

Honda 15611-921-000

CAP, OIL

$15.99

$

Usually ships in 3-6 days

0

11

Honda 90001-822-000

BOLT, CYLINDER HEAD CLAMP

Note: Use up to Engine SN 2001782.

$

$

Currently unavailable

11

Honda 90001-865-000

BOLT, CYLINDER HEAD CLAMP

Note: Use from Engine SN 2001783.

$

$

Currently unavailable

12

Honda 90062-822-701

BOLT, STUD (8X39) (NOT AVAILABLE)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90402-822-000

WASHER, HEAD (8MM)

$1.99

$

In Stock, only 3 left!

0

14

Honda 90701-200-000

PIN, KNOCK (8.5X11) (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 91201-822-003

OIL SEAL (PJ20528)

$20.99

$

Usually ships in 3-6 days

0

16

Honda 91204-805-003

OIL SEAL (30X65X10) (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 91301-028-000

O-RING (27X2.0)

$4.49

$

Usually ships in 3-6 days

0

17

Honda 91305-KF0-003

O-RING (27X2.0)

$4.49

$

Usually ships in 3-6 days

0

18

Honda 91301-805-000

O-RING (26X2.7)

$5.99

$

In Stock, only 2 left!

0

19

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$2.49

$

In Stock, Qty 20+

0

21

Honda 92101-06032-0A

BOLT, HEX. (6X32)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 92101-06070-0A

BOLT, HEX. (6X70)

$3.49

$

Usually ships in 3-6 days

0

23

Honda 92000-08070-0A

BOLT, HEX. (8X70)

$

$

Currently unavailable

23

Honda 92200-08070-0A

BOLT, HEX. (8X70) (NOT AVAILABLE)

$

$

Currently unavailable

24

Honda 92000-08100-0A

BOLT, HEX. (8X100)

$

$

Currently unavailable

25

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 4 left!

0

26

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

27

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.99

$

In Stock, Qty 20+

0

28

Honda 94111-06000

WASHER, SPRING (6MM)

$1.49

$

In Stock, only 1 left!

0

29

Honda 95125-08036-00

SEE PART DETAILS - PRI; BOLT, HEX. (8X36) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable
